LISST-200X User’s Manual Appendix E: Connector Pinouts for LISST-200X Page 106

Appendix E: Connector Pinouts for LISST-

200X

The LISST-200X has 3 separate underwater connectors: A 5-pin, a 6-pin, and a 3-pin

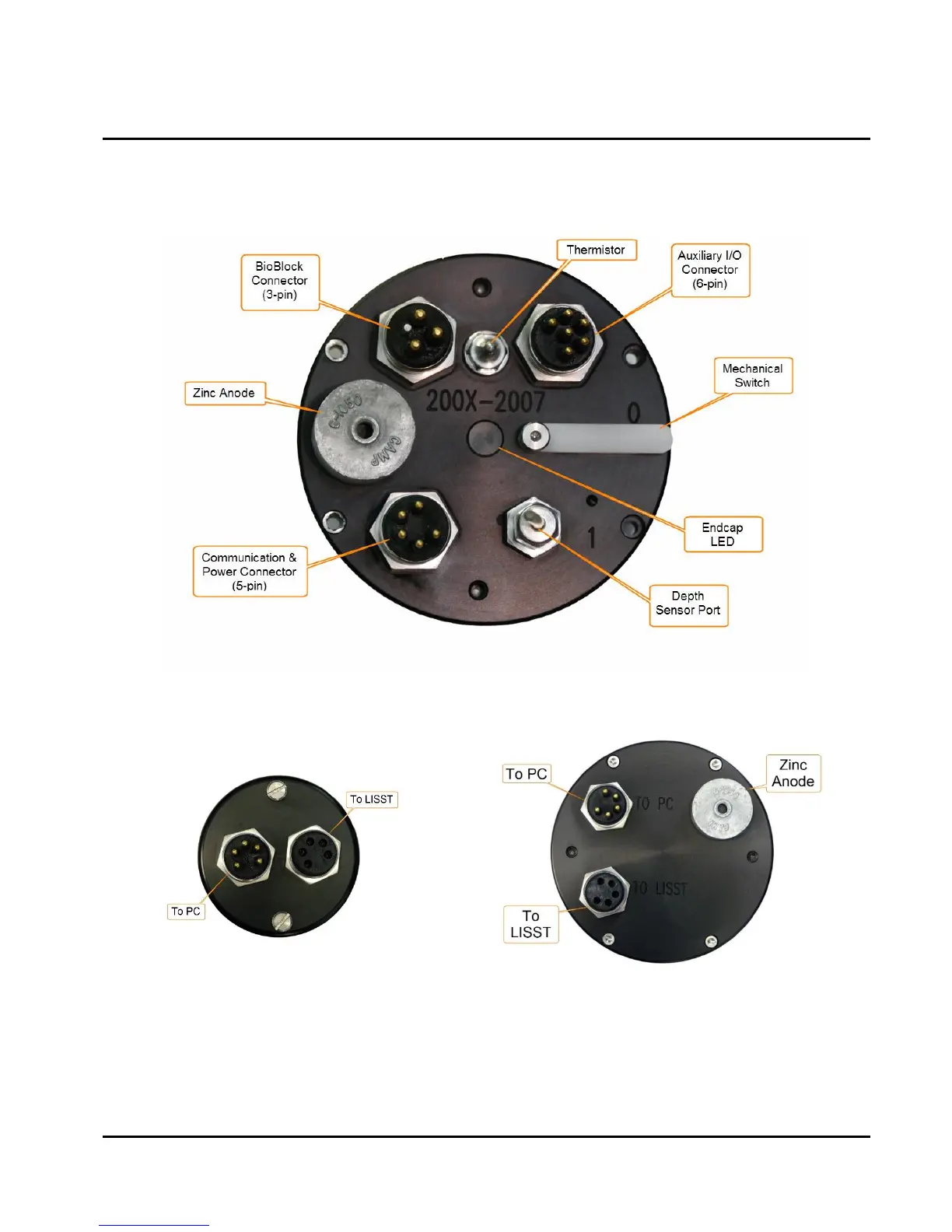

connector. The photograph shows the placement of each connector. The following text

describes the detailed wiring for each connector.

LISST-200X Connector Endcap

Small External Battery Pack

Large External Battery Pack
