LISST-200X User’s Manual Appendix E: Connector Pinouts for LISST-200X Page 107

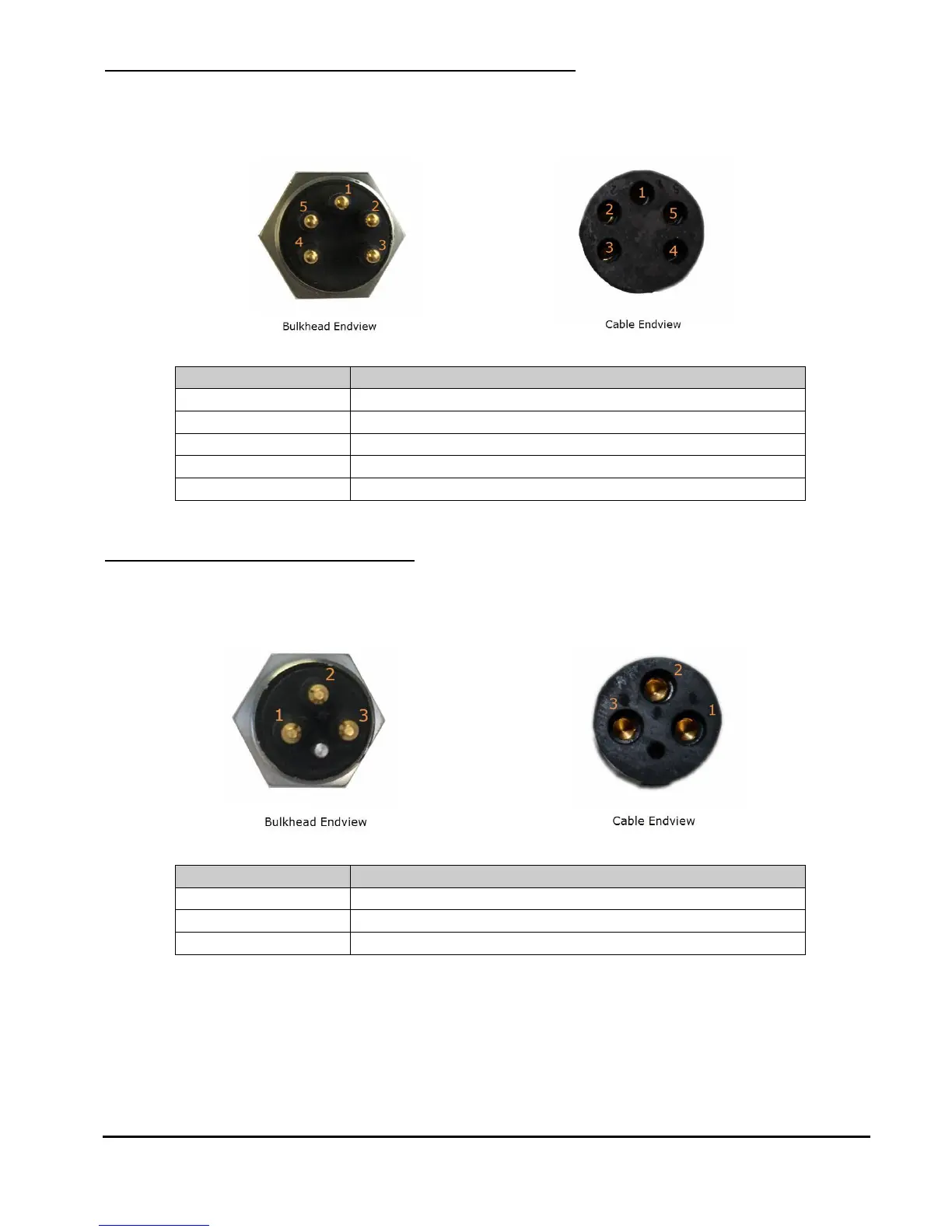

Communications and Power Connector (5 pin connector)
Connector Manufacturer: Teledyne Impulse, San Diego, CA, USA
Connector Part Number (Bulkhead): MCBH (WB)-5-MP Stainless Steel
Mating Cable Part Number: MCIL-5-FS
Connector Pin #
Use
1
Power/Serial Ground
2
External Power In (+9V nom. 6-15V)
3
Power/Serial Ground
4
Serial Out (to DB-9 Pin 2)
5
Serial In (to DB-9 Pin 3)
BioBlock Connector (3 pin connector)
Connector Manufacturer: Teledyne Impulse, Enterprise, Inc. San Diego, CA, USA
Connector Part Number (Bulkhead): MCBH (WB)-36-MP Stainless Steel
Mating Cable Part Number: MCIL-36-FS
Connector Pin #
Use
1
Signal Ground
2
Signal (Open/Closed)
3
Battery Sense
