Surface Readout Devices – Gauge Interface Specifications
SPS-3000
The Scout-3000 is our simplest gauge interface that provides Modbus slave polling via
RS-485, RS-422, and RS-232.

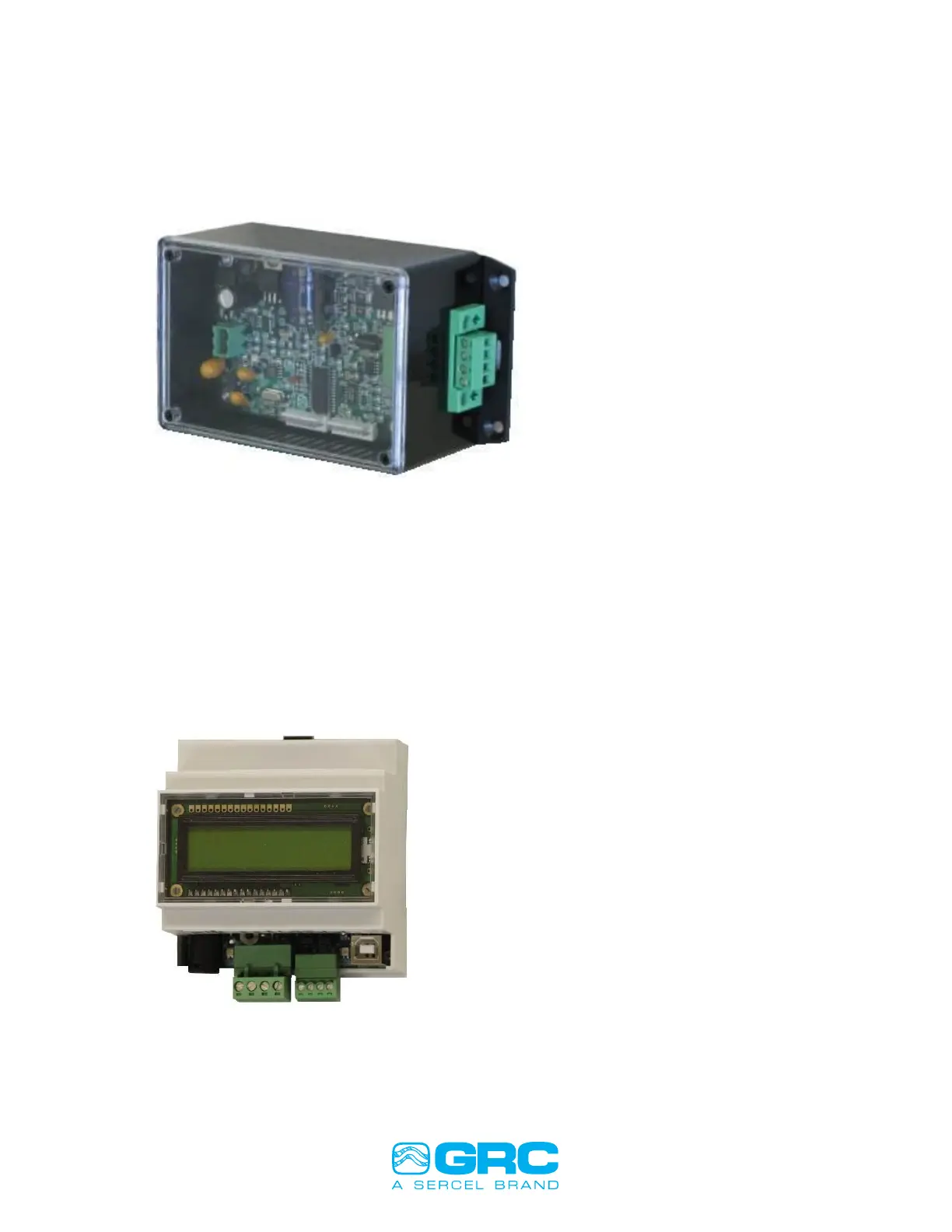

Figure 57. SPS-3000.
SPS-1500
The SPS-1500 includes a 2-Line Character LCD readout for display of real-time
downhole data. A USB interface is also supplied for Modbus via USB monitoring of the
downhole gauge. 24VDC is required to power the SPS-1500
Figure 58. SPS-1500
SPS-3000 Specifications:
 Low cost dust proof enclosure
 Single ESP gauge interface
 Modbus communication via RS485, RS-
232, RS422
 12-24VDC power required, 200mA
 Configurable via free Memory Tools
software
 Operating Temperature: -10ºC to +70ºC
SPS-1500 Specifications:
• Small footprint DIN rail mount enclosure
• Enclosure size: 3-1/2” x 3-1/2” x 2-1/2”
• 2-Line LCD display with scrolling update of downhole
sensor data
• 2 Multi-color displays for immediate communication
and downhole tool status
• Single ESP gauge interface with field replaceable
fuse.
• Modbus communication via RS485, RS-232, RS422
• USB available for downhole monitoring to PC
• 12-24VDC power required, 200mA
• Configurable via free Memory Tools software
• Operating Temperature: -10ºC to +70ºC
