INSTALLATION PROCEDURES FOR DOWNHOLE GAUGE
Installing the ESP Sensor to the Motor
This procedure outlines the best practices that should be taken in the field. The sensor
can be mounted to the motor before the motor is shipped to the field. In that case, the
procedure will be the same, but probably not done on the back of a flat bed trailer as
shown in these pictures.
1. Layout the sensor so that the three female connections on the Hockey puck
are aligned with the three pins coming out of the motor, and the holes on the
motor base are aligned with the holes on the motor head as shown in Figure 2.

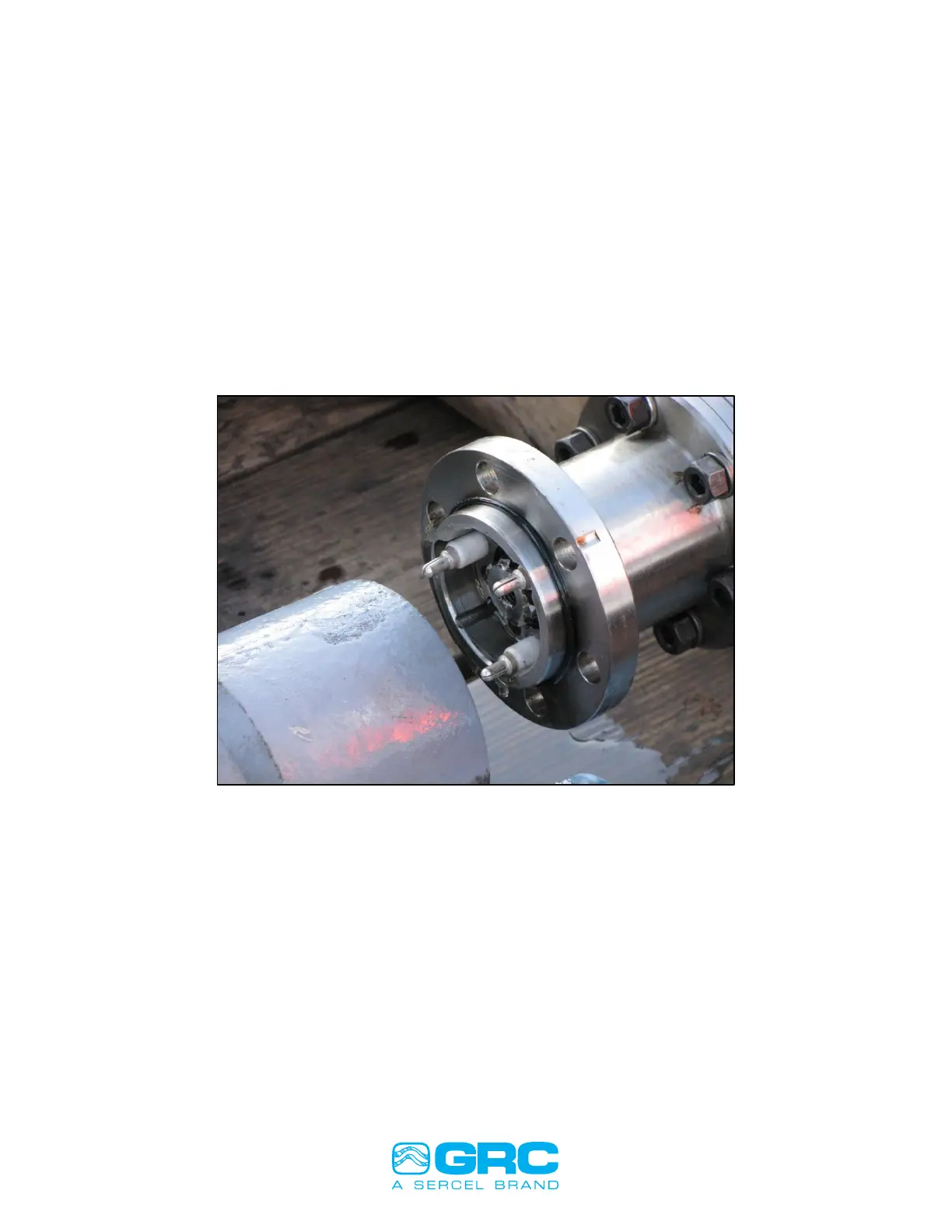

Figure 2. Aligning the motor pins to the Hockey puck.
2. Carefully stab the sensor onto the motor watching closely that the three pins
mate up with the three female connections on the hockey puck. IT IS VERY
IMPORTANT DURING THIS STEP YOU DO NOT TWIST THE SENSOR
WHILE STABBING ONTO THE MOTOR BASE. DOING SO WILL RESULT
IN DAMAGING THE HOCKEY PUCK AND RUINING COMMUNICATION TO
THE SENSOR ONCE THE MOTOR IS STARTED.
