Doc No. 006-0211-00 Rev AD Page 30 of 62
SOFTWARE AND FIRMWARE INSTALLATION AND UPDATES
Scout-3000 (for Rev. A Only)
Updating SPS Firmware Using Tera Term - TTermpro
Parts Required:
1. USB A-B CABLE
2. TTL CONVERTER
3. TTERMPRO UTILITY
Procedure:
1. Use USB A-B cable between computer and TTL converter.
2. Attach TTL converter to J3 (small ribbon cable is located on this header)
3. Open TTERMPRO
4. Select SERIAL BUTTON
5. DROP DOWN BOX and SELECT USB SERIAL PORT (See Figure 26)

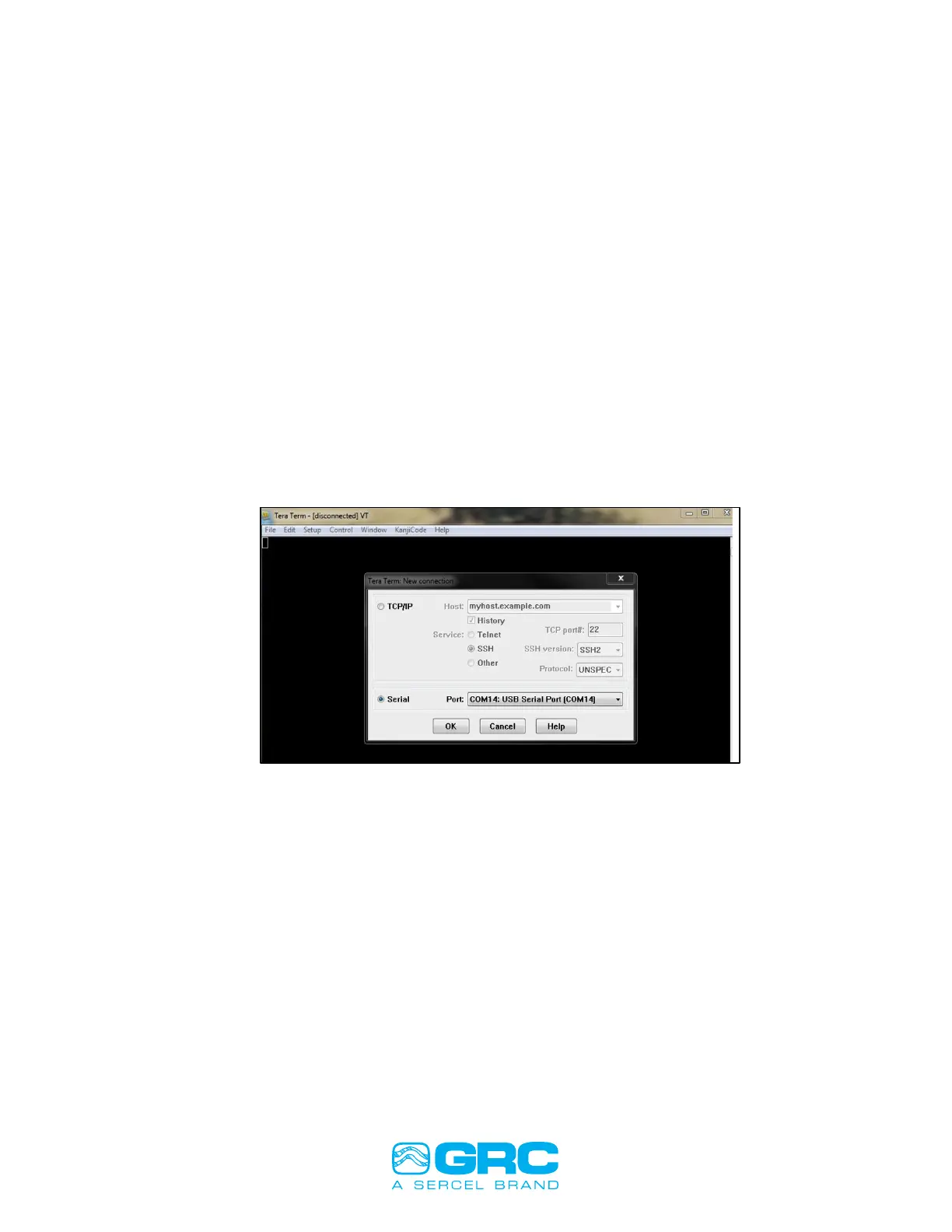

Figure 26. Select USB Serial Port.
6. OK
7. SETUP MENU then SERIAL PORT to check the SERIAL PORT SETTINGS. See Figure
27.
a. PORT: Select Com Port
b. DATA: 8 Bit
c. PARITY: NONE
d. STOP: 1 BIT
e. FLOW CONTROL: NONE
