Testing the ESP Sensor While Installing Tubing

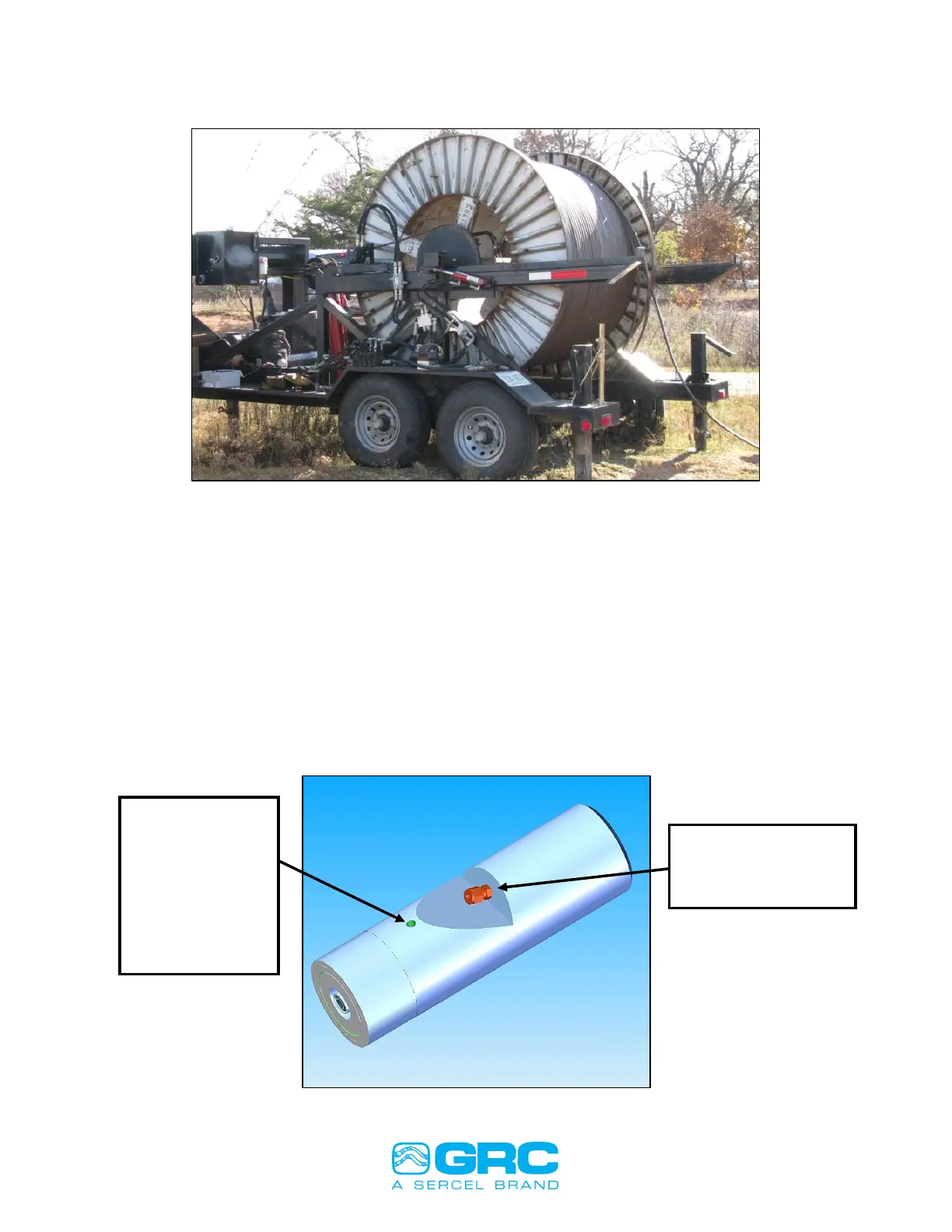

Figure 4. Spooling Unit.
Installing the Sensor Discharge Pressure Base Adapter (For
ESP& QESP-3500 Gauge Models Only)
Discharge Port Connection
All Dual Pressure gauges are equipped with a Discharge Pressure Port. The
Discharge Pressure Port must be purged with motor oil, vent plugged, and connected to
the hydraulic tubing connecting to the pump discharge sub before being deployed.
Failure to install the Discharge Bleed Plug will result in failure to read the discharge
pressure. See Installation and Troubleshooting guide for instruction to purge discharge
pressure port connections.
Figure 5. Discharge tubing connection.
Compression Fitting
1/8” NPT to ¼” inch
capillary tubing
Discharge
Pressure Bleed
Port Plug
Must be
INSTALLED
before running
gauge into the
well.
