Doc No. 006-0211-00 Rev AK Page 15 of 33
Discharge Port Connection (Spy Pro only)
Follow the steps below to attach the Discharge Port Tubing on the Spy Pro gauge.

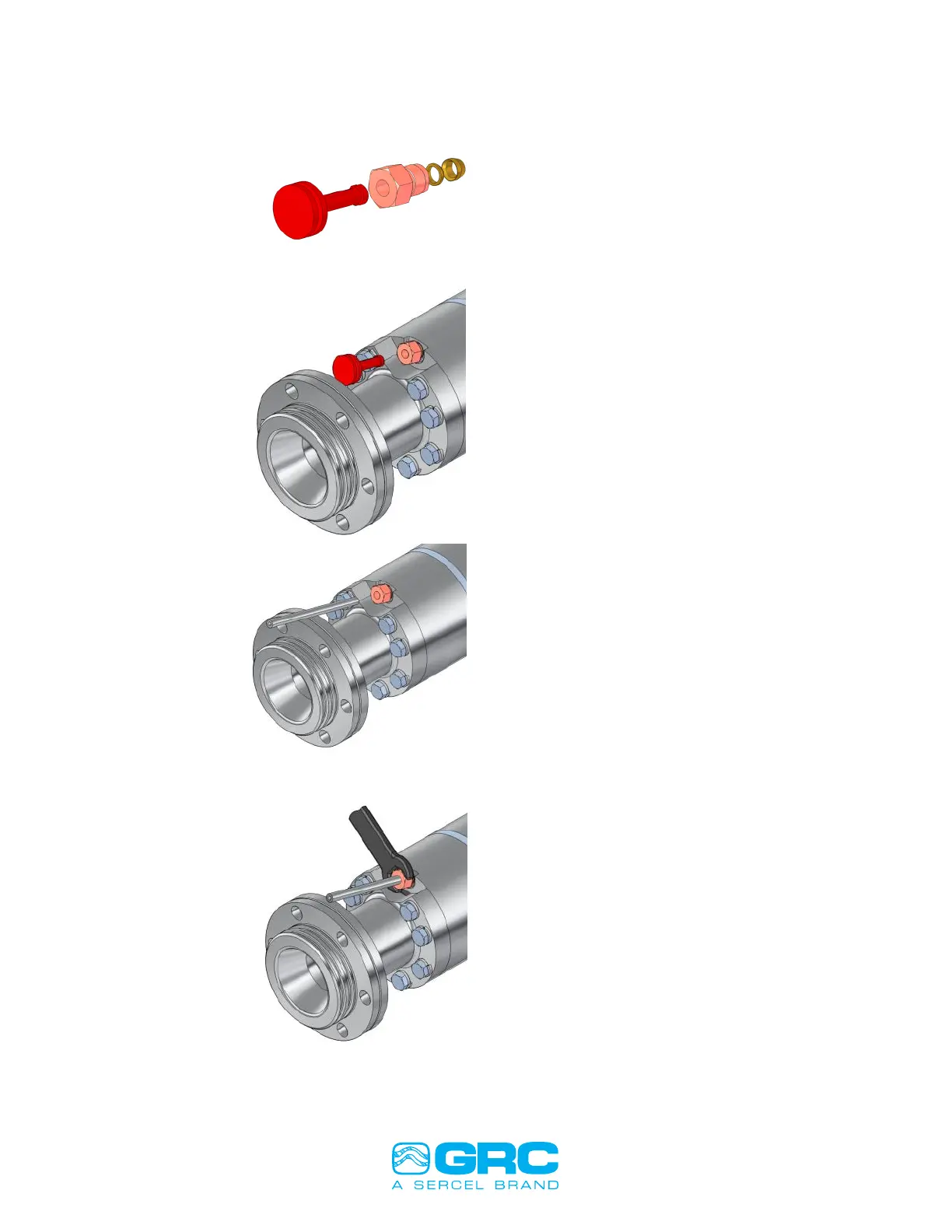

Illustration of plastic retainer and
Hydraulic fitting. Do not remove
the fitting. If removed, parts must
be placed in order.
Tighten fitting finger tight and
then remove plastic retainer.
Insert tube into fitting until firmly
seated against shoulder inside
pressure head.
Tighten nut to 25 ft•lbs. Or,
tighten nut finger tight, mark
the nut, and tighten nut one full
revolution.
Figure 14 Spy Pro Discharge Port connection
