Doc No. 006-0211-00 Rev AK Page 19 of 33

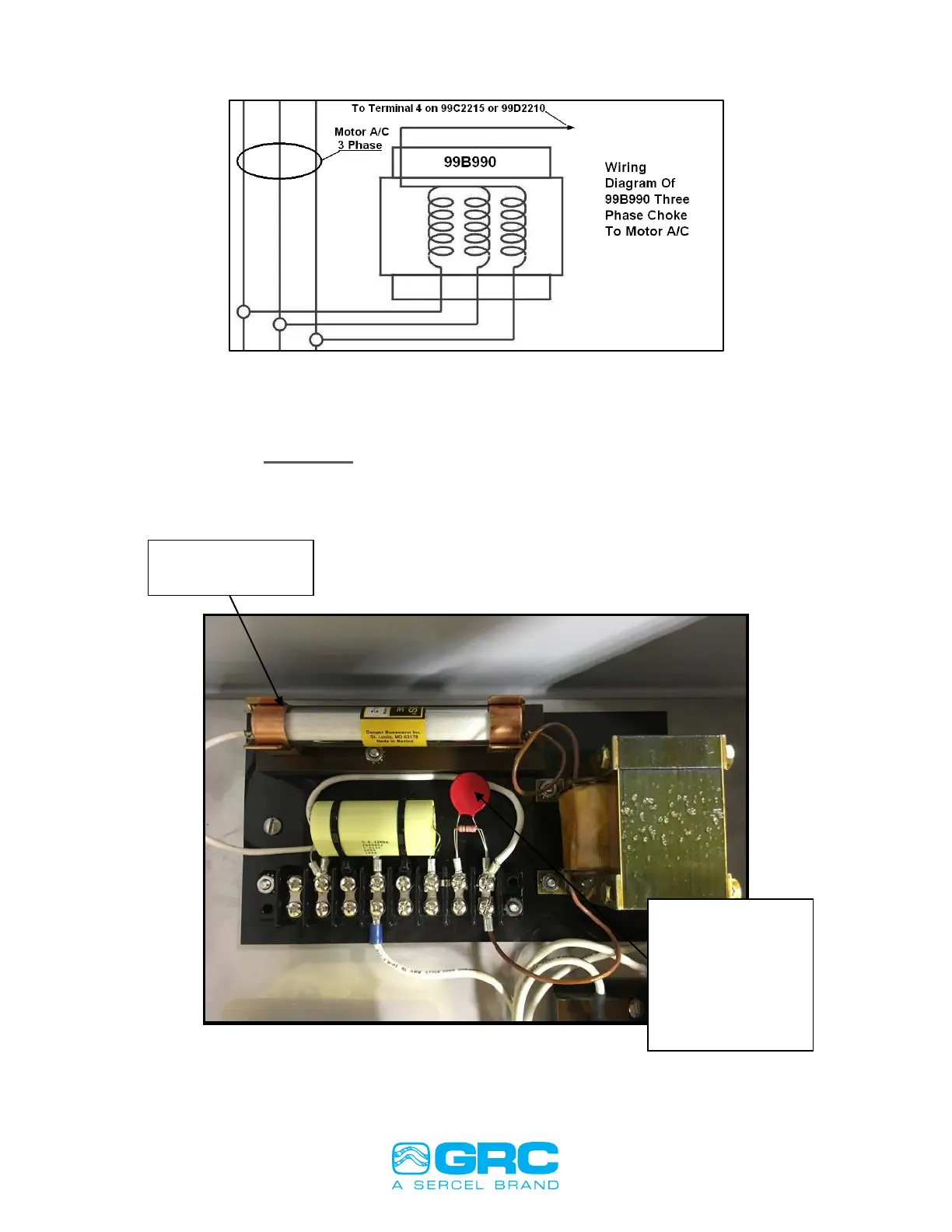

Figure 18: Three Phase Surface Choke Connections
Surge Panel Protector/Suppressor
The Surge Panel (FIGURE 19) provides protection for the ESP Surface Interface
equipment from several failures including; overvoltage from imbalance, transient voltage
pulses, and switching spikes.
Figure 19: Surge Protector
User Replaceable
1/2A HV Fuse
User replaceable
MOV and bleed
resistor–
Recommended
replacement
anytime fuse is
replaced
