Installation Instructions Section 2
2-6
Part Number 020005256 5/15
Incoming Water Supply Requirements
Manitowoc Beverage Equipment recommends that a
water shutoff valve and water filter be installed in the
incoming water supply line.
The incoming water source to the equipment shall be
installed with adequate backflow protection to comply
with applicable National, State, and local codes.
Water pressure should be a minimum of 45 psi or you
will starve the pump of water and damage it. The
maximum water pressure should be 55 psi or you will
affect the quality of the carbonation.
The carbonator pump should be located within 6 feet of
a 1/2 inch water source. A minimum 3/8 inch ID water
line must be used. Before connection the water source
should be flushed of approximately 5 gallons of water to
purge the system of any sediments, especially in areas
of new construction.
Location
Avoid placing the dispenser near heat sources such as
radiators, ovens, refrigeration equipment and direct sunlight.
Optimum Ambient Conditions are between 50°F and
95°F (10°C and 35°C).
Step by Step Installation
To properly install the Servend Drop-In, Use these guidelines:
• Meet all local code requirements.
• Have a receptacle with the proper voltage at the
installation site for connection to the Drop-In.
• Completely unpack the Drop-In, removing all padding
and shipping retainers.
• Route the beverage tubing from the syrup racks to
the location of the Drop-In.
• Make all beverage connections, if necessary, at the
syrup racks.
• Double check countertop cut out dimensions before
cutting countertop.

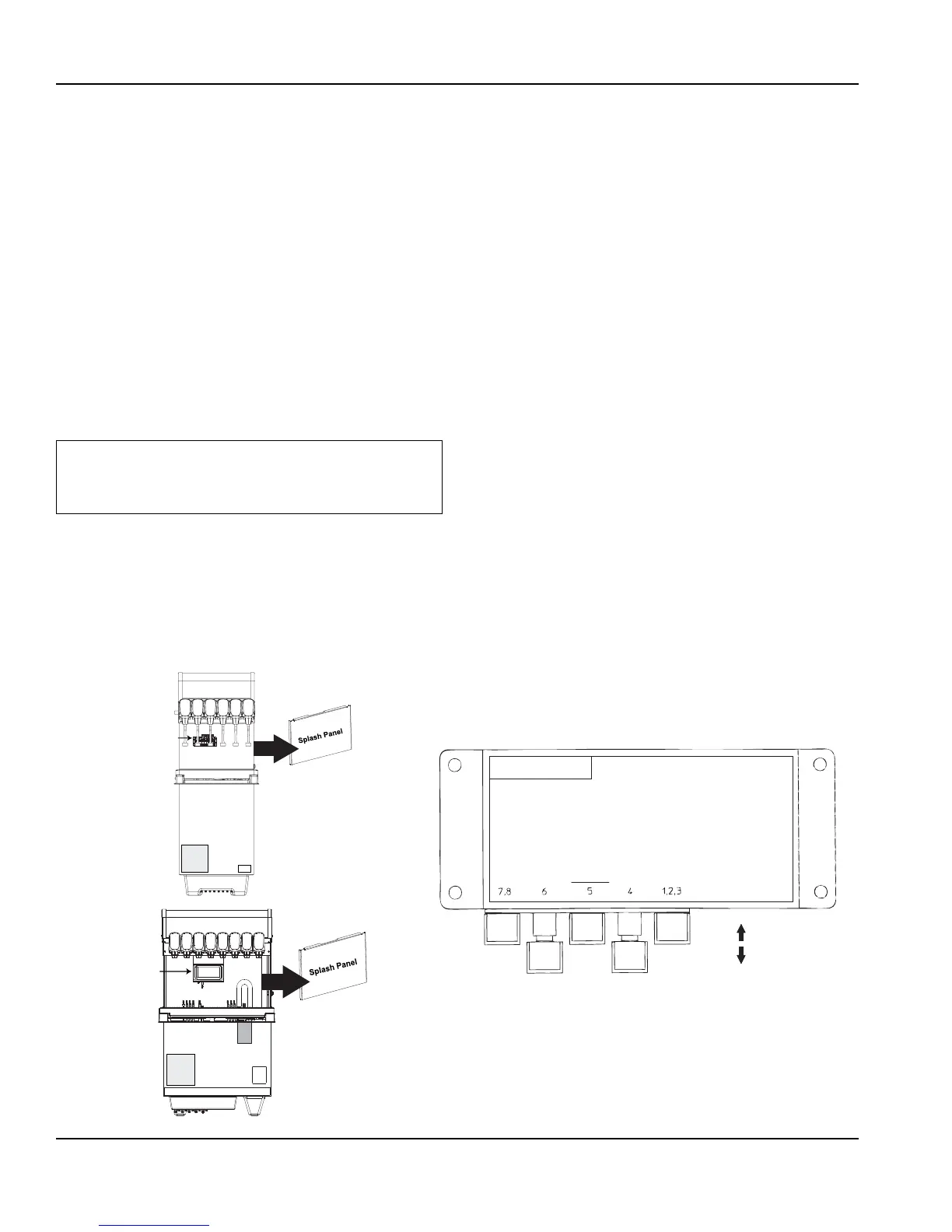

CARB/NON-CARB SETTINGS
Prior to placing the unit into the counter top it is recommended to make any carb/non-carb adjustments to the Flex
Manifold according to the provided beverage flavor line-up.
The unit must be sealed to the counter to comply with NSF
requirements.
Illustration above shows the Carbonated
position. Make adjustments using a 8 mm
wrench or socket. Turn 180° clockwise to switch
the beverage to Non-carbonated Water.
OPERATION:
MANIFOLD TO CHANGE TO CARBONATED
OR NON-CARBONATED WATER
VALVES
CARB
WATER
WATER/SODA
PLAIN
WATER
1) ROTATE PLUNGER 180
O
USING A 5/32”
ALLEN WRENCH
2) PULL PLUNGER OUT TO GET NON-CARB WATER.
PUSH PLUNGER IN TO GET CARB WATER
3) TURN PLUNGER BACK 180
O
TO LOCK
Flex Manifold
1522
Plumbing
Diagram
Plumbing
Diagram
Flex Manifold
2323
