Section 2 Installation Instructions
Part Number 020005256 5/15 2-9
PLACING THE UNIT
CT-6 & CT-8
1. Remove drain pan grid, splash panel and drain pan
before installation.
2. Pull aside all insulated beverage tubing from
openings in tower base to access tower mounting
holes. (See Foot Print)
3. Use a food grade sealant to seal all around bottom
perimeter of tower base and surface of counter top
(e.g., Dow Corning RTV 731).
4. Place tower on counter top over the pre-cut opening
and use screws or bolts to secure tower to the
counter top. (See Foot Print)
5. Place all insulated beverage tubing previously
removed back through openings in tower base and
opening in counter top.
6. Install lighted merchandiser per instructions shipped
with tower, route power cord down through tower
base and below counter top to tower’s electrical box.
(See Plumbing & Wiring)
7. Connect harness jumper wire from tower’s electrical
box to tower’s wiring harness.
8. Connect all necessary plumbing connections and
connect drain to tower. (See Plumbing & Wiring)
9. Install drain pan, splash panel and drain pan grid
onto tower. Be sure drain pan is properly located
over rubber drain funnel in tower base.
10. Connect tower’s electrical box power supply cord to
an electrical outlet.
11. Check tower’s beverage system and drain for leaks,
repair leaks if present.
NOTE: The tower must be sealed to the counter to
comply with the NSF International requirements.

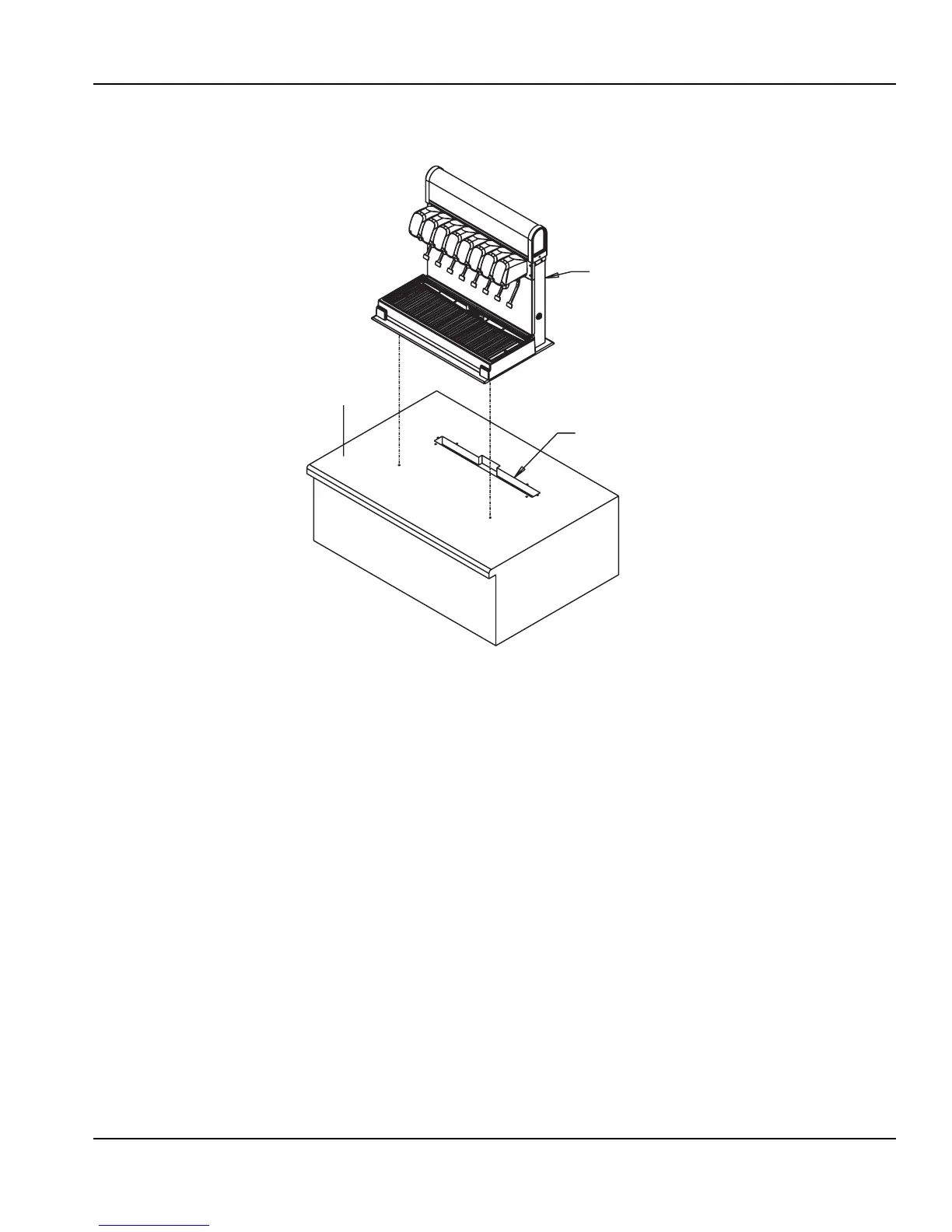

CT TOWER
PRE-CUT OPENING
COUNTER TOP
