Installation Instructions Section 2
2-8
Part Number 020005256 5/15
1. The CT-6 tower has (6) .250 inch diameter mounting
holes in the base.
2. Diameter of the 6 holes to be drilled in the
countertop depends on fasteners being used to
secure tower.
3. The correct counter top hole size if screws are used
is .125 inches.
4. The correct counter top hole size if bolts and nuts
are used is .250 inches.
CT-8
1. The CT-8 tower has (8) .250 inch diameter mounting
holes in the base.
2. Diameter of the holes to be drilled in the countertop
depends on fasteners being used to secure tower.
3. The correct counter top hole size if screws are used
is .125 inches.
4. The correct counter top hole size if bolts and nuts
are used is .250 inches.
23.25 in (59.1 cm)
15.25 in (38.7 cm)
11.25 in (28.6 cm)
4.75 in
(12.1 cm)
.75 in (1.9 cm)
3.25 in (8.3 cm)
1.75 in (4.4 cm)
1.563 in
(4.0 cm)
1.563 in (3.8 cm)
1.563 in
(4.0 cm)
1.468 in
(3.7 cm)
8.0 in (20.3 cm)
2.25 in
(5.7 cm)
2.5 in (6.4 cm)
22.5 in (57.2 cm)
.187 in
(.5 cm)
20.25 in (51.4 cm)

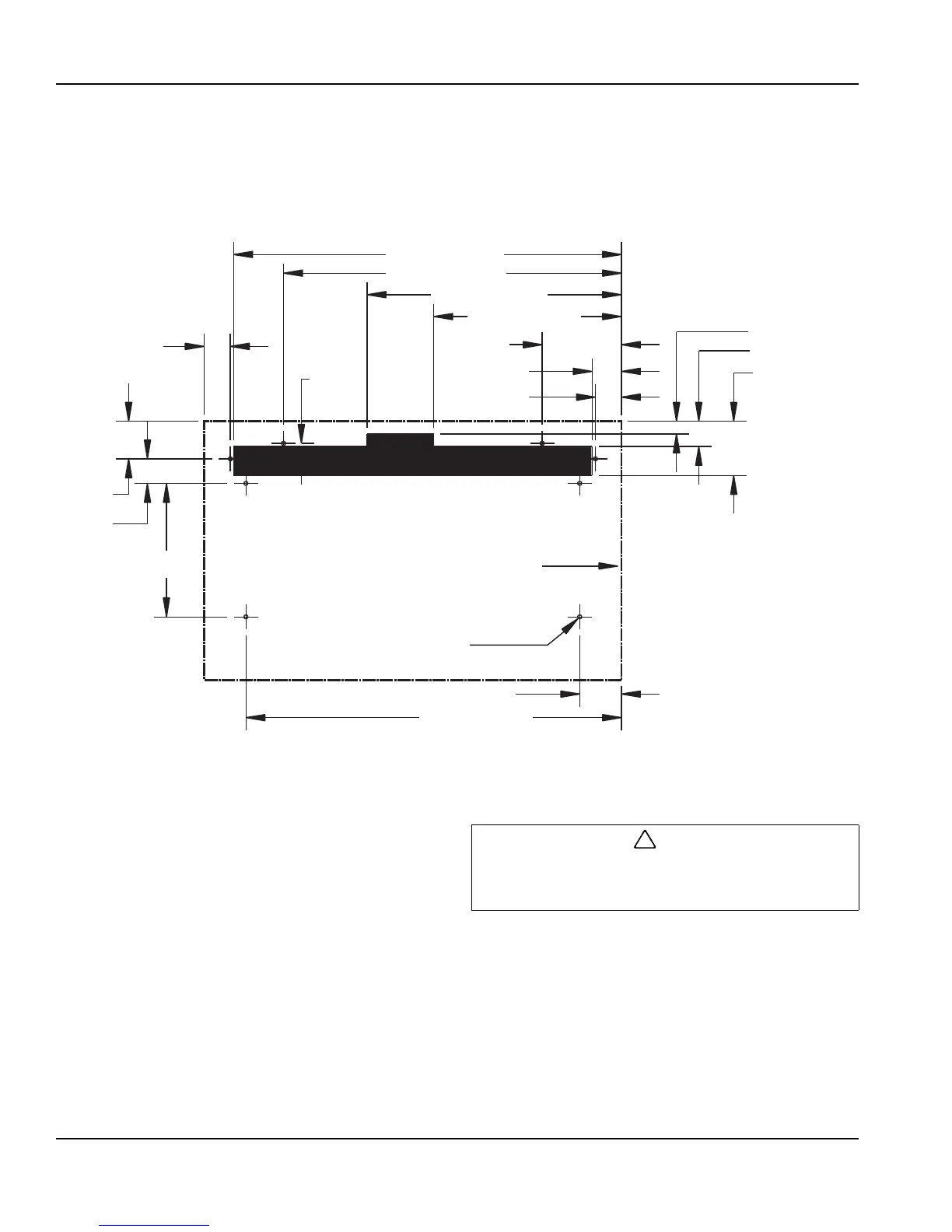

Perimeter of CT-8 Base
8 Holes (See Notes)
Cutting the countertop may decrease its strength. Counter
should be braced to support the dispenser countertop weight
plus ice storage capacity.
