Section 2 Installation Instructions
Part Number 020005256 5/15 2-11

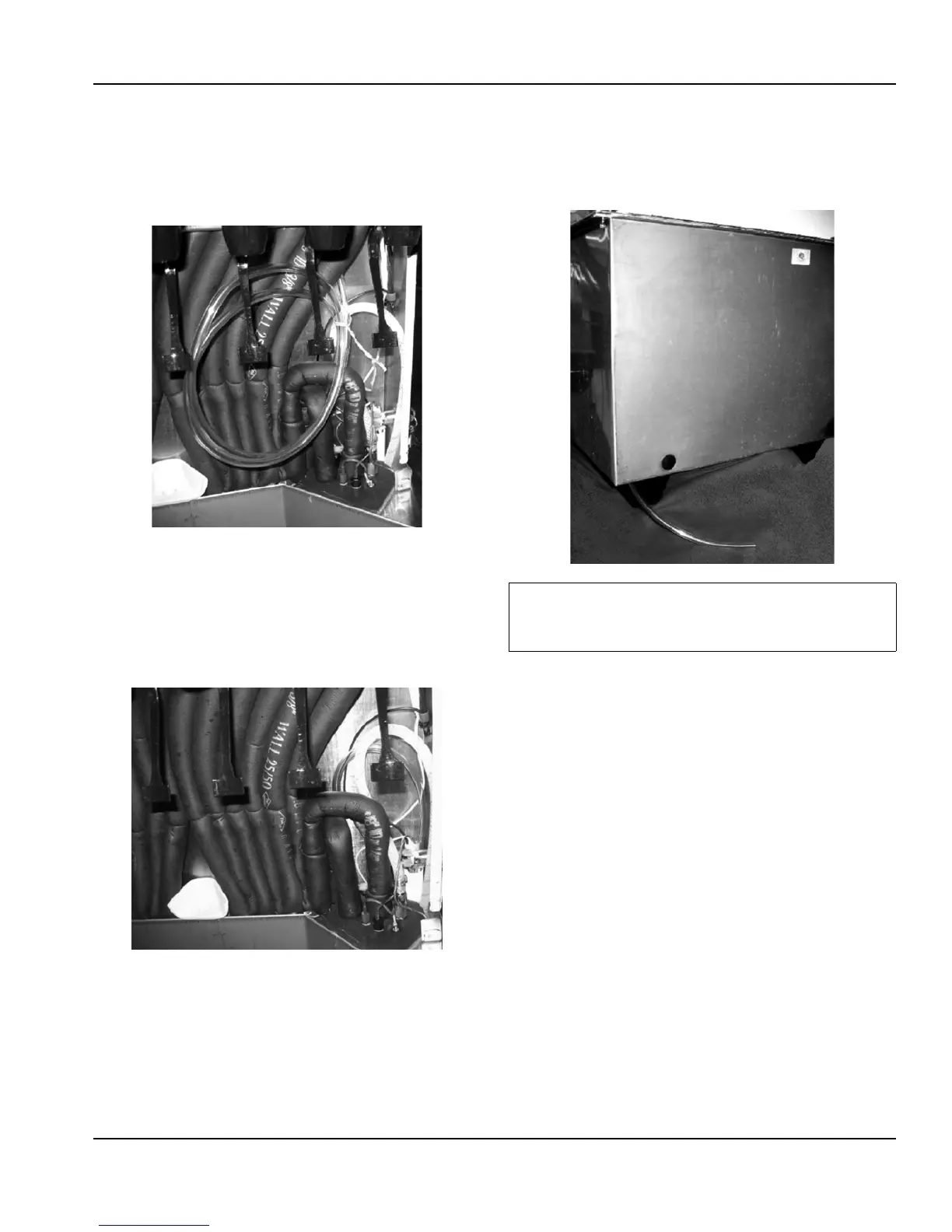

CARBONATOR PURGE TUBE ROUTING
1. During installation of unit the carbonator tank purge
tube (A) must be properly routed to a drain. Once the
splash panel has been removed from unit remove twist
tie (B) that holds carbonator tank purge tube.
2. Purge tube is connected to the pressure relief valve on
carbonator tank and must be routed to a drain. Route
carbonator tank purge tube (A) down through the valve
leads conduit, which is located behind the carbonator
tank. Be sure not to collapse or kink carbonator tank
purge tube during routing from unit to drain.
3. The carbonator tank purge tube (A) will be routed
down through the valve leads conduit and out
bottom of unit to a drain.
Follow all local and national plumbing codes when routing
carbonator tank purge tube to the drain.
