Installation Instructions Section 2
2-10
Part Number 020005256 5/15
DI-1522 & DI/DIL-2323

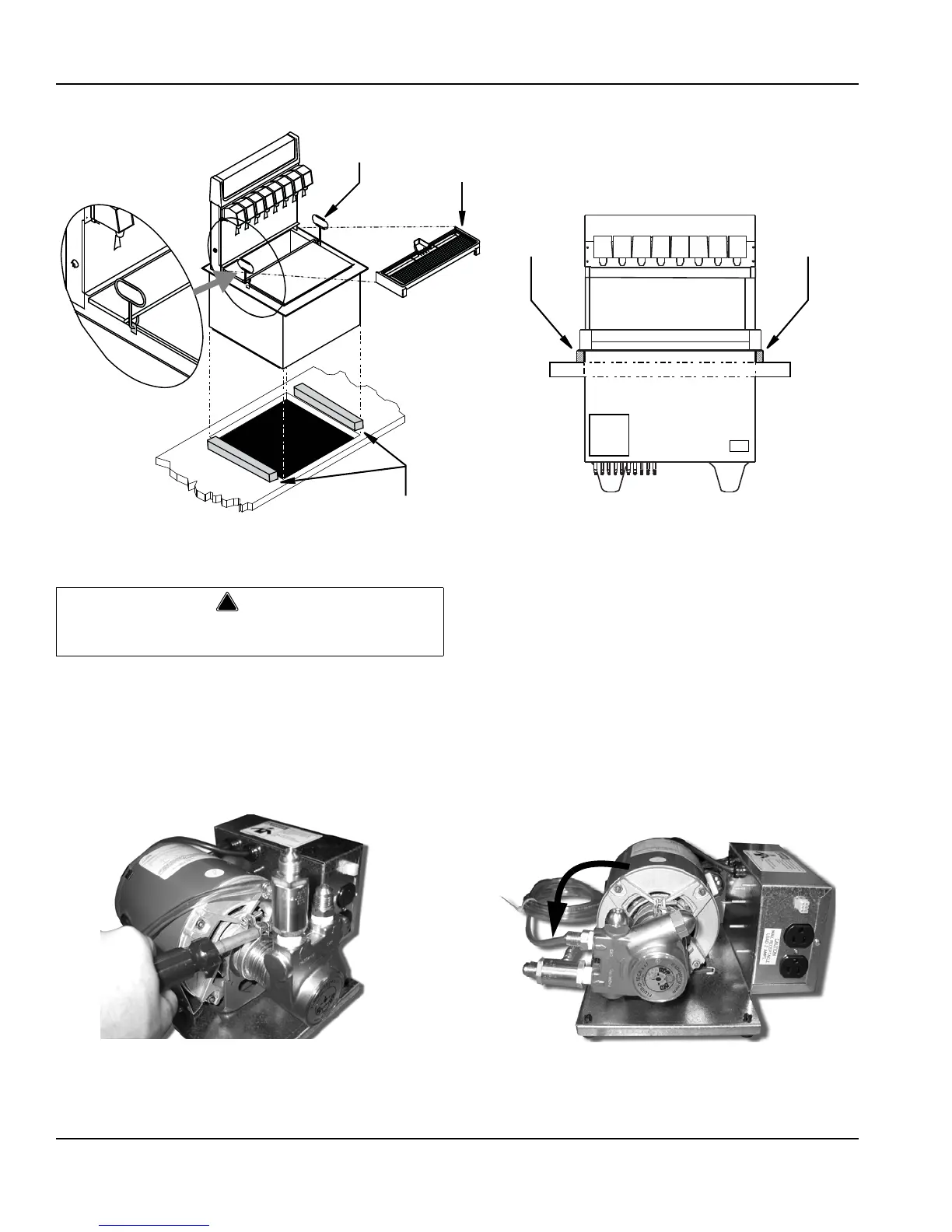

1. Set the Drop-In in place resting on the two blocks of
wood mentioned earlier.
2. Attach the drain lines to the drain connections at the
bottom rear of the chest. There is one drain for the drain
pan. Another drain fitting is provided for the ice chest,
these must be connected separately.
3. Check for leaks by pouring about one pint of cold
water into the drain pan and chest. Repair leaks if
any are found.
4. Route the clear carbonator tank purge tube from the
relief valve to a drain, See Carbonator Purge Tube
Routing Page 2 - 11.
Drop-In Stands
When installing a DI-1522IC in a stand it may be necessary to turn the pump head on the pump deck to allow room for
water line connections.
1. Loosen the clamp by turning the 5/16” screw. 2. Turn the pump to the position shown and secure in
place by re-tightening the clamp screw.
Drain Pan
Handles
(PN# 4340201)
Wood Blocks
C
u
t
O
u
t
A
r
e
a
Wood Block
Counter Top
Wood Block
Be careful not to pinch fingers under the edges of the unit
when lowering into place.
To Next Page
