Installation Instructions Section 2

2-12

Part Number 020005256 5/15

PLUMBING DIAGRAMS

Install the beverage tubing to the appropriate fittings, internally the unit is pre-plumbed. Refer to the plumbing diagram

cold plate drawing on the front of the chest for your individual set up.

NOTE: The water supply must first be connected to the

carbonator pump (not shown) before plumbing to

connections “A” shown on the plumbing diagram. The

carbonator pump deck must be within six feet of the

dispenser for optimum performance. (See BIB

installation diagram for system pressure settings.)

NOTE: The CO

2 connection for the internal carbonator is

located with the coldplate connections. (See Plumbing

Diagram.) Check valve must be installed to plain water

connection “B”. Contact factory if not installed.

CT-6 Post-mix

CT-6 with Variety Valve

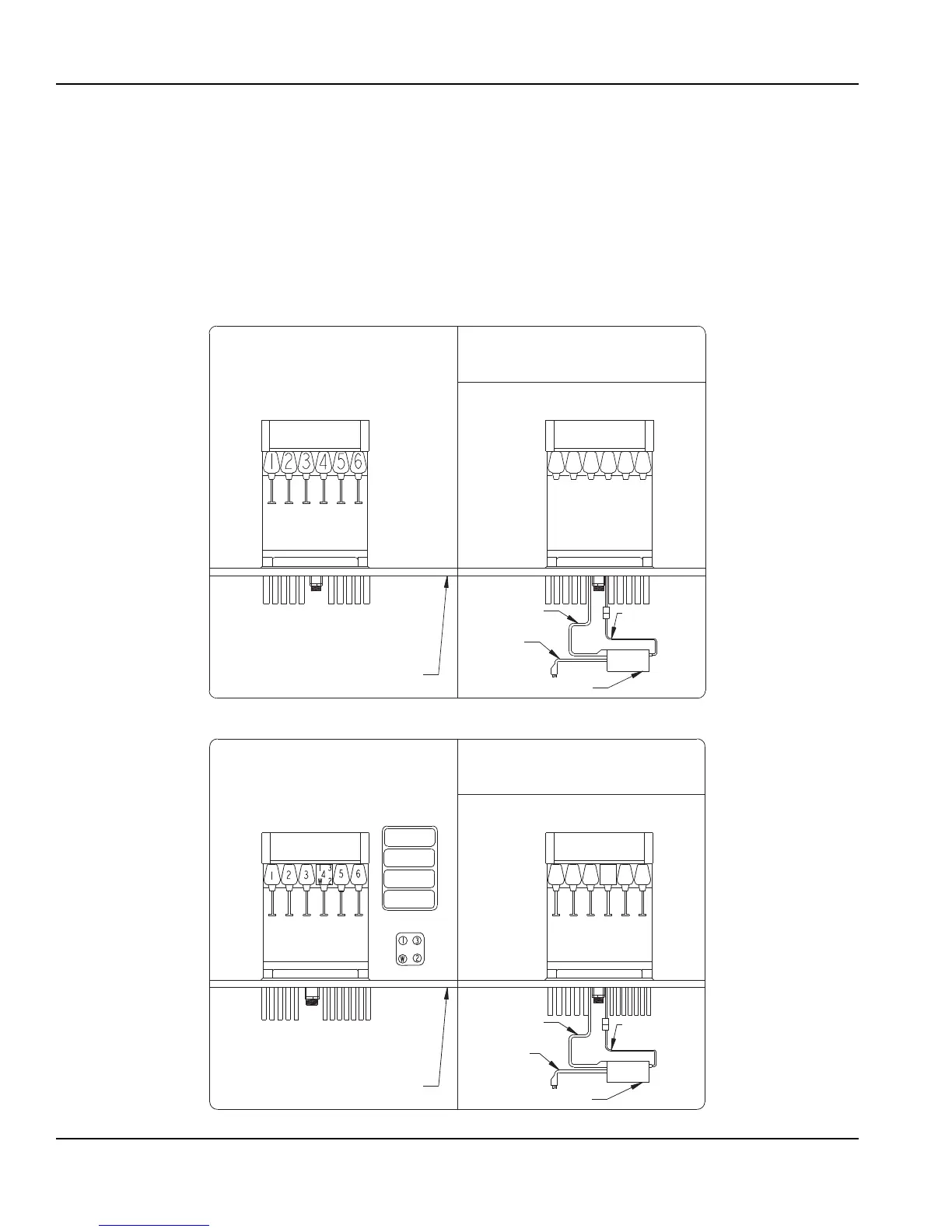

CT-6 RECOMMENDED PLUMBING

2-1-1-2 PLUMBING CONFIGUREATION

CT-6 WIRING DIAGRAM

COUNTER

TOP

5029318-0

SYRUP 1

SYRUP 2

SYRUP 3

SYRUP 4

SYRUP 5

SYRUP 6

UNIT DRAIN

CARB. OR PLAIN WATER

LIGHTER MERCH.

POWER CORD

ELECTRICAL BOX

VALVE JUMPER

HARNESS

CAUTION

ELECTRICAL SHOCK HAZARD

DISCONNECT POWER BEFORE SERVICING

CT-6 RECOMMENDED PLUMBING

2-1-1-2 PLUMBING CONFIGUREATION

CT-6 WIRING DIAGRAM

COUNTER

TOP

VARIETY VALVE

BLOCK

W-WATER

(THRU COLD PLATE)

3-SYRUP

(#4-3 AMBIENT)

2-SYRUP

(#4-2 THRU COLD PLATE)

1-SYRUP

(#4-2 AMBIENT)

*OPTIONAL*

VARIETY VALVE

ON VALVE 4

020003552-0

SYRUP 1

SYRUP 2

SYRUP 3

SYRUP 4-1

SYRUP 4-2

SYRUP 4-3

SYRUP 5

SYRUP 6

UNIT DRAIN

CARB. OR PLAIN WATER 1 & 2

CARB. OR PLAIN WATER 3

CARB. OR PLAIN WATER 4

CARB. OR PLAIN WATER 5 & 6
