Section 2 Installation Instructions
Part Number 020005256 5/15 2-3

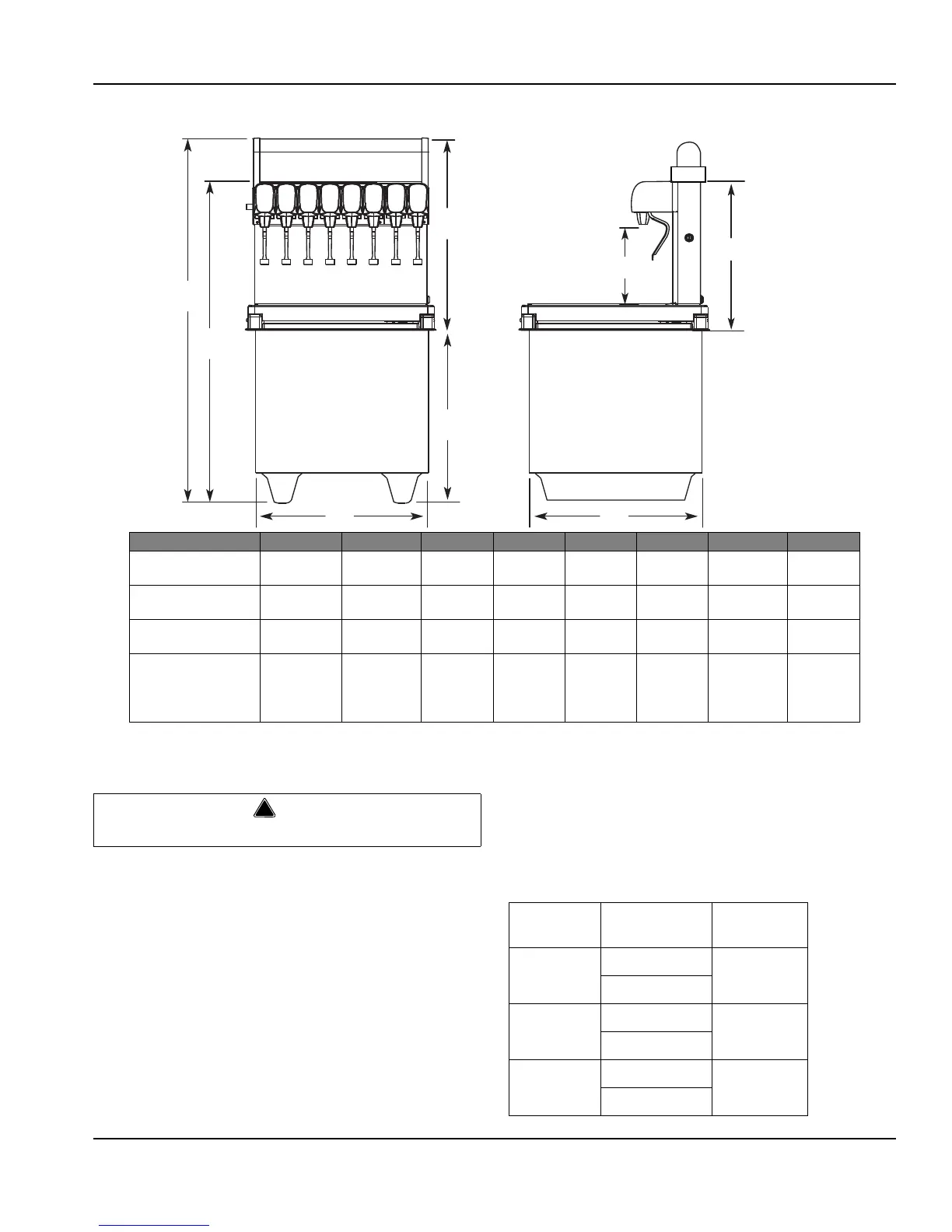

UNIT DIMENSIONS
ELECTRICAL
General
Minimum Circuit Ampacity
The minimum circuit ampacity is used to help select the
wire size of the electrical supply. (Minimum circuit
ampacity is not the beverage/ice machine’s running amp
load.) The wire size (or gauge) is also dependent upon
location, materials used, length of run, etc., so it must be
determined by a qualified electrician.
Electrical Requirements
Refer to Machine Model/Serial Plate for voltage/
amperage specifications.
Voltage
The standard voltage for CT, DI, & DIL dispensers is
120VAC-60Hz 1 Ph. A power cord is provided with
120VAC-60Hz models only. 220/240 Volts - 50 Hz - 1 Ph,
208/230 Volts - 60 Hz - 1 Ph are also available.
Minimum Circuit Amperage Chart
MODEL A B C* D E F G H
CT-6 N/A N/A
9.50"
(24.2 cm)
14.25"
(36.2 cm)
17.00”
(43.2 cm)
16.38"
(42.8cm)
N/A
22.50”
(57.2 cm)
CT-8 N/A N/A
9.50"
(24.2 cm)
15.50"
(39.8 cm)
25.00”
(63.5cm)
23.75"
(60.4cm)
N/A
22.85”
(58.1 cm)
DI-1522
44.38”
(112.8 cm)
38.38"
(97.5cm)
9.50"
(24.2 cm)
15.00"
(38.2 cm)
22.38”
(56.9 cm)
16.38"
(42.8cm)
23.54”
(59.80cm)
22.00"
(55.9 cm)
DI/DIL-2323
56.75”
(144.2cm)
46.75"
(118.8cm)
9.50"
(24.2 cm)
23.00"
(58.5 cm)
22.75”
(57.78cm)
16.88"
(42.9cm)
DI = 18.00”
(45.72cm)
DIL= 21.50”
(54.61cm)
23.00"
(58.5 cm)
All wiring must conform to local, state and national codes.
Dispenser Voltage/Cycle
Circuit
Amps
DI-1522,
CT-6
120/60
2.4
220/50
DI/DIL2323,
CT-8
120/60
3.2
220/50
Pump Deck
120/60
8.0
220/50
To Next Page
