INTERNAL
CARBONATOR
TANK
(OPTIONAL)

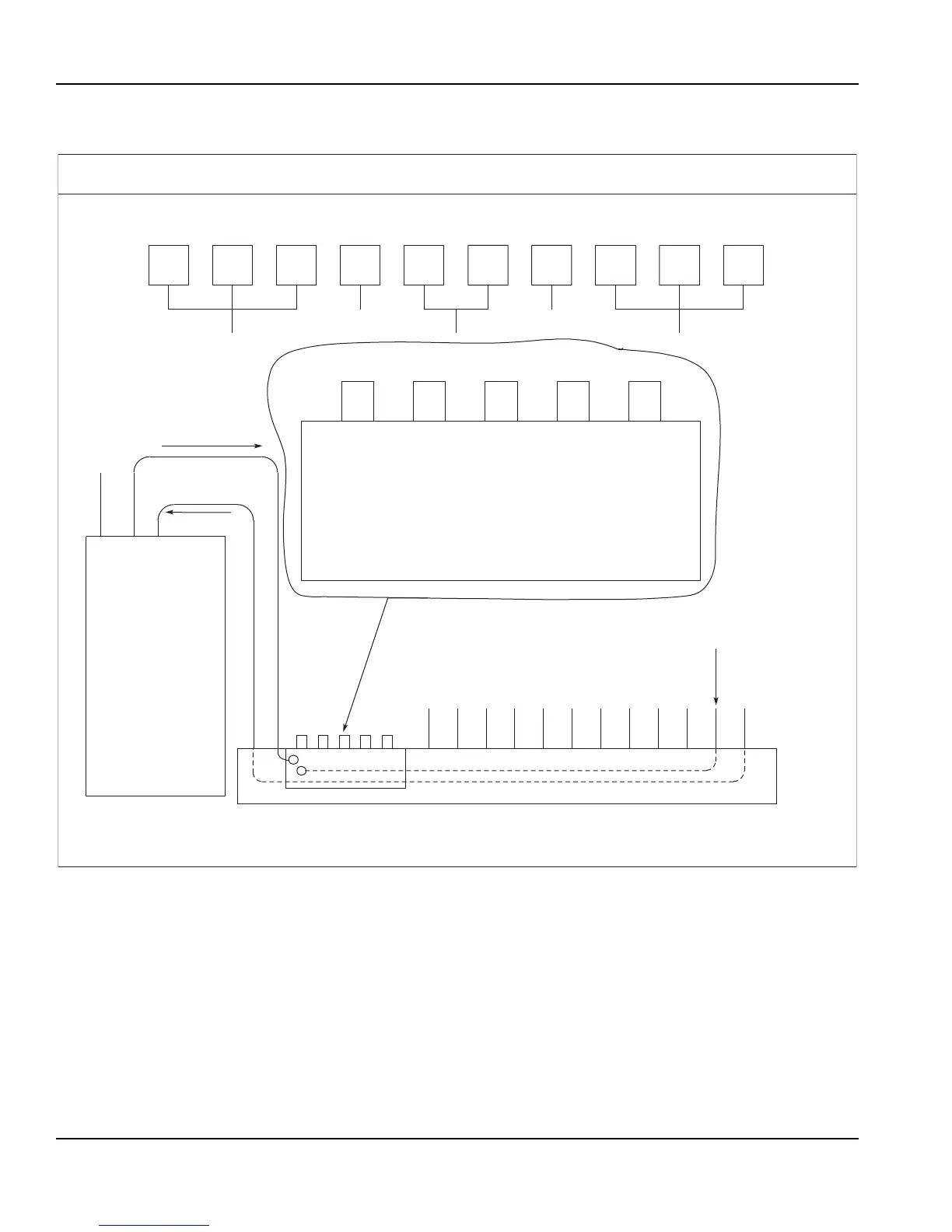

PLUMBING: 3-1-2-1-3 MANIFOLDING
PRE-CHILL OUT
TO CARBONATOR
876543
321
1, 2, 3 4 5, 6 7
VALVES
CIRCUITS
CO
2
Manifold: Change to carbonated or non-carbonated water.
1. Rotate plunger 180° using a 5/32" Hex Key wrench.
2. Pull plunger up to get non-carbonated water.
3. Push plunger down to get carbonated water.
4. Turn plunger back 180° to lock.
Plain Water
(Plain Water Supply)
CARBONATOR OUT
TO POST-CHILL
Plain Water
(From Pump
to Carbonator)
1
Syrup Lines
COLD PLATE
FOR ASSISTANCE CALL (812) 246-7000
21
3
8, 9, 10
NOTE: SYRUP LINES NOT SHOWN
10 9
VALVES
#1 #2 #5 #6 #7 #8 #9 #10#3 #4
