SELECTABLE ICE CRUSHER
Once the ice crusher hub assembly has been removed
the crusher is ready to be cleaned and sanitized. Follow
the steps below for proper cleaning and sanitizing
procedures.
1. Assure the unit is unplugged.
2. Mix a solution of mild detergent to clean the ice
crusher components.
3. Using the mild detergent solution and a soft bristle
brush or clean cloth, clean the following ice crusher
components.
• Blade / Hub assembly
• Cosmetic Chute
•Drip Pan
• Crusher Housing
• Ice Crusher Motor Shaft
•Ice Door
• Crushed Ice Door
4. Rinse all of the parts with clean water.
5. Prepare 2 gallons of sanitizing solution by mixing a
½ ounce of household bleach (that contains 5.25%
sodium hypochlorite) with 2 gallons of 120 F water.
The mixture should not exceed 100 PPM of chlorine.
Or mix a solution of any approved sanitizer,
following the directions for mixing and applying the
sanitizer.
6. Apply sanitizer to all parts with clean cloth, or by
spraying.
7. Allow to air dry. DO NOT RINSE.
8. Reassemble the Ice Crusher Assembly by following
the instructions in the "Reassembling the Ice
Crusher Assembly" section.
REASSEMBLE THE ICE CRUSHER ASSEMBLY
1. Insert the blade assembly into crusher housing.
When inserting blade assembly you must align the
stationary blades with the locating slots in the
crusher housing.
2. When inserting the blade assembly into the crusher
housing you must also make sure the axle knob is in
a vertical position. This will align the rotating blades
with the housing to assure a quick and easy
installation.
3. Once all blades are in the housing you will need to
align the crusher axle with the motor shaft. You can
do this by turning the axle knob and pushing the
blade assembly toward the motor until the crusher
hub is flush with the end of the housing.
4. To lock the blade assembly into the housing rotate
the crusher hub counter clockwise until the locking
tab snaps into place and the crusher hub is secure.

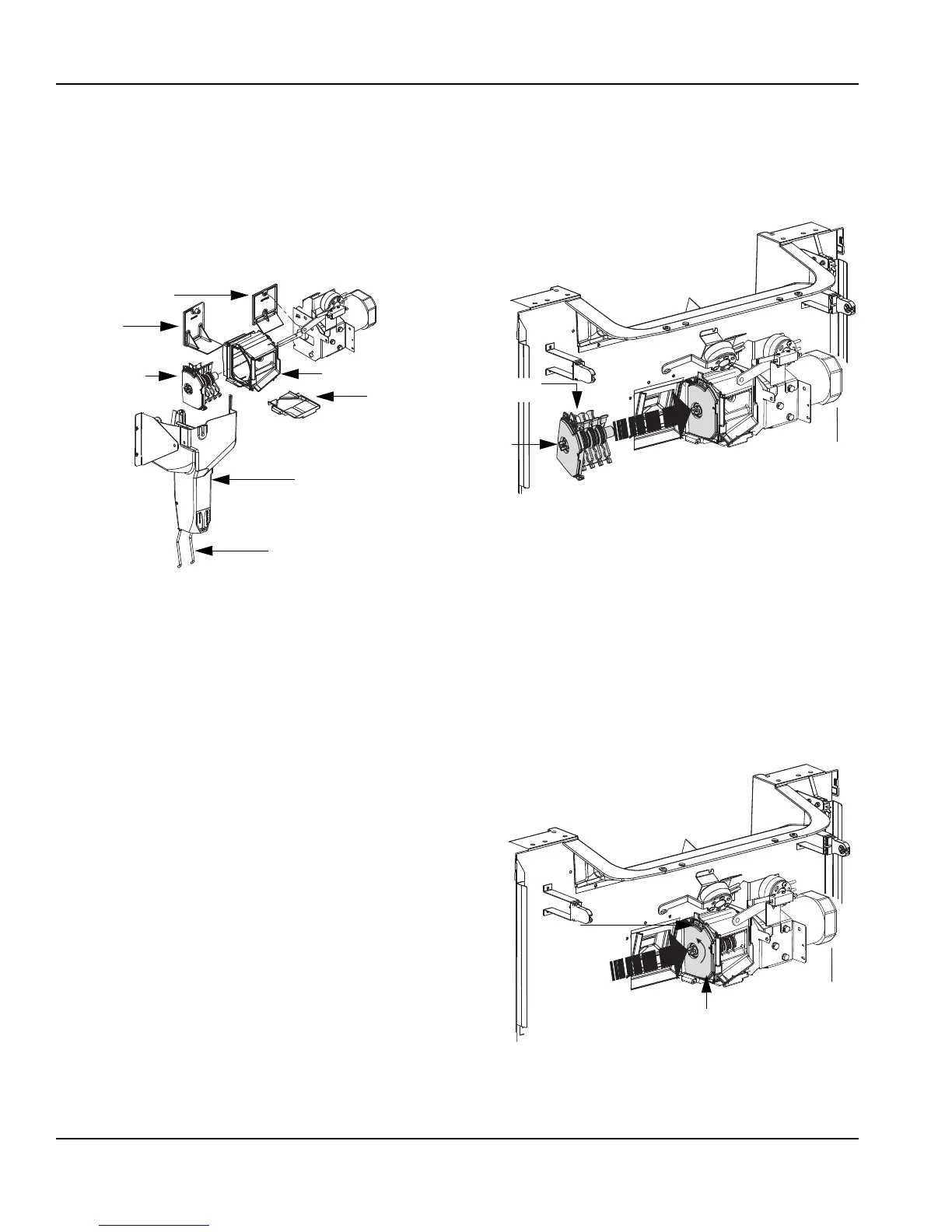

Crusher Housing
Crushed Ice Door
Hub Blade
Assembly
Drip Pan
Decorative Chute
Sanitary Lever
Ice Door
Hub/Blade
Assembly
Axle
Knob
Hub/Blade
Assembly
Locking
Tab
