Section 4 Maintenance
Part Number 020003997 4/12 4-3
Disassembly
FOR CLEANING & MAINTENANCE
NOTE: Sanitize the ice dispenser at Initial Start-up in addition
to monthly sanitizing. You will need a slotted screwdriver in
order to disassemble.

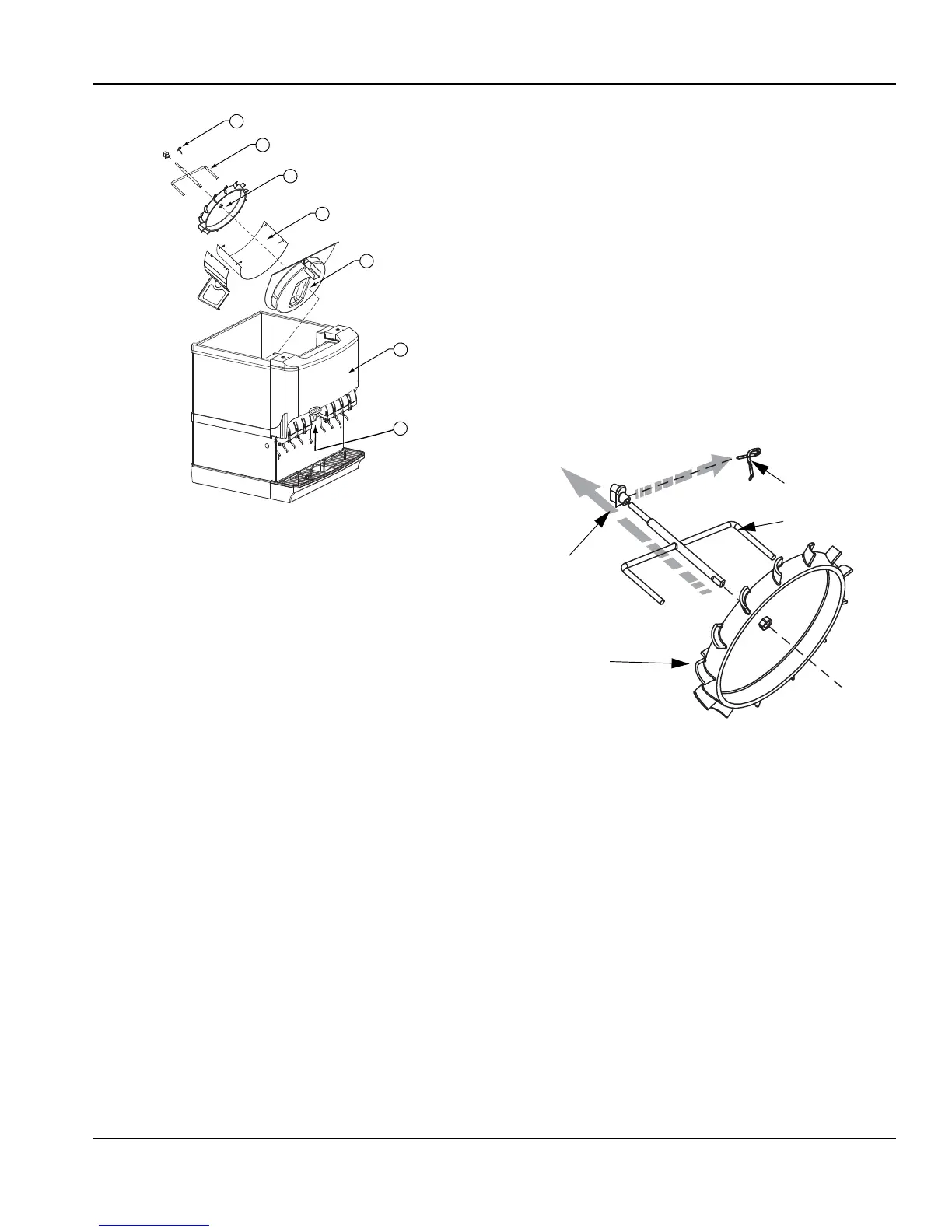

Disassemble parts in the following order:
A. Merchandiser
B. Selectable Ice chute
C. Hitch Clip Pin
D. Agitator
E. Paddle wheel
F. Bin liner
G. Paddle wheel area
Accessing a Dispenser Bin Top Mounted with a Manitowoc
ice machine:
1. Remove the front panel of the ice machine.
2. Remove the ice deflection baffle. This will give you
access to the dispenser bin.
3. If the Manitowoc ice machine is operating, wait for the
sheet of ice to fall into the dispenser bin.
When the ice sheet falls into the dispenser bin, immediately
place toggle switch of the ice machine to the OFF position. If
the Manitowoc ice machine is NOT operating, place the toggle
switch of the ice machine to the OFF position.
4. On models without a top mounted ice machine, remove
the plastic lid from the top of the dispenser.
5. Remove all ice from the dispenser.
6. Disconnect electrical power to the dispenser.
7. Remove agitator arm and paddlewheel pin.
Front Serviceable Motor
a. With agitator arm in any position remove hitch clip pin
from the mushroom bushing on the rear of the ice
bin.
b. Push the agitator bar toward the bushing to remove it
from the paddle wheel hub.
NOTE: If a top mount ice machine is installed, sliding the ice
machine to one side will make bin component removal easier.
If the ice machine is hard plumbed it will need to be
disconnected.
Front Serviceable
8. Remove paddle wheel, bin liner and paddle wheel area.
9. Move the front of the agitator to one side and slide the
agitator forward until the rear of the agitator shaft is clear
of the bushing.
10. Remove the agitator from the bin area.
11. Slide the paddle wheel from its shaft.
12. Loosen 4 knurled fasteners that hold the bin liner in place.
13. Remove the bin liner.
14. Remove the paddle wheel area from the bin.
15. Discard the remaining ice in the bin.
A
G
F
E
C
D
B
Hitch Clip Pin
Agitator Bar
Paddle Wheel
Mushroom
Bushing
To Next Page
