Installation Instructions Section 2
2-12
Part Number 020003997 4/12
CO
2
Supply

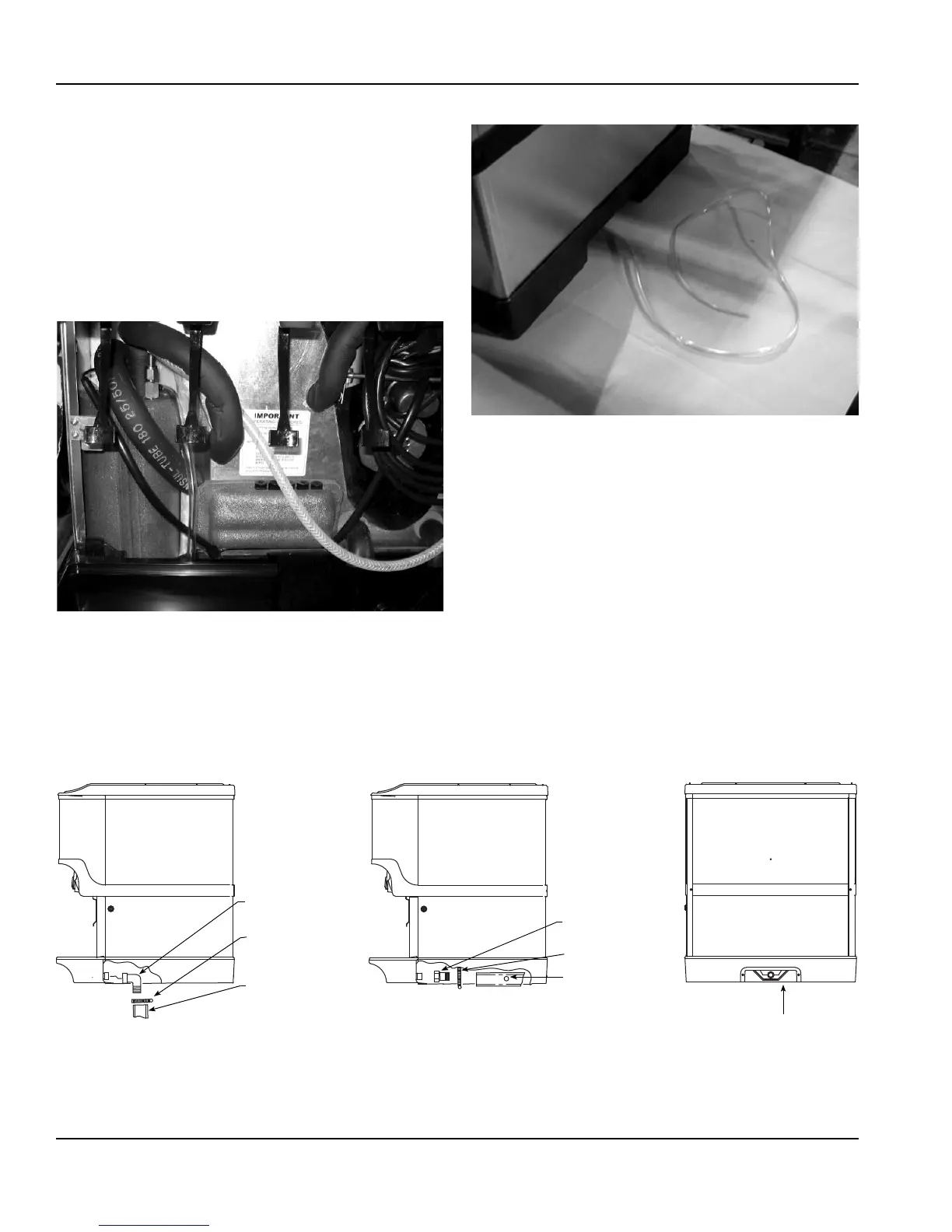

ROUTING INTERNAL CARB TANK PURGE TUBE
Some models are equipped with an internal carbonation
tank. These models require that the purge/pressure
relief tubing be routed to a drain.
1. Remove the splash panel.
2. Uncoil tubing and route between the front of the
dispenser and the drain pan.
3. Depending on drain location route the tubing
through the tubing bundle cutout or out the back of
the dispenser.
4. Verify the tubing is not kinked and then secure
tubing to maintain a minimum 1" (2.5 cm) air gap at
the drain. Follow any applicable local or national
codes.
Drains
SV Series dispensers drain through a double connection to the drain pan.
Pressure
Relief
Drain Pan
SV-200 & 250
90° Elbow Fitting
Radiator Clamp
Flexible Tubing
Straight Fitting
Radiator Clamp
Flexible Tubing
Rear Access for Drain
Hose and Beverage Lines
Drainage Through Bottom Drainage Through Back Rear View
