Servend SV-200 SCI - General

Part Number 020003997 4/12 2-1
Section 2
Installation Instructions
General
These instructions are provided to assist the qualified
installer. Contact your Manitowoc Beverage Equipment
Service Agent or call Manitowoc Beverage Equipment
for information regarding start-up services.

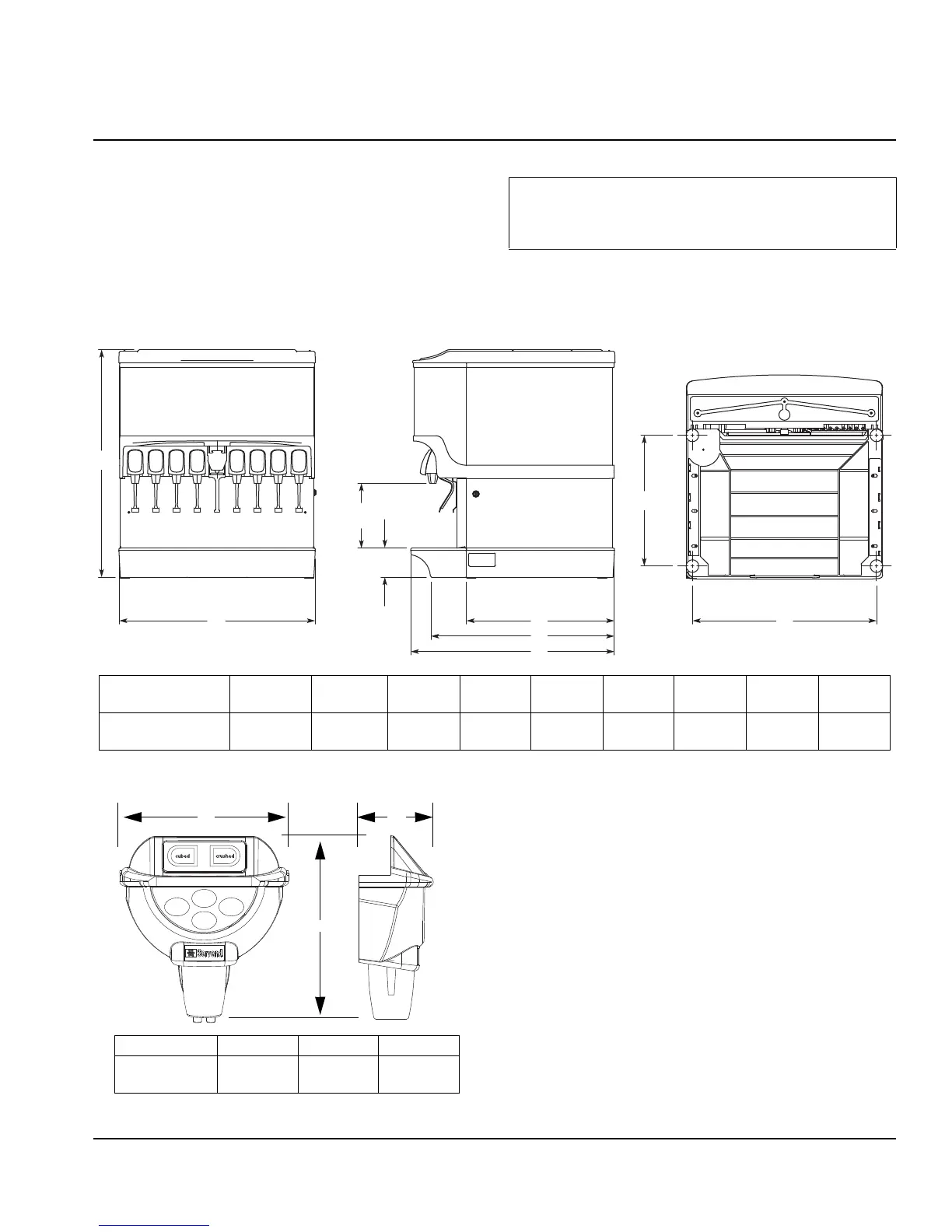

Dimensions
SELECTABLE ICE DISPENSER
FLAVOR MAGIC
Important
Failure to follow these installation guidelines may
affect warranty coverage.
Model/Ice
Capacity
ABCDEFGHI
SV-200/250SCI 34.81"
(88.4 cm)
30.00"
(76.2 cm)
9.94"
(17.6 cm)
4.44"
(11.3 cm)
22.63"
(57.5 cm)
28.00"
(71.1 cm)
31.13"
(79.1 cm)
20.00"
(50.8 cm)
27.44"
(69.7 cm)
B
C
D
G
F
E
I
H
A
Flavor Magic A B C
Module* 4.66"
(11.84 cm)
5.08"
(12.90 cm)
1.97"
(5.00 cm)
A
B
C
* For Units with this feature
