FIGAL SYSTEM
Figal refers to the stainless steel tanks of pre-mix
beverage or post-mix syrup. A small CO
2
tank pushes
the beverage out of the figal tank.
FIGAL TANKS
The stainless steel Figal beverage tanks are easy to store
and connect. When using the Figal tanks:
• Use a gas connector for the inlet fitting of the tank.
• Use a syrup connector for the outlet fitting of the tank.
• If more than one Figal tank is connected in series, when
changing tanks, remove the tank closest to the original
gas inlet while adding the new tank to the connector
closest to the syrup outlet.
Most Figal tanks have a self-closing valve on the tank as
well as the gas and syrup connectors. This allows the
operator of the system to change tanks without having to
shut down the entire system. With this type of connector,
push down on the connector while pulling up on the snap
ring around the opening of the connector. Then simply
pull the connector off the tank.

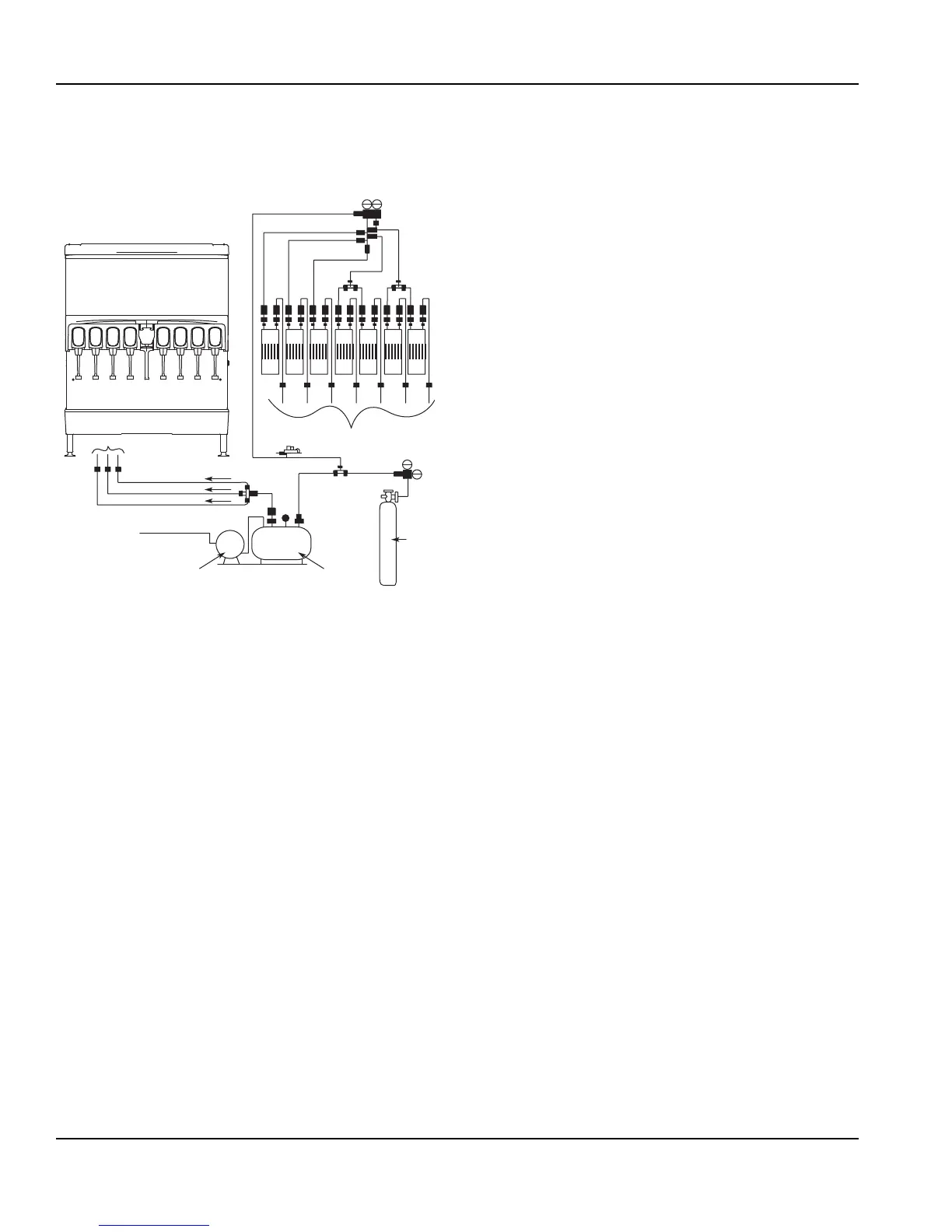

Carbonated Water to Dispenser
3/8 Syrup Lines to Dispenser
Incoming
Water
Carbonator
100 psi
CO
2
Soda Water
Pump
To Next Page
