Section 2 Installation Instructions
Part Number 020003997 4/12 2-11
Flavor Magic
(For units with this feature)
CAPACITIES SPECIFICATIONS CHART
Flavor 1
Flavor 2
Flavor 3
2 x 4 BIB Rack
Flavor 5
Flavor 6
Flavor 7
Flavor 4 Flavor 8
Flavor 1
Flavor 2
Flavor 3
1 x 3 BIB Rack
Flavor 1
Flavor 2
Flavor 3
2
x
3 BIB Rack
Flavor 4
Flavor 5
Flavor 6

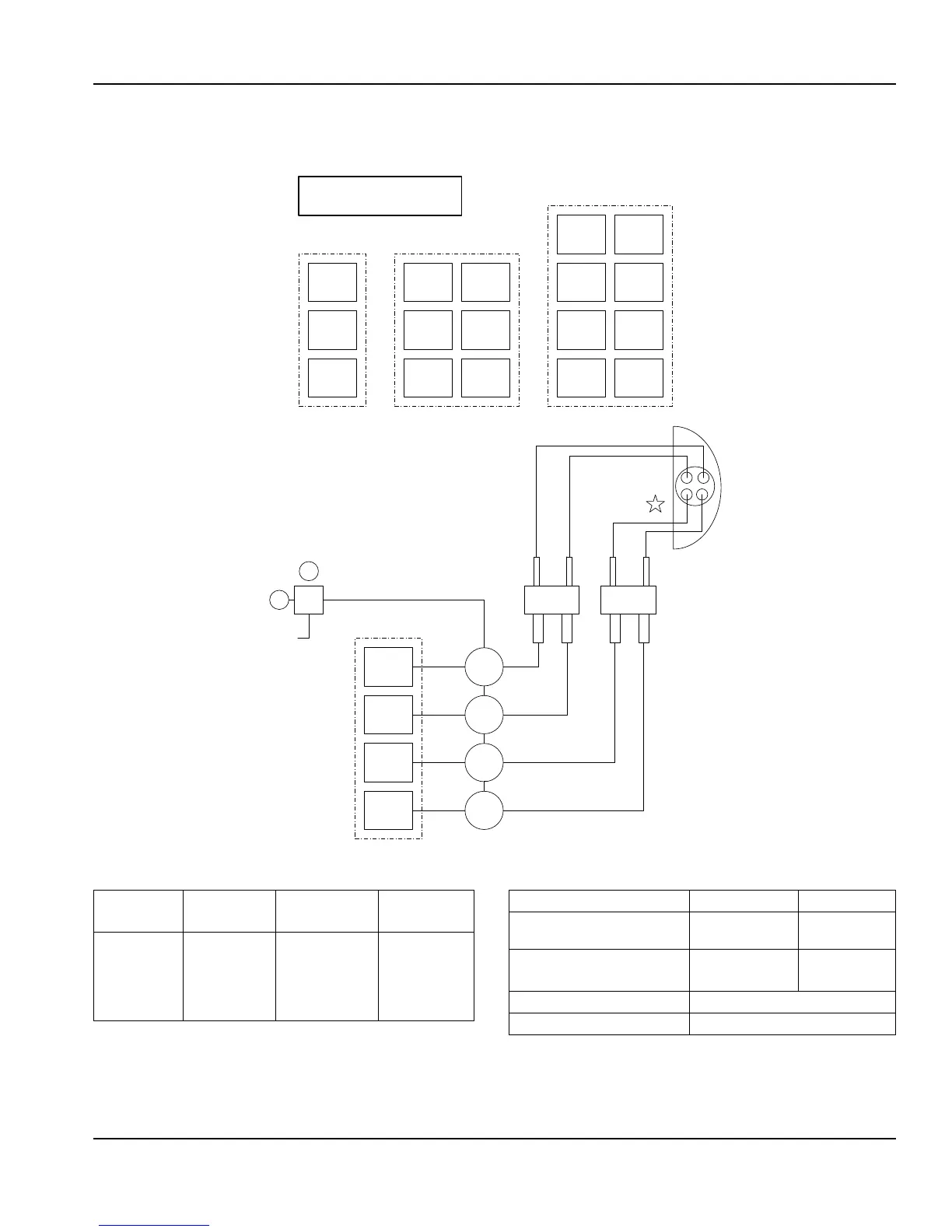

BIB Rack Configurations
Flavor
Magic
Module
SET REGULATOR
20 to 30 PSI
Valve 1
Pump
1
Pump
2
Pump
3
Pump
4
Flavor 1
Flavor 2
Flavor 3
1 x 4 BIB Rack
Flavor 4
CO
2
Supply
Valve 2
Module Valves Flow Rate
Dispense
Time
Flavor Magic 1 per flavor,
up to 4 flavors
Variable, 0.5 oz/
sec nominal
0.2 - 10
seconds,
adjustable in
0.2 second
increments
MIN. MAX
Dispenser Incoming Plain
Water Pressure
40 psi dynamic 70 psi static
Ambient Temperature 40°F
(4°C)
105°F
(41°C)
B-I-B (Secondary) 75 psi or according to line run
Flavor Magic Regulator 20 psi MAX or according to line run
