Sesamo PROSWING - Output Connectivity; External Peripherals - Output

Operating instruction
PROSWING(M)
25

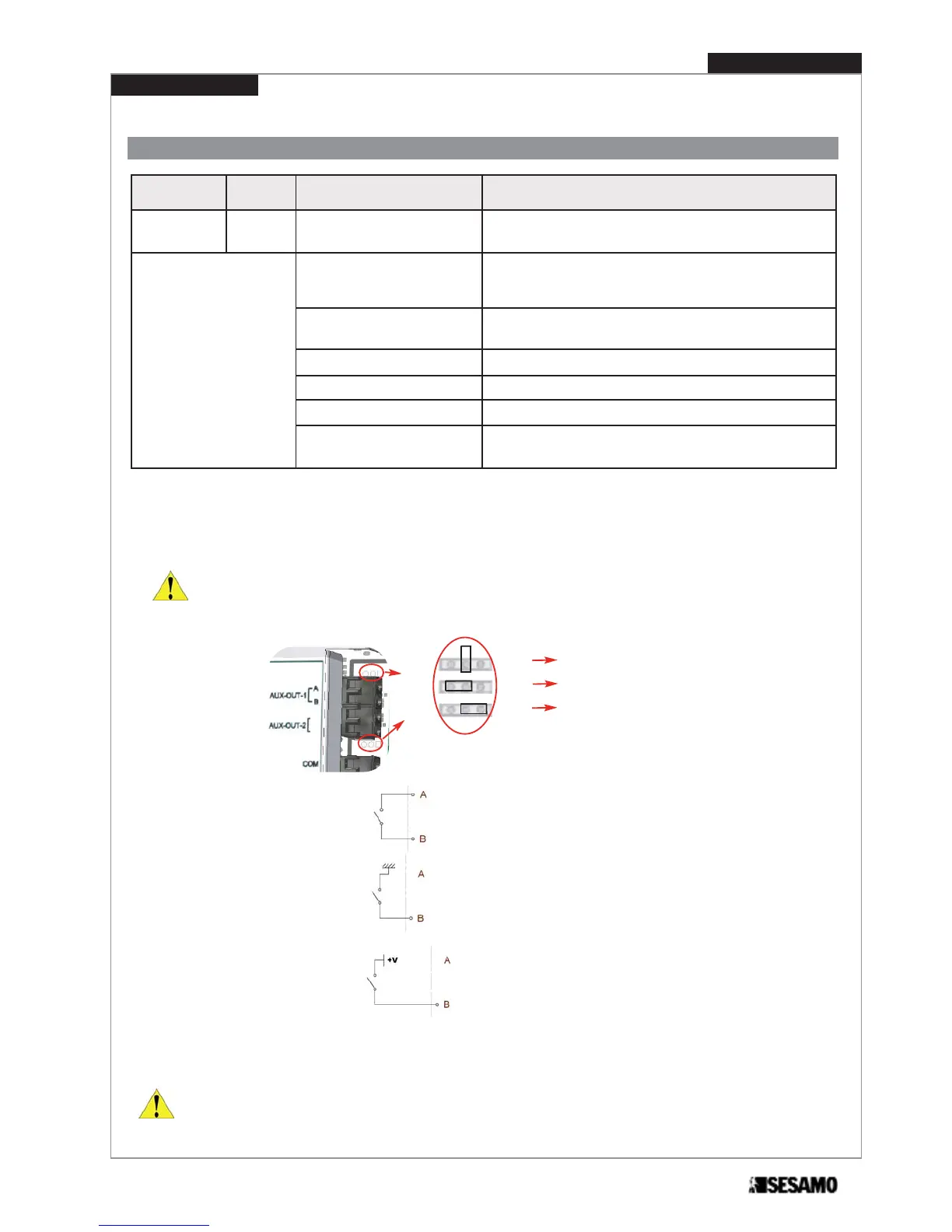

ATTENTION: to connect aux out contacts see electrical wiring as shown in Fig 27.
External periphericals connectors-Output
Max contact rating: 24V - 100mA
Absorbing more than the max rating can damage control board.
NPN
NPN
NPN
PNP
PNP
PNP
Case 1 (default)
Case 2
Case 3
Case 1
Case 2
Case 3
Fig. 27
=+ OUT 15 Vdc
=- OUT 15 Vdc
B
A
→ - OUT 15 Vdc
* NO =Normally Open NC =Normally Closed
All the input have to be referred to (COM)
SIGNAL TYPE
DEFAULT*
DESCRIPTION FUNCTION
AUX OUT 1 e 2 Auxiliary output contact that
can be set as follows:
0
- Monitoring sensors
It monitorins safety sensors.
1
- Inter lock
To be connected to the input interlock of the other automa-
tism, to obtain interlock logic.
2
- Door opened
It signals door in opened position.
3
- Door closed
It signals door in closed position.
4
- Fault
It signals door in fault.
5
- Repeat lock command
it repeats the command of the electric lock.
