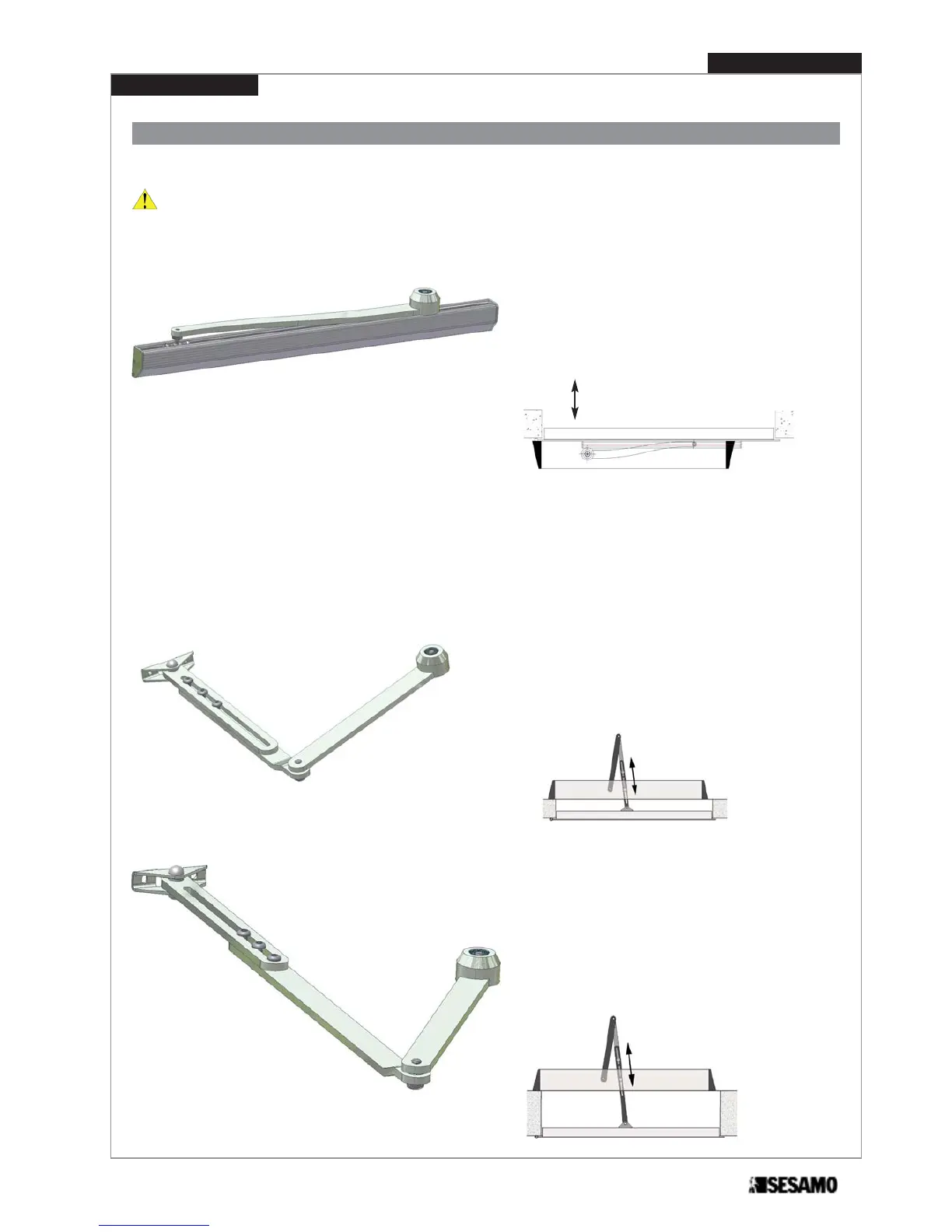

Types of arm
ATTENTION: For proper positionning, please refer to the paragraph “Arm Installation”.
PULL ARM
The pulling arm can be fitted:
- PULL (it is used when the automatism is installed
on the same side of the door opening).
STANDARD PUSH ARM
The pushing arm can be fitted :
- PUSH (it is used when the automatism is installed
on the opposite side of the door opening).
LONG PUSH ARM
The long push arm can be fitted:
- PUSH (it is used when the automatism is installed
in the opposite side of the door opening).
jamb depth = 0 ÷ 150 mm
jamb depth = 150 ÷ 300 mm
jamb depth = -50 ÷ 100 mm
Fig. 1
Fig. 2
Fig. 3
