Sesamo PROSWING - Arm Installation Procedures; Pull Arm Installation; Pull Arm Positioning

14
Operating instruction
PROSWING (M)
Pull arm installation
Pull arm positioning
Pull arm has to be used when automatism is installed on the same side of door opening.

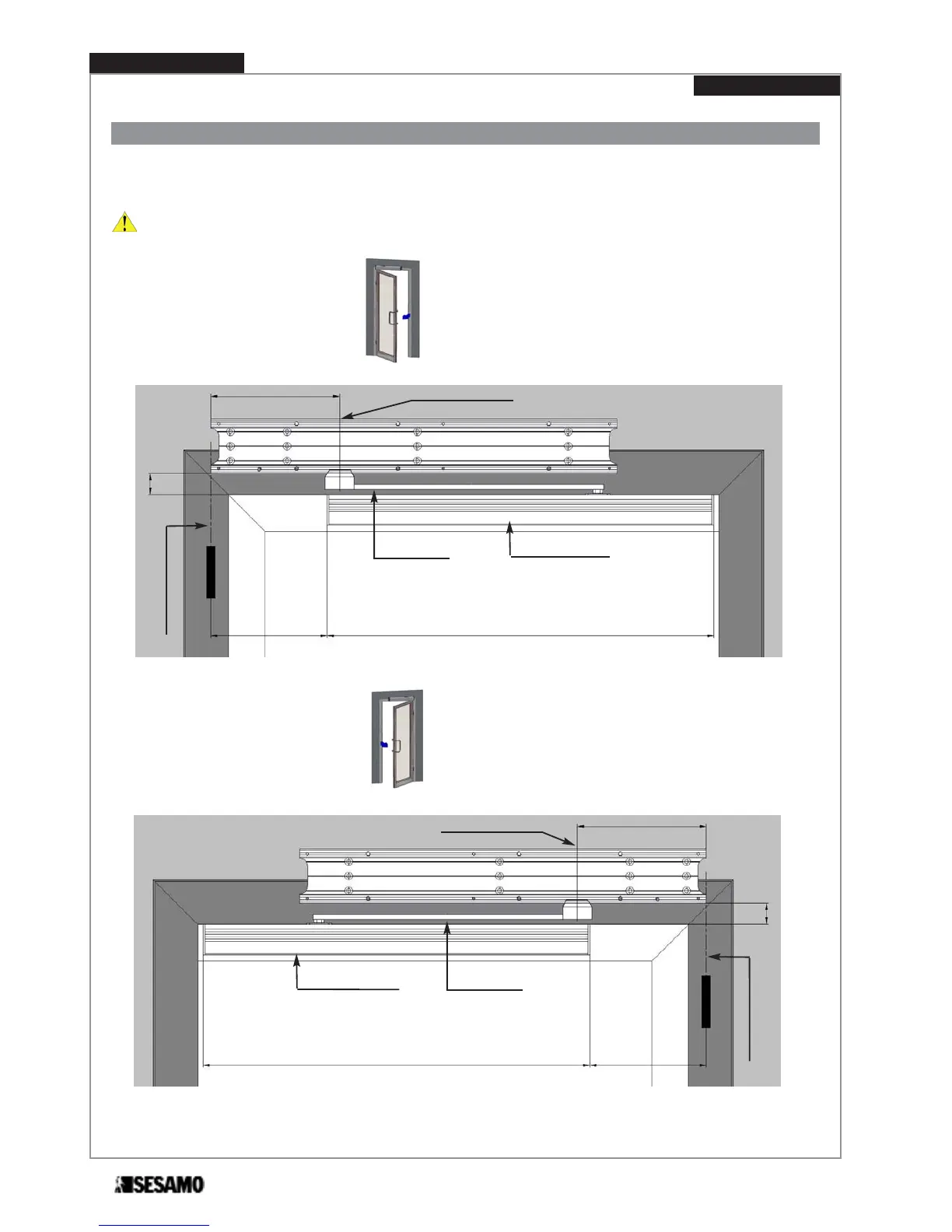

ATTENTION: For a correct positionning always refer to the hinge axis and gear motor axis, as shown in Fig.10 e 11.
Door opening RIGHT (see Fig. 11)
Door opening LEFT (see Fig. 10)
Fig.10
Hinge axis
Pull arm
Sliding guide
Gear motor axis
600
180
C
200
Fig. 11
AHinge axis
Pull arm
Sliding guide
600
180
C
200
Gear motor axis
