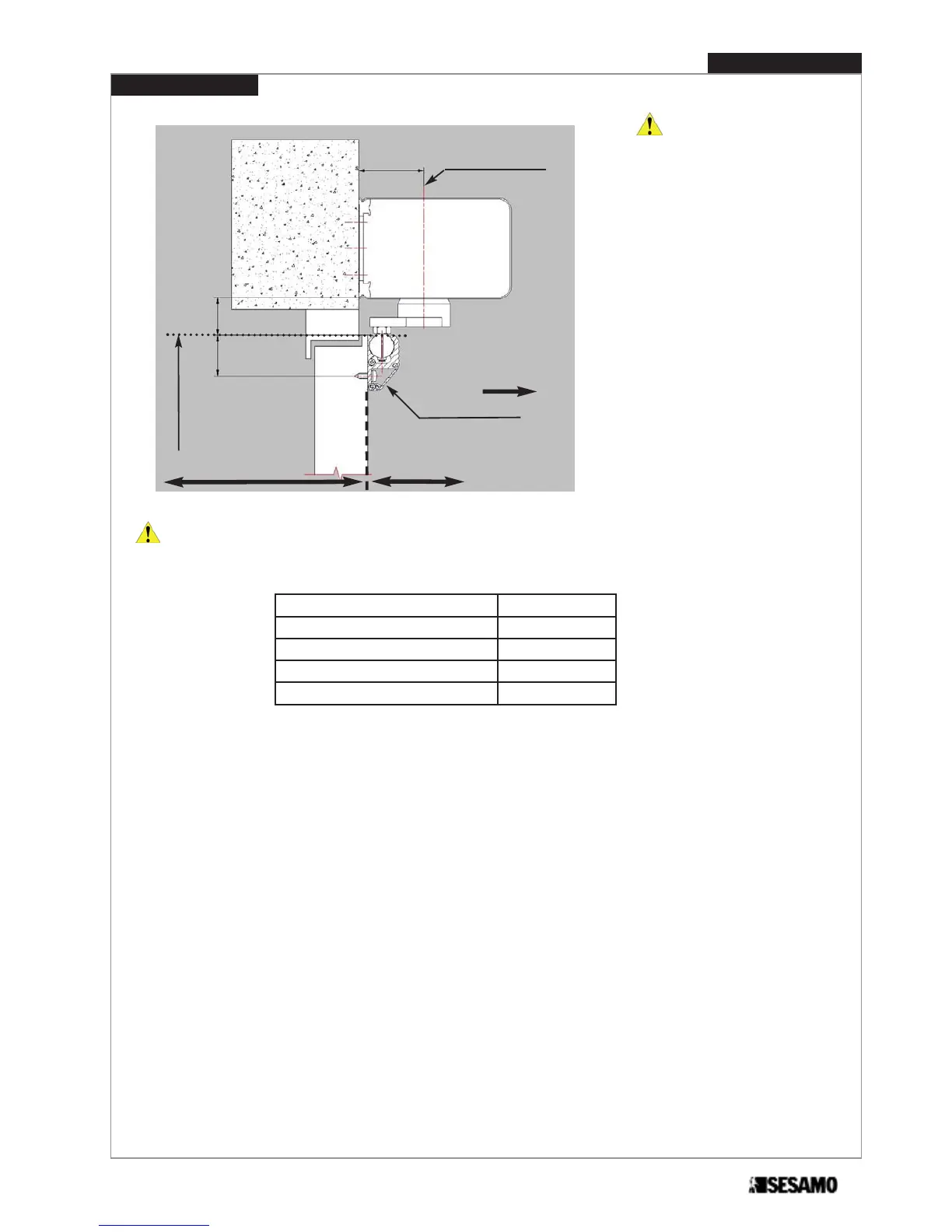

Operating instruction
PROSWING (M)
15
Sliding guide
Gear motor axis
OPENING
DIRECTION
56
C
ATTENTION: final tightening
of the screws must be performed
only after checking that vertical
positioning of the automatism
allow a good parallelism between
hinge axis and gear motor axis.
Therefore, after fixing the pulling
arm and its guide, the coupling
bolt of the arm with the cylindric
skid have not to create force in
opening/closing cycle.
A positioning error of the automa-
tism might create bending bet-
ween the bolt of the pulling arm
and the cylindric skid more than
the allowed tolerance, damage
parts of the automatism.
32
ARM EXTENSION DIMENSION “C”
Arm extension standard 35
Arm extension (L= 50 mm) 55
Arm extension (L= 70 mm) 75
Arm extension (L= 90 mm) 95
Upper door level
Fig. 12
Jamb depth=-100 mm
Within jamb depth maximum opening angle is proportionally reduced.
Jamb depth=+50 mm
