Sliding guide installation

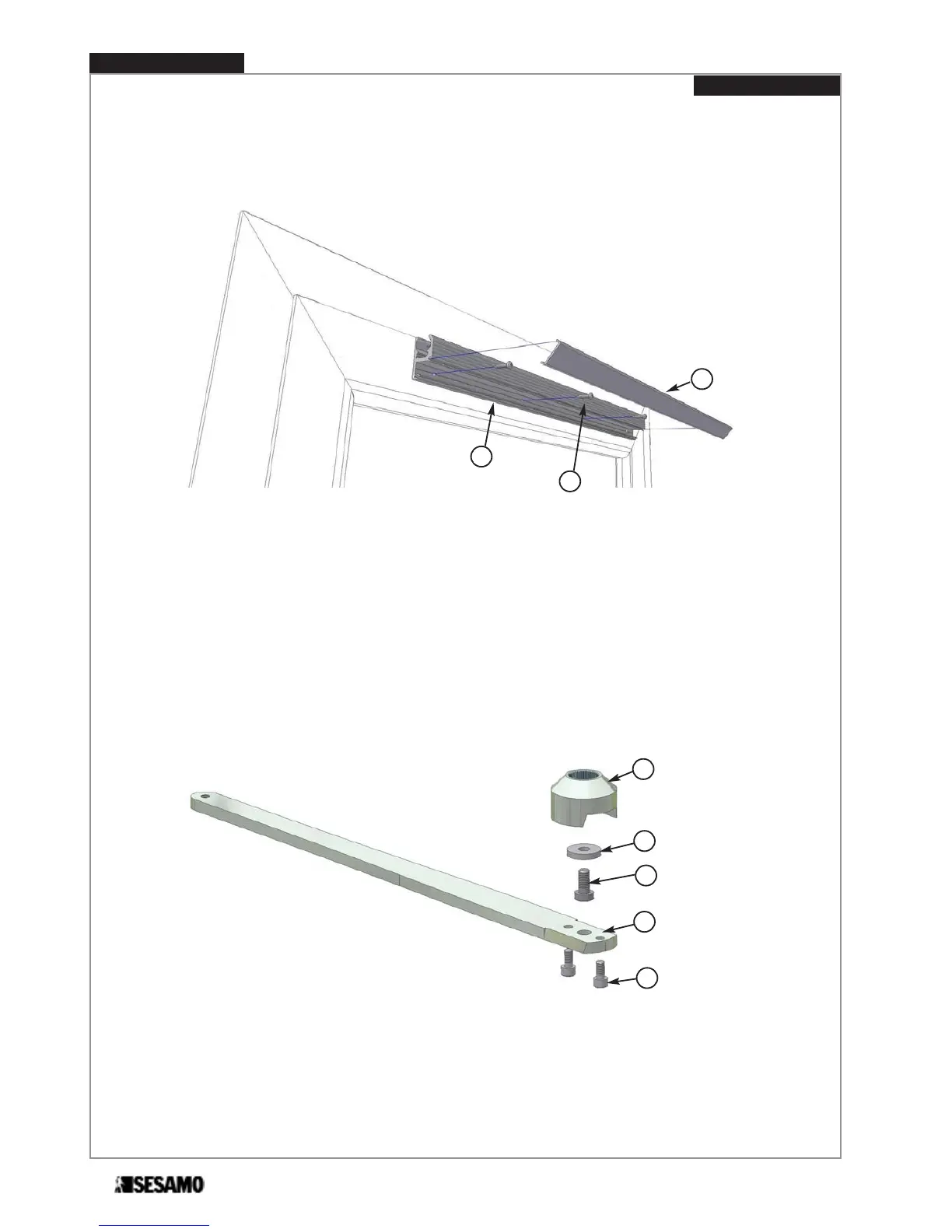

1- Unthread profile (Fig.13 Part.I) and drill 4 holes on the “V” mark on guide profile.
2- Fix guide profile horizontally to the door following dimensions shown in Fig.12.
P
O
I
Fig. 13
4- Insert washer (Fig.14 part.B) and screw (Fig.14 part.C) into arm extension (Fig.14 part.A).
5- Insert arm (Fig.14 part.D) in the arm extension slot, and tight screws (Fig.14 part.E)..
A
B
C
D
E
Fig. 14
