Sesamo PROSWING - Push Arm Installation; Push Arm Positioning

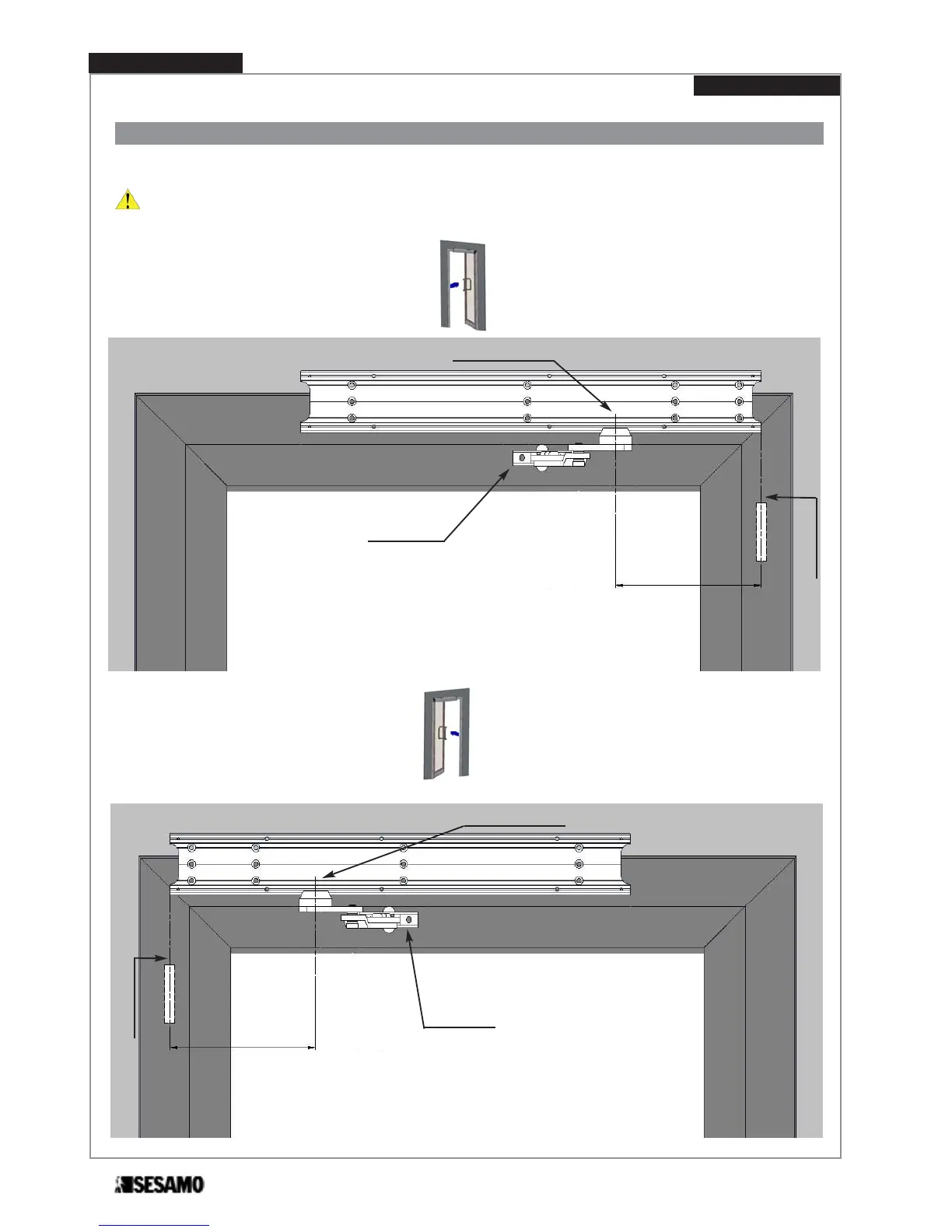

Diagram for door opening RIGHT (Fig. 17)
Hinge axis
Door bracket
Motor reducer axis
200
Diagram for door opening LEFT (Fig. 18)
Fig. 17
Hinge axis
Door bracket
Motor reducer axis
200
Fig. 18
Push arm installation
Push arm is used when automatism is installed on the opposite side of door opening.
ATTENTION: For a correct positionning always refer to the hinge axis and gear motor axis, as shown in Fig.17 e 18.
