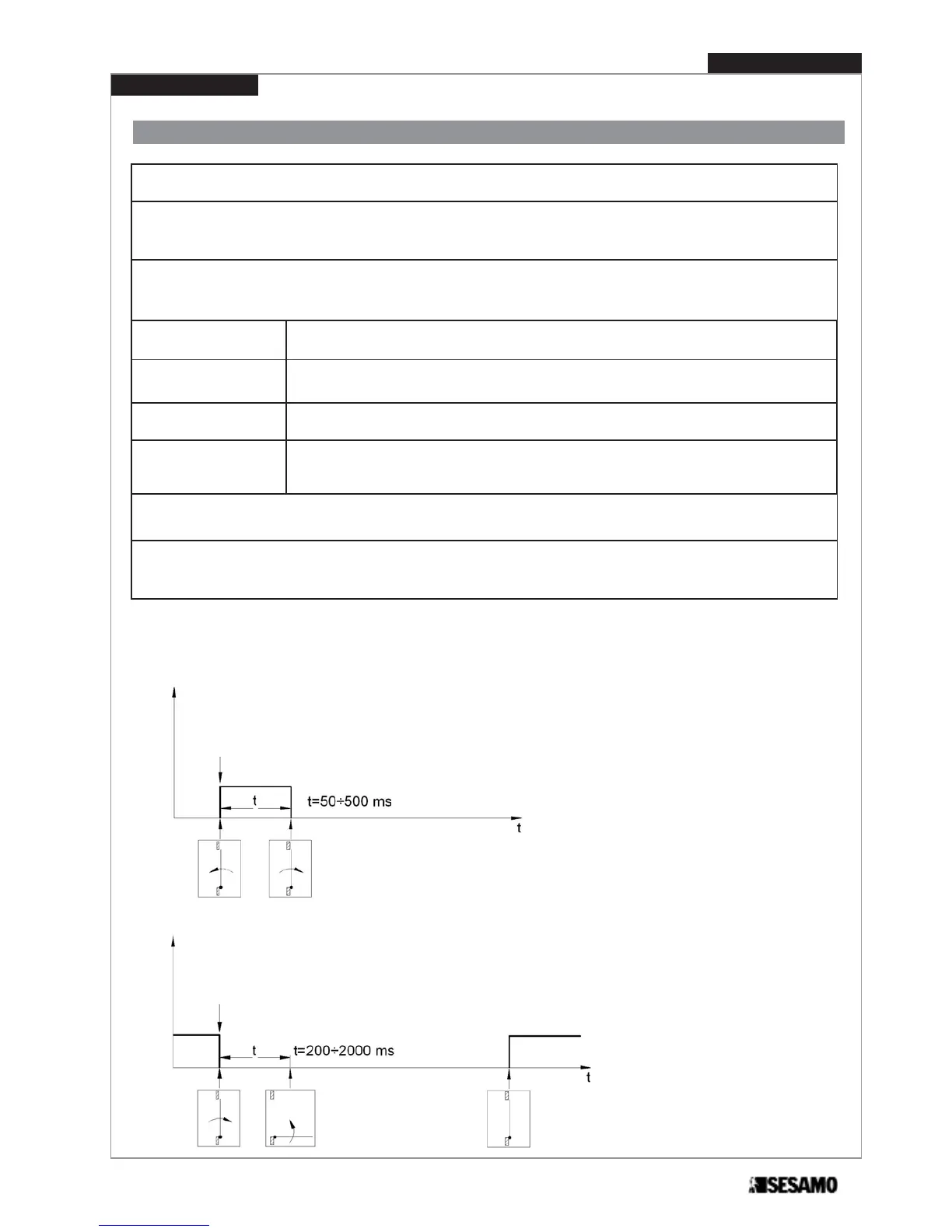

Electric lock selection and setting
33
PROSWING(M)
Operating instruction
The following types of electric locks are allowed (See parameters
10
- see paragraph “ Parameters adjustment-display”):
IMPULSIVE LOCK WITH RESTORE AT CLOSING(Parameter 10=1)
MAG LOCK (Parameter 10=2)
command
(Parameter 11)
voltage lock
voltage lock
(Parameter 11)
command
It is possible to feed 12 or 24 Vdc. Looks max power is 15W.
[set through parameter
09
(paragraph “Parameter adjustment display”)]
If the electric lock has a feedback contact it is possible to use it to enable door opening. If the feedback dos not arrive
the door, after a certain time, will try to open anyway. See parameters
15
e
16
(see paragraph “ Parameters adjustment-
display”).
It possible to modify, depending on the electric lock type used, activation pulse length or delay from lock activation
pulse command to start of door movement. See parameter
11
( see paragraph “ Parameters adjustment-display”).
Parameter 11 has different meaning and range depending on type of lock used.
It is possible to adjust last final closing force to facilitate closing with impulsive locks.
[set through parameter
12
(paragraph “Parameter adjustment display”)]
It is possible to use aux input contact as a lock activation pulse, working in “parallel” with automatic function. In such a
case it is possible to unlock the lock with the operator in manual logic. See parameters
15
e
16
( see paragraph “
Parameters adjustment-display”).
IMPULSIVE WITH
RESTORE AT CLOSING:
Lenght of lock impulse. Door starts when impulse is finished or if it is arrived feedback signal.
MAG LOCK /
FAILE SAFE:
Delay to start after lock impulse. Lock remains not feeded until door is closed again.
MOTORIZED: Delay to start after lock impulse. Lock remains not feeded until door is closed again.
IMPULSIVE WITH
RESTORE AT POWER
CUT OFF:
Lenght of lock impulse. Door starts when impulse is finished or if it is arrived feedback signal.
Moreover power is on until door has reach 10°
