Intended use
The device must be used to automate pedestrian swinging door only.
This device is an electro mechanical system that allow to open and close a swinging door using a trasmission arm.
Door is closed through a motor/spring system or only spring while power is off.
Programmable electronic control board allows correct functionning depending on the type of installation.
Limit of use
ATTENTION: Do not exceed door weight and width as shown in the diagram in “technical specification” paragraph.
To each type of arm correspond a different type of jamb dimension: do not exceed this value (see Paragraph “arm installa-
tion”).
This device is intended only for swinging pedestrian door, dry and inside use.
SESAMO shall not be held liable for any other use contrary to the use foreseen.

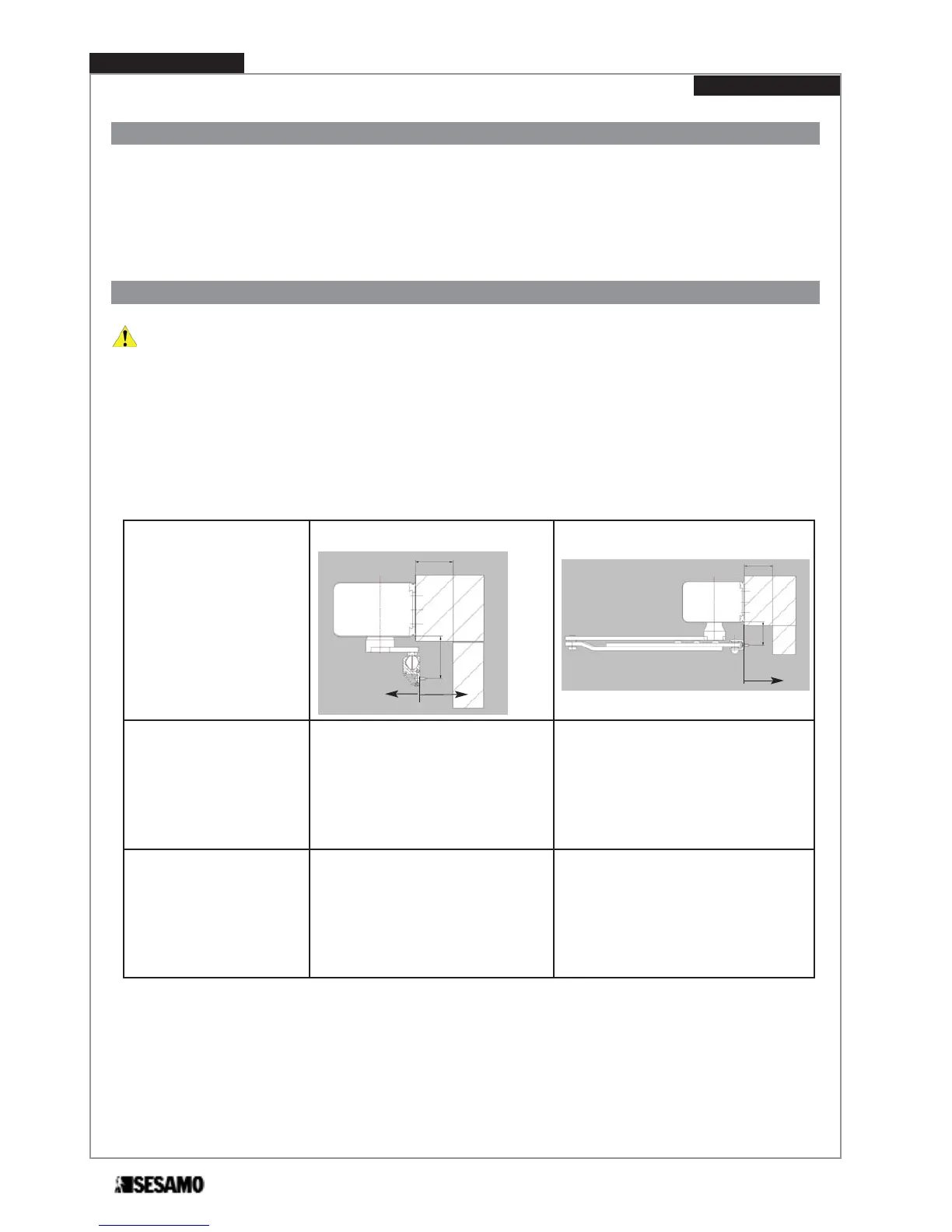

RIGID PULL ARM ARTICULATED PUSH ARM
MAX JAMB DEPTH [A] -50 ÷ +100 mm
0 ÷ 300 mm
(depending on the type of arm:
standard or long)
DISTANCE FROM THE ALU-
MINIUM BASE AND DOOR
BRACKET [B]
67 ÷ 127 mm 35 ÷ 95 mm
A
B
-50
+100
B
A
300
PROSWING (M)
Operating instruction
8
