Preliminary checks
Before installing the automatism please check:
- verify the installation does not create dangerous situations;
- prearrange proper pipes and counduits for the wires, granting the protection of the same against mechanical dama-
ges;
- the surface where fixing the automatism has to be resistant. Use screws, bolts, etc. adequate to the type of surface;
- the structure of the door has to be strong to hold the weight of the automatism as well the hinges, also check to not
have friction between fixed and mobile parts;
- use proper equipment and tools to install in security and in accordance with the regulations.

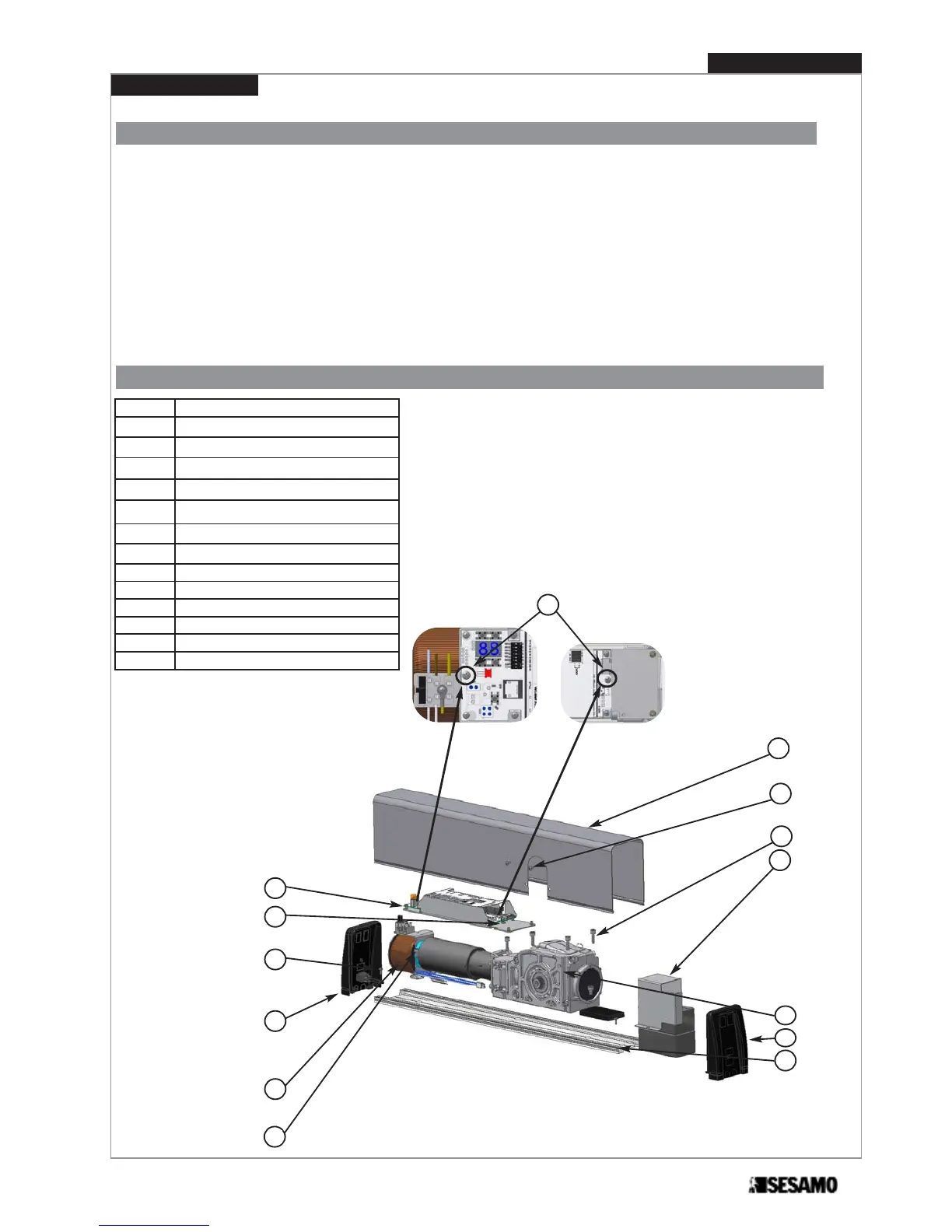

Automatism Fixing
REF. DESCRIPTION
A Cover fixing screws
B Aluminum cover
C Control board fixing screws
D Control board
E Gear motor fixing screws
F Gear motor
G Transformer fixing screws
H Transformer
I End caps fixing screws
L End cap opposite transformer side
M End cap transformer side
N Aluminum base
O
Battery group (OPTIONAL)
C
B
C
A
I
M
H
G
E
L
O
F
N
D
Fig. 6
11
