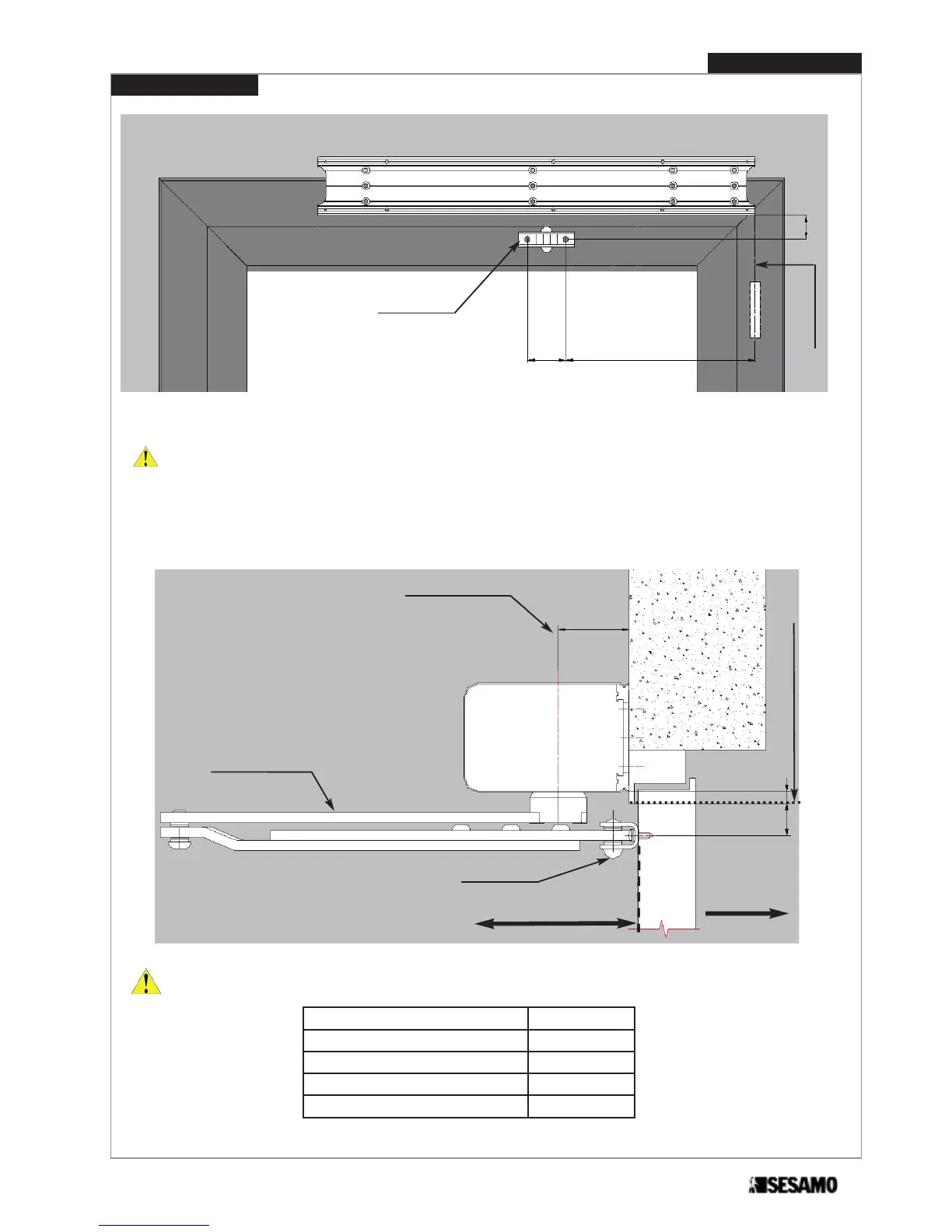

Operating instruction
PROSWING(M)
19
272.5
55
Hinge axis
Door bracket
Fig. 19
35
ARM EXTENSION DIMENSION “E”
Arm extension standard 8
Arm extension (L= 50 mm) 28
Arm extension (L= 70 mm) 48
Arm extension (L= 90 mm) 68
Fig. 20
OPENING
DIRECTION
Push arm
Door bracket
56
Motor axis
Jamb lower edge
ATTENTION: final tightening of the screws must be perfored only after checking arm can easily rotate under door
jamb (Fig.20).
E
Increasing jamb depth, maximum opening angle is proportionally reduced.
25
Jamb depth=0÷300 mm
