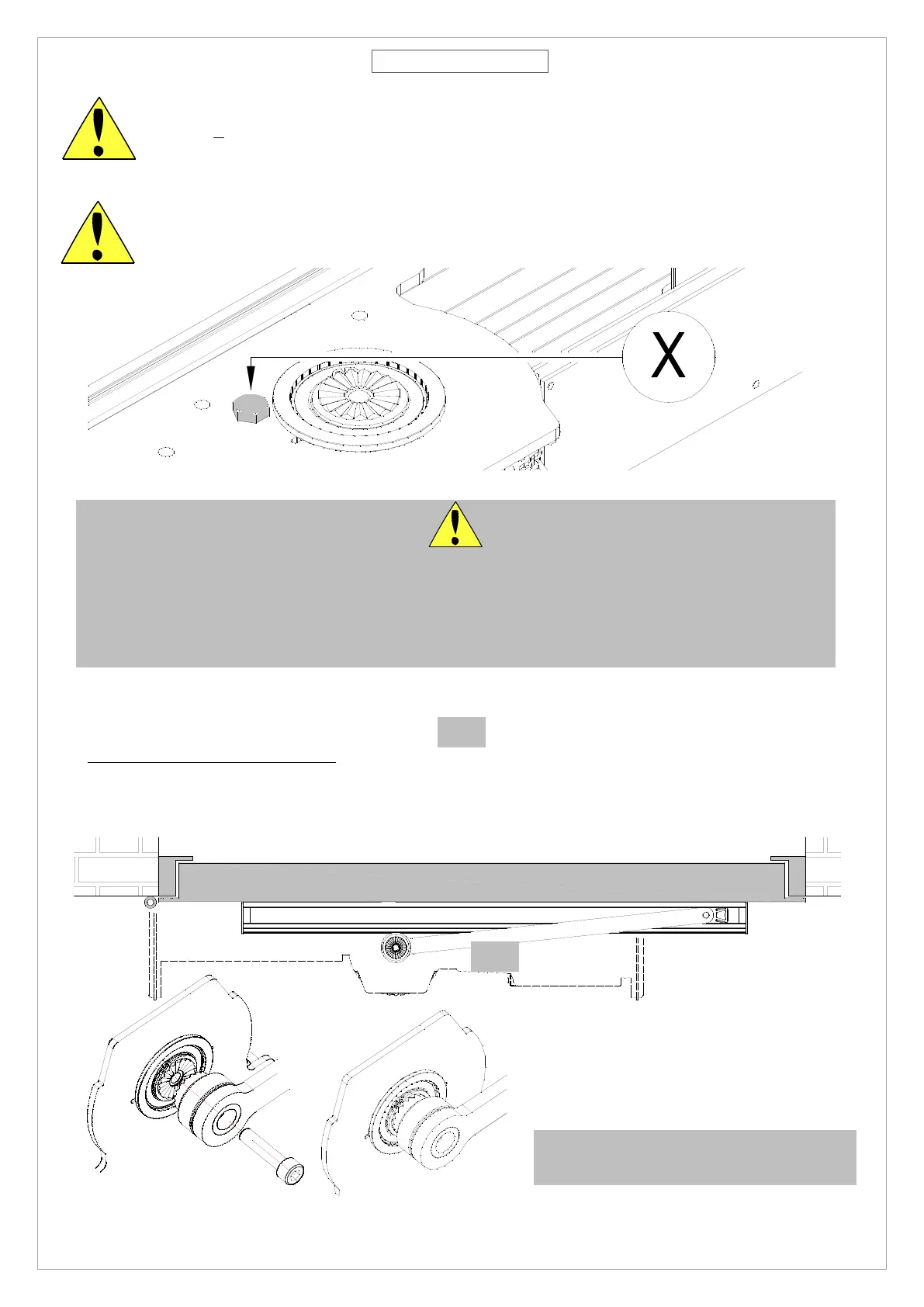

ATTENTION!!! Fix arm to the operator. This operation defines how the product is going to be
operated!!!
For the correct methodology follow the warnings given and the following diagrams.
Attention!!!! The highlighted screw indicated with an “X” represents the mechanic constraint of
the spring that NEVER HAS TO BE REMOVED before having finished the procedure for choosing
the spring preload and having solidly fixed the arm to the door and to the automation.
Choose the automation preload work:
Maximum preload (factory setting) – torque value of about 14,0 N/m:
fix the arm with the door in the closed position to the automatism using the appropriate M8 screw, after
which follow the final fixing scheme.
ATTENTION!!!!
Removing the indicated screw (X) before completing the installation of the automatism and fixing
of the arm to the door generates a serious danger to the installer as it sets in motion mechanical
parts that create danger for all parts of the body near the automation itself!!!
