Sesamo smart PRO - Medium Spring Preload Settings

19
SESAMO SMARTPRO

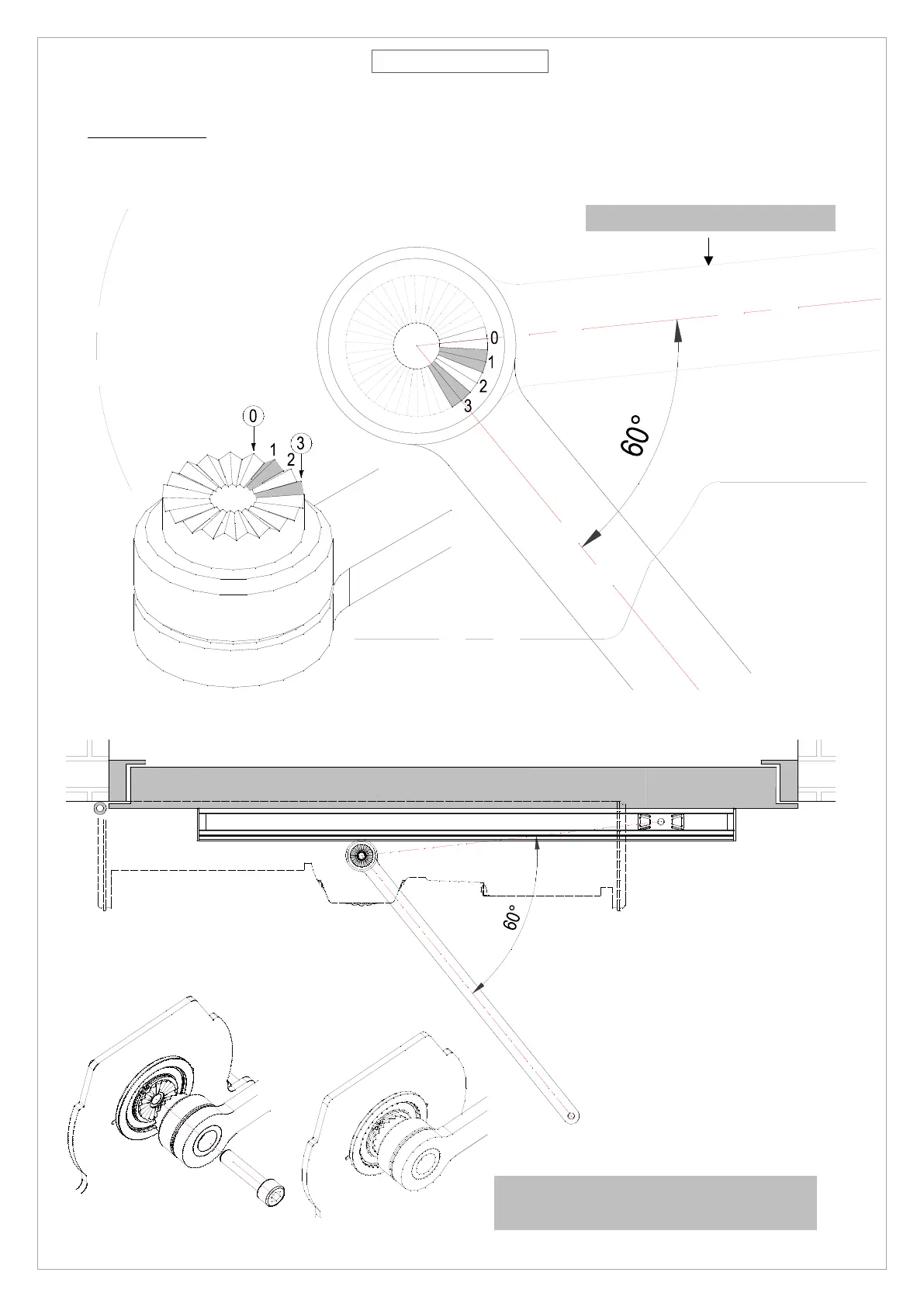

Medium preload – torque value of about 12,0 N/m:
starting from the closed door position (max. preload), the arm must be rotated by n.3 teeth in the opening
direction and fixed to the automation using the appropriate M8 screw , after which follow the final fixing
scheme.
Arm in closing position
Screw M8 tightening torque = 20N/m
(Use torque wrench)
