Operation

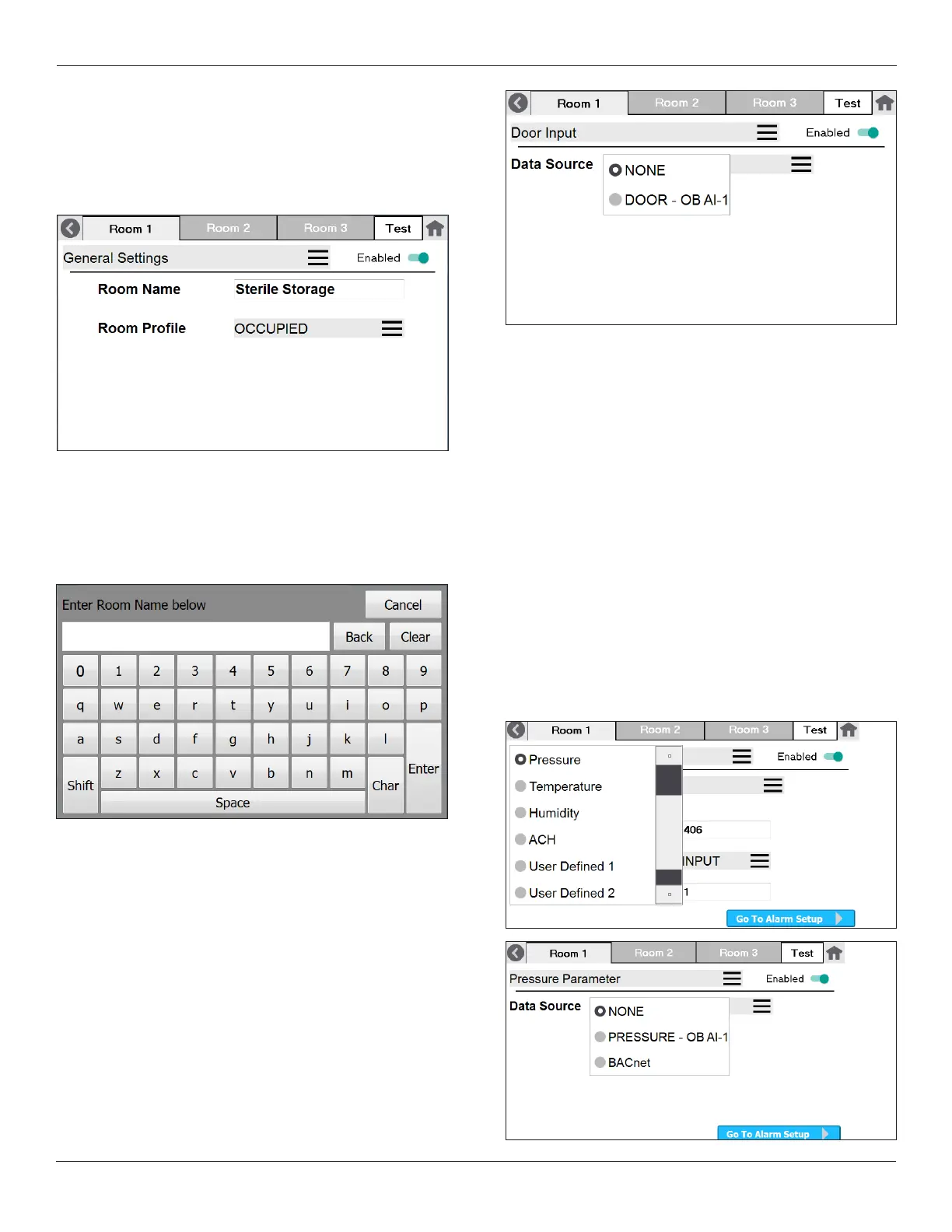

General Settings

This setting denes whether the room is displayed on

the Home screen (Enabled or Disabled), the room name,

anddefaultProle.Note,Prolesshouldbesetupbefore

choosingadefaultproleatthisstage.

Enabling Room 1 will cause the room to appear alone, or

in rotation on the Home screen. Disabling the room will

cause the Home screen to not display Room 1 at all. To

change the Room Name, press anywhere in the name

eld, and a pop-up keyboardappears. Press Enter after

typing to exit.

Door

ThisdeneswhetherthedoorInputisEnabledorDisabled,

and if Enabled, the Data Source that drives its state. The

Data Source may be None, or an Input. When Enabled

andconguredwithaDataSource,theDoorInputdrives

the state of the DOOR icon on the right side of the Home

screen.

Pressure, Temperature, Humidity, ACH, and User-

Dened Badges

ThisdeneswhetherthePressure(Temperature,Humidity,

ACH,andUserDened)Badgeispresentontheroom’s

Home screen (Enabled = present, Disabled = not shown),

the source of data (an Input, or the network), alarming

parameters, and control parameters (FLEX-RC only).

The bottom-right button Go To Alarm Setup permits

access to alarm and control parameters. The functions

Pressure,Temperature,Humidity,ACH,andUserDened

Badgecongurationsallhavesimilarmenus.

Note: When using an air velocity sensor for ACH

calculation, the input must be scaled to convert to

volumetric flow. To do this, scale the low and high

input values for 4-20mA, 0-5V, or 0-10V by multiplying

by the cross-sectional area of the duct where the air

velocity sensor is installed. Ensure that any difference

in time (e.g. minutes, seconds) or distance (e.g. meters,

centimeters, feet) are accounted for.
