SEW-Eurodrive Movigear Performance MGF**-DFC-C Series User Manual

5
Electrical installation
Plug connector assignment at the electronics cover
Operating Instructions – MOVIGEAR
®
performance
117

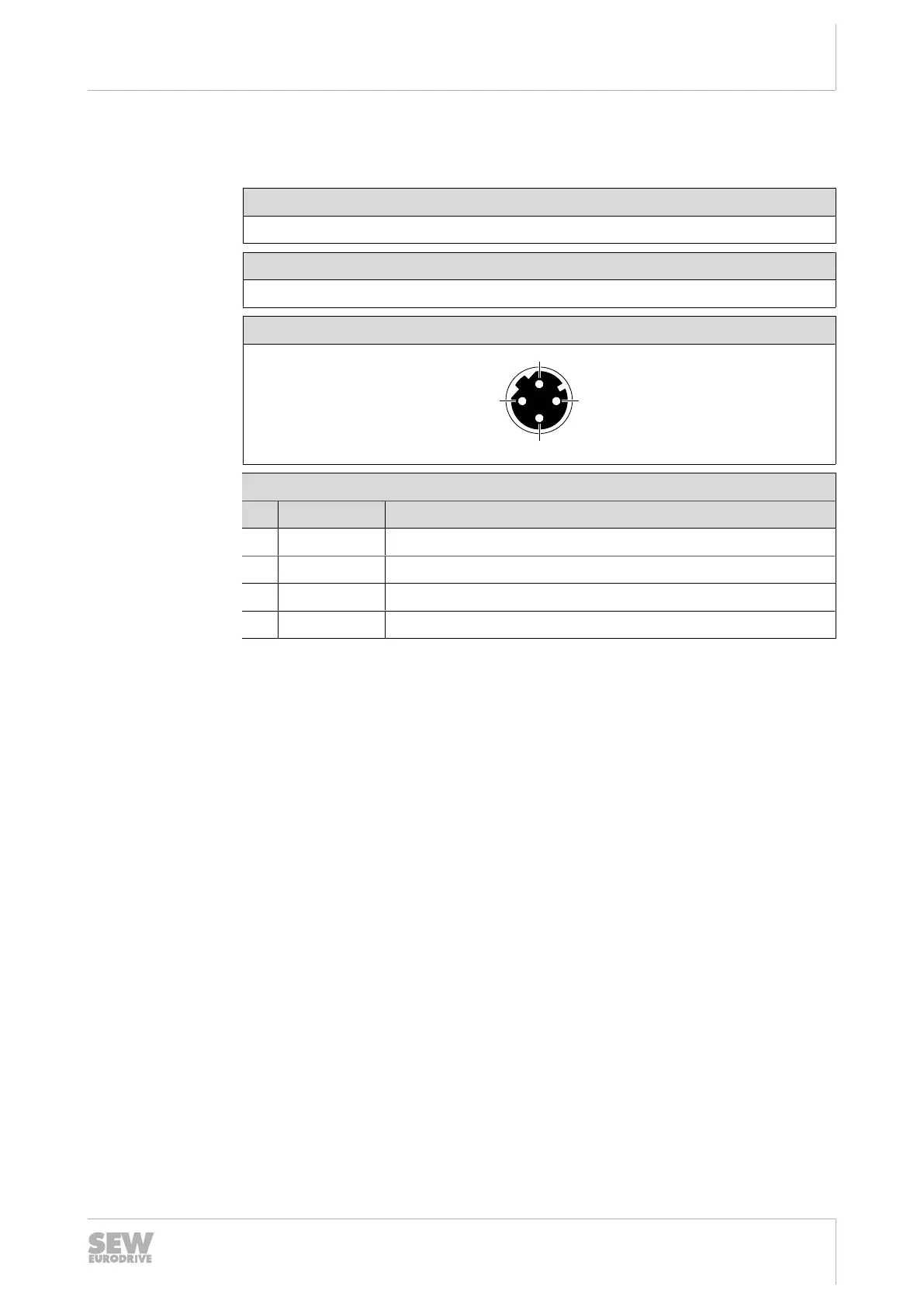

5.11.4 X4233_1: Fieldbus/Ethernet interface, port 1
The following table shows information about this connection:
Function
Fieldbus/Ethernet interface, port 1
Connection type
M12, 4‑pin, female, D‑coded, color: black
Connection diagram
2
4
3
1
Assignment
No. Name Function
1 TX+ Transmit line (+)
2 RX+ Receive line (+)
3 TX- Transmit line (-)
4 RX- Receive line (-)
25945475/EN – 04/2019
