Unit structure
Example nameplate and type designation of the drive unit
Operating Instructions – MOVIGEAR
®
performance
22
3.7 Example nameplate and type designation of the drive unit

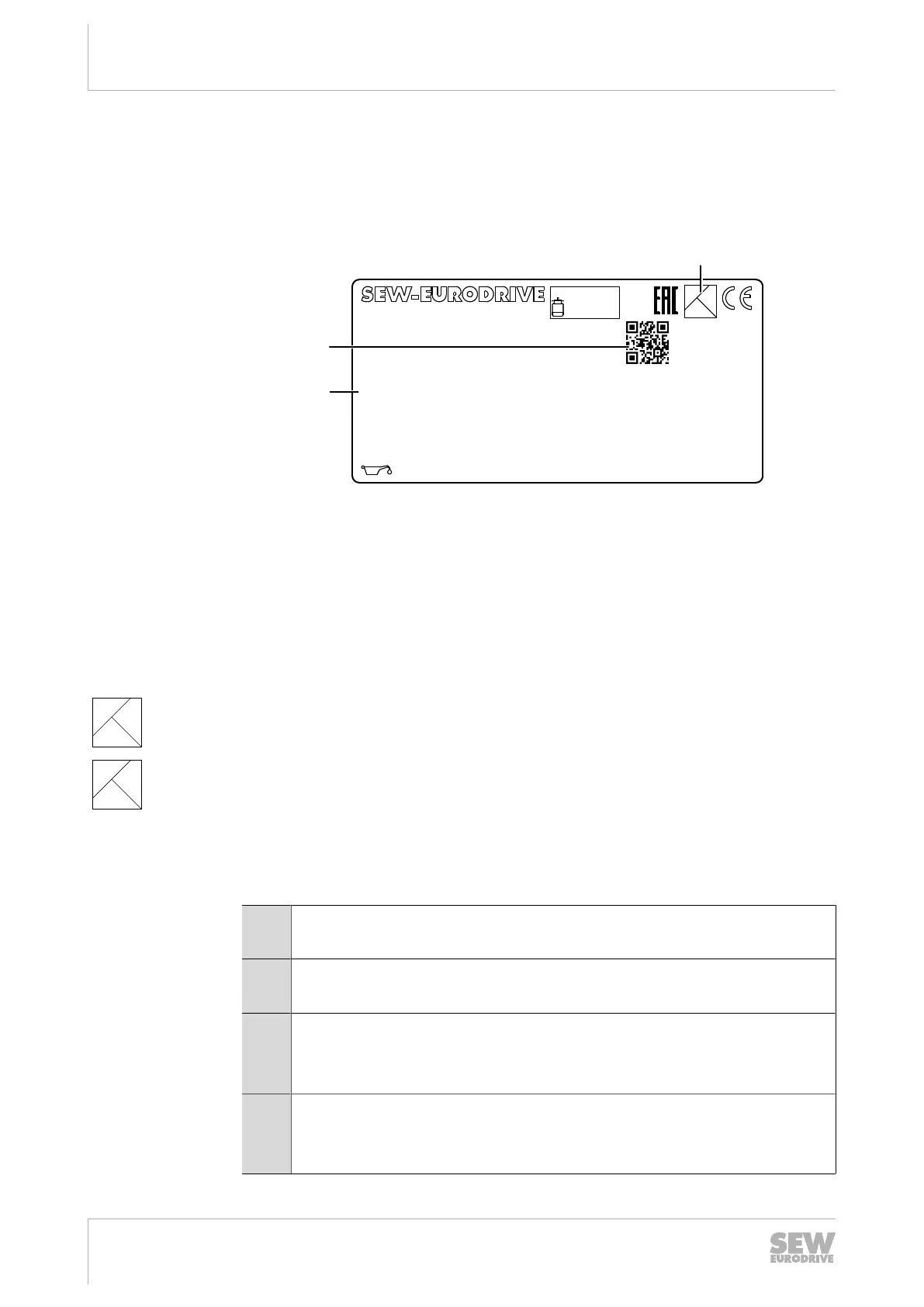

3.7.1 Nameplate
The following figure gives an example of a nameplate for MOVIGEAR
®
performance.
For the structure of the type designation, refer to the chapter "Type designation".
>@
76646 Bruchsal/Germany
MGFAS2-DFC-C/DI/AZ1Z/DSP/IV/BW
01.7659637421.0001.18
IM M1, M2, M4, M5, M6
Ta -20...+40°C
Th.Kl.155(F)
CLP HC 220 Synth. Öl/PSS/0.76 l
i 5.0
TENV 3~ IEC60034
Cos
j 0,99 ML 03
nA 0,20...400,0 r/min nR 1:2000
fN 50...60 Hz
IN 1.8 A
IP 65
17.000 Kg
nMax 2000 r/min
UN 380...500 V
MA 20 Nm
60 Nm
Ma pk
Up 310 V
Made in Germany
28106288
IE5
eff% 89.0
>@
01
FS
>@
9007224387639435
[1] FS logo
[2] Unique serial number
[3] The 2D code on the nameplate indicates the unique serial number.
FS logo description
The FS logo on the nameplate is based on the combination of safety-related compon-
ents that is installed.
The following FS logo variants are possible:
01
FS
Device with STO connection via terminals or plug connectors.
81
FS
Device with MOVISAFE
®
CSB51A safety option.
3.7.2 Type designation
The following table shows the type designation of MOVIGEAR
®
performance:
MG Product family
MG = MOVIGEAR
®
F Gear unit type
F = Parallel-shaft helical gear unit
A Shaft design
A = Shaft-mounted gear unit (hollow shaft with key)
T = TorqLOC
®
hollow shaft mounting system
S Housing mounting types
T = Drive with torque arm
S = Housing with threads for mounting a torque arm
25945475/EN – 04/2019
