5
Electrical installation
Terminal assignment
Operating Instructions – MOVIGEAR
®
performance
75
5.5 Terminal assignment
WARNING
Electric shock due to regenerative operation when the shaft is turning.
Severe or fatal injuries.
• Secure the output shaft against rotation when the electronics cover is removed.
INFORMATION
The terminals X3 for connecting the braking resistor can be connected to an optional,
internal braking resistor. As an alternative, you an connect an external braking resis-
tor if the power rating of this braking resistor is not sufficient.
Proceed as follows to do so:
• Loosen the connections of the internal braking resistor.
• Insulate and fasten the connections of the internal braking resistor. Make sure all
connections leading to other components are electrically insulated.
• Connect the external braking resistor again. Observe the installation instructions
of the device and of the external braking resistor.

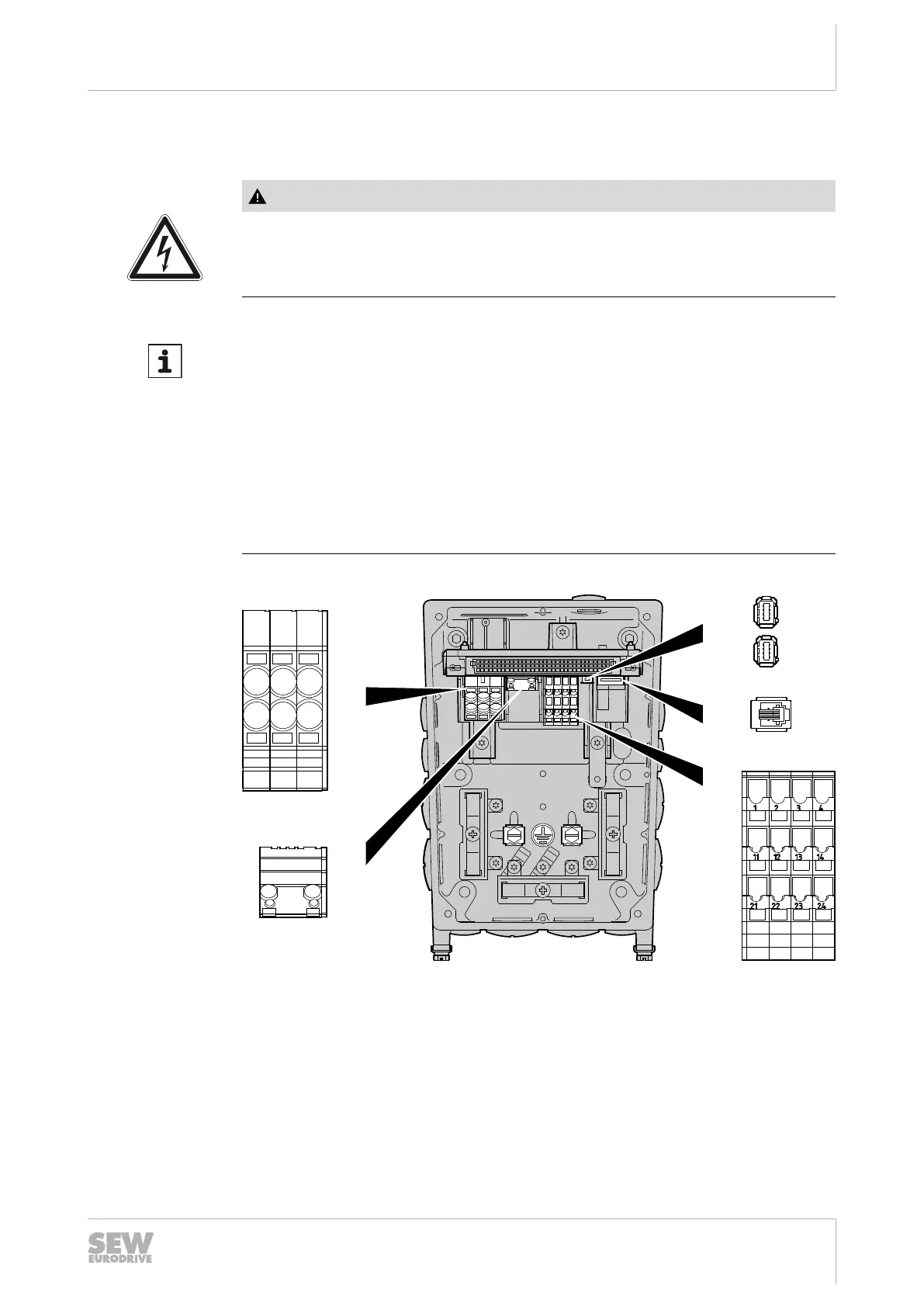

The following figure shows the terminal assignment of MOVIGEAR
®
..-DFC-C:
1 2 3
11 12 13
X1
X31
X43
X42
X9
X3
1 2 3 4
11 12 13 14
21 22 23 24
25202965515
25945475/EN – 04/2019
