Shaft-mounted gear unit with TorqLOC® (customer shaft without contact shoulder)
Operating Instructions – MOVIGEAR
®
performance
43
4.6 Shaft-mounted gear unit with TorqLOC
®
(customer shaft without contact
shoulder)
Shaft-
mounted
gear unit
with
TorqLOC®
(customer
shaft
without
contact
shoulder)

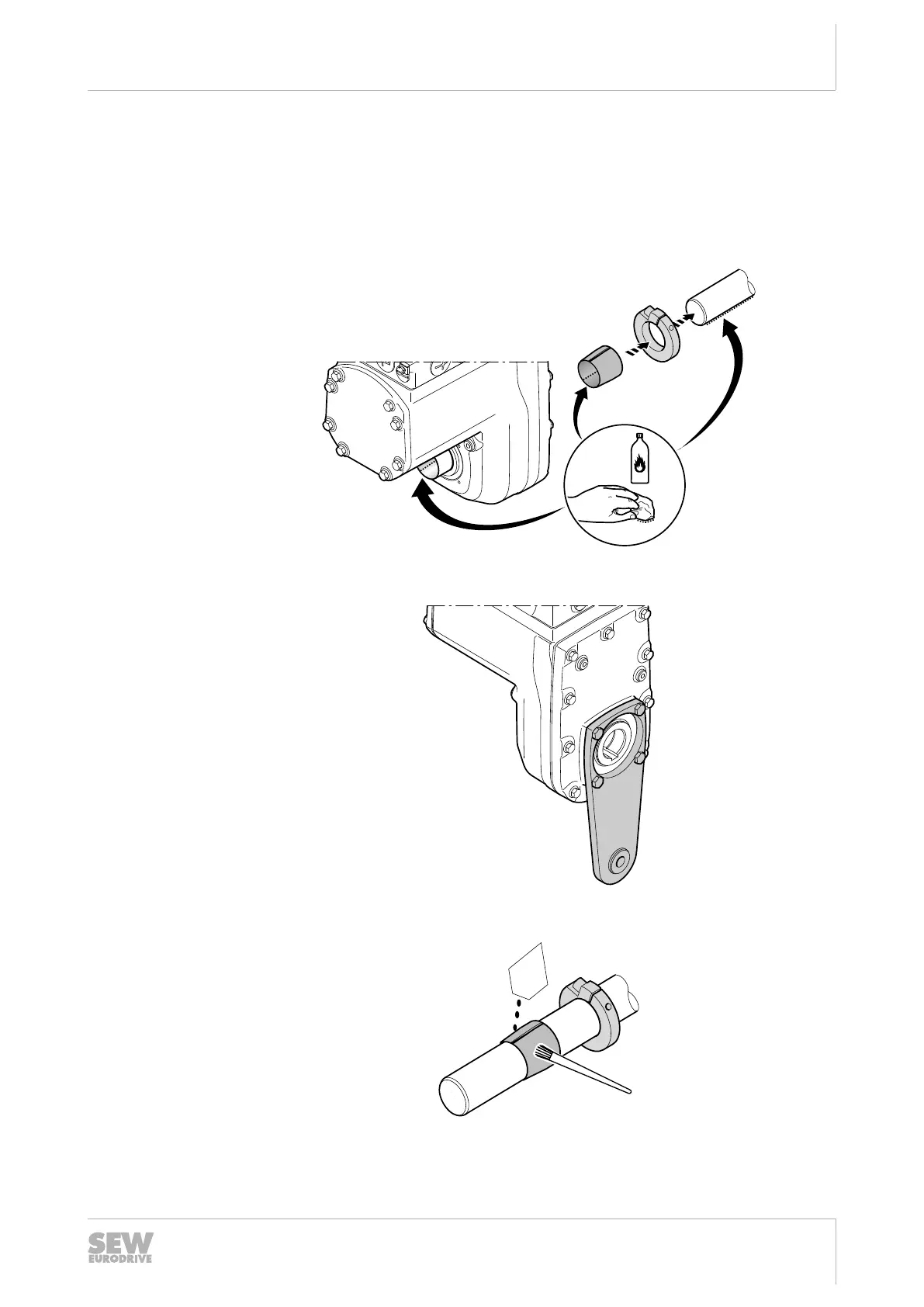

1. Clean the customer shaft and the inside of the hollow shaft. Ensure that all traces
of grease or oil are removed.
2. Install the stop ring and the bushing on the customer shaft.
9007220783051915
3. Fasten the torque arm on the drive unit; observe the chapter "Torque arm".
9007220783641867
4. Apply NOCO
®
fluid on the bushing and spread thoroughly.
21528905739
