Mechanical installation
Shaft-mounted gear unit with TorqLOC® (customer shaft with contact shoulder)
Operating Instructions – MOVIGEAR
®
performance
51
4.7 Shaft-mounted gear unit with TorqLOC
®
(customer shaft with contact
shoulder)
Shaft-
mounted
gear unit
with
TorqLOC®
(customer
shaft with
contact
shoulder)

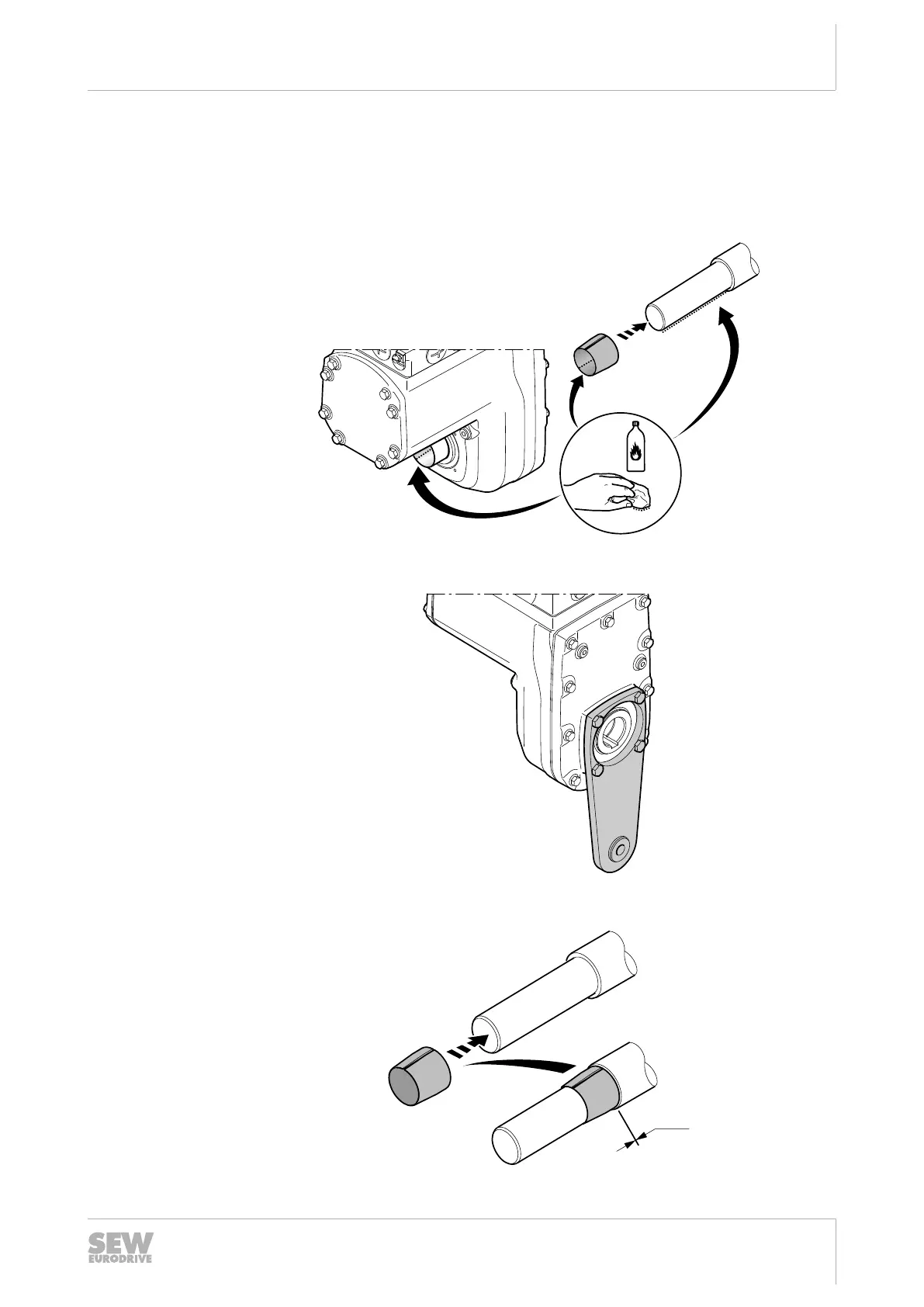

1. Clean the customer shaft and the inside of the hollow shaft. Ensure that all traces
of grease or oil are removed.
9007220783669131
2. Fasten the torque arm on the drive unit; observe the chapter "Torque arm".
9007220783732491
3. Slide the bushing onto the customer shaft.
0 mm
21528993931
25945475/EN – 04/2019
