Device structure
Nameplate
Operating Instructions – MOVITRAC
®
LTP-B
15
3 Device structure
3.1 Nameplate

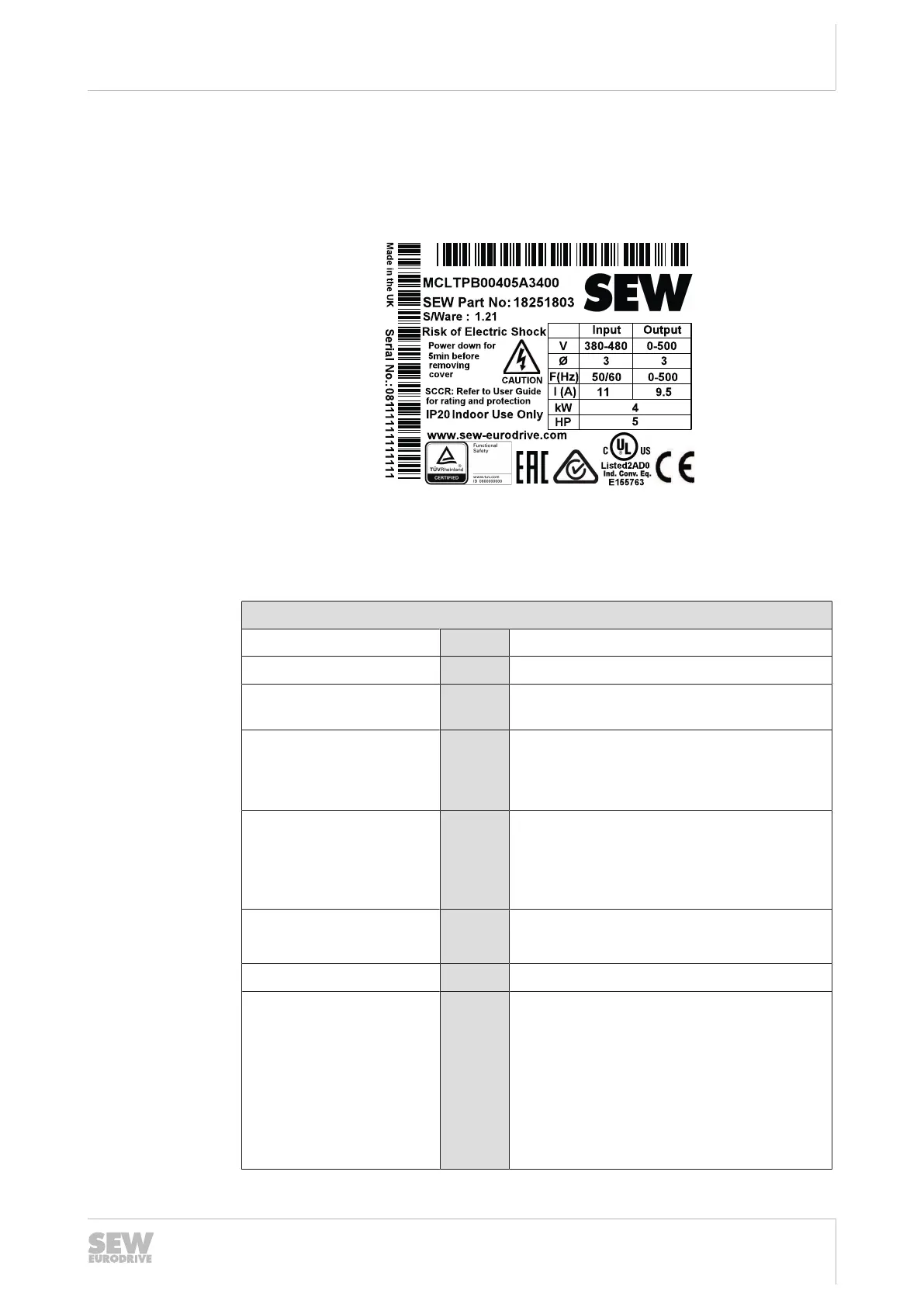

The following figure shows an example of a nameplate.
27021611319513483
3.2 Type designation
Example: MCLTP-B 0015-2B1-4-00 (60 Hz)
Product name MCLTP MOVITRAC
®
LTP-B
Version B Version status of the device series
Recommended motor
power
0015 0015=1.5kW
Connection voltage 2 2=200–240V
5 = 380 – 480 V
6 = 500 – 600 V
Interference suppression
on the input
B 0 = Device without filter (without interference
suppression)
A = Class C2
B = Class C1
Connection type 1 1 = 1-phase
3 = 3-phase
Quadrants 4 4 = 4-Quadrant operation
Design 00 00 = Standard IP20 housing
10 = IP66/NEMA-4X housing
10 = IP55/NEMA-12K housing
15 = IP55/NEMA-12K / IP66 /NEMA-4X
housing for operation on IT systems
40 = IP66/NEMA-4X housing with switch
xH = High-frequency version
