5 Startup
5.1 User interface
5.1.1 Keypads
The inverters in IP20 design are equipped with a standard keypad.
The inverters in IP55/IP66 design are equipped with a full text display with language
switching function.
Both keypads allow for operation and setup of the inverter without additional devices.

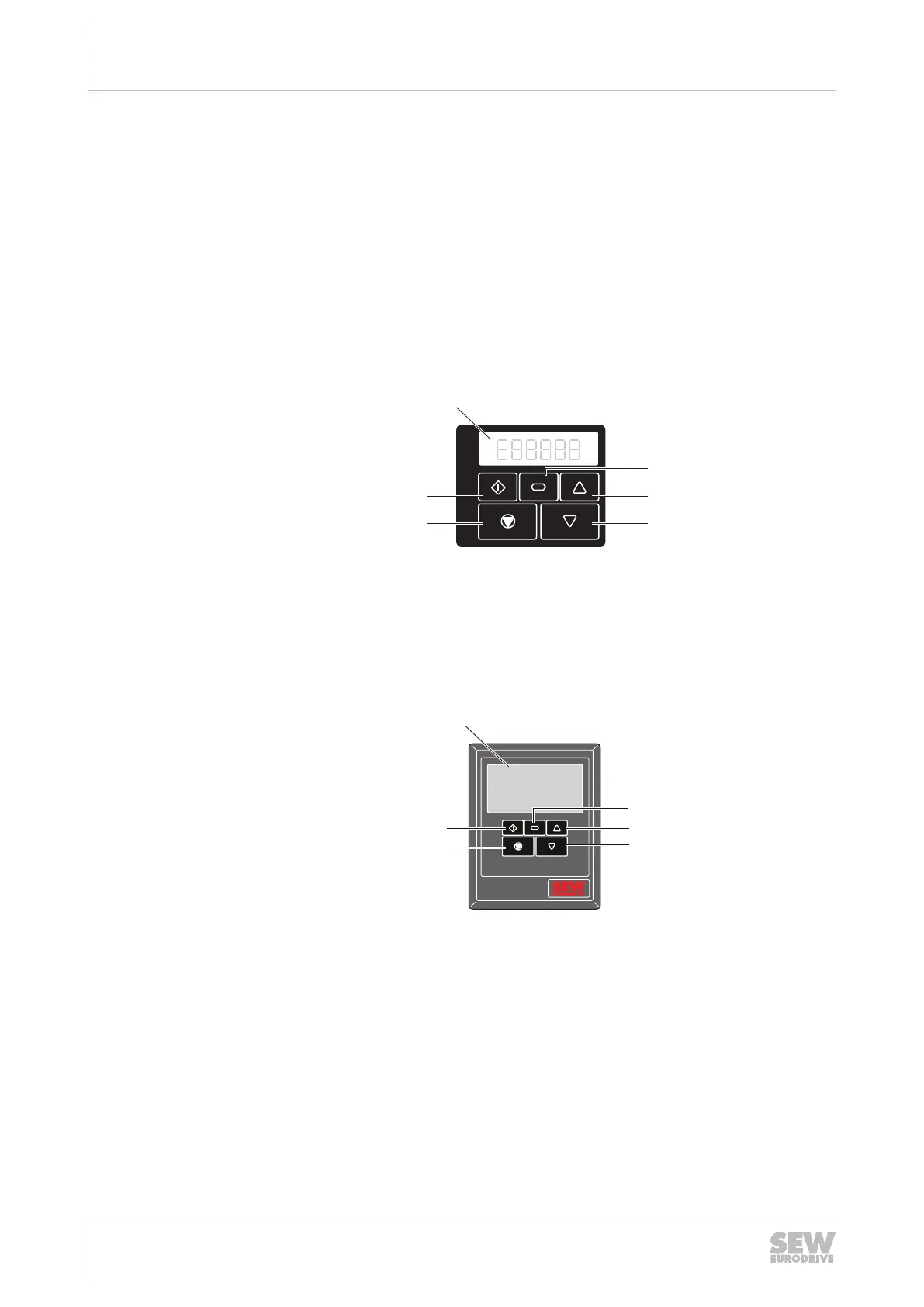

Standard keypad
MOVITRAC
®
LT
[4]
[5]
[6]
[1]
[2]
[3]
9007202188405387
[1] 6-digit 7-segment display [4] Navigate button
[2] Start button [5] Up button
[3] Stop/Reset button [6] Down button
Keypad with full text display
MOVITRAC
®
LT
[4]
[5]
[6]
[1]
[2]
[3]
18364520203
[1] Full text display (multilingual) [4] Navigate button
[2] Start button [5] Up button
[3] Stop/Reset button [6] Down button
