Device structure
Device structure of the standard inverter
Operating Instructions – MOVITRAC
®
LTP-B
19
3.3.3 Inverters with degree of protection IP55/NEMA 12K

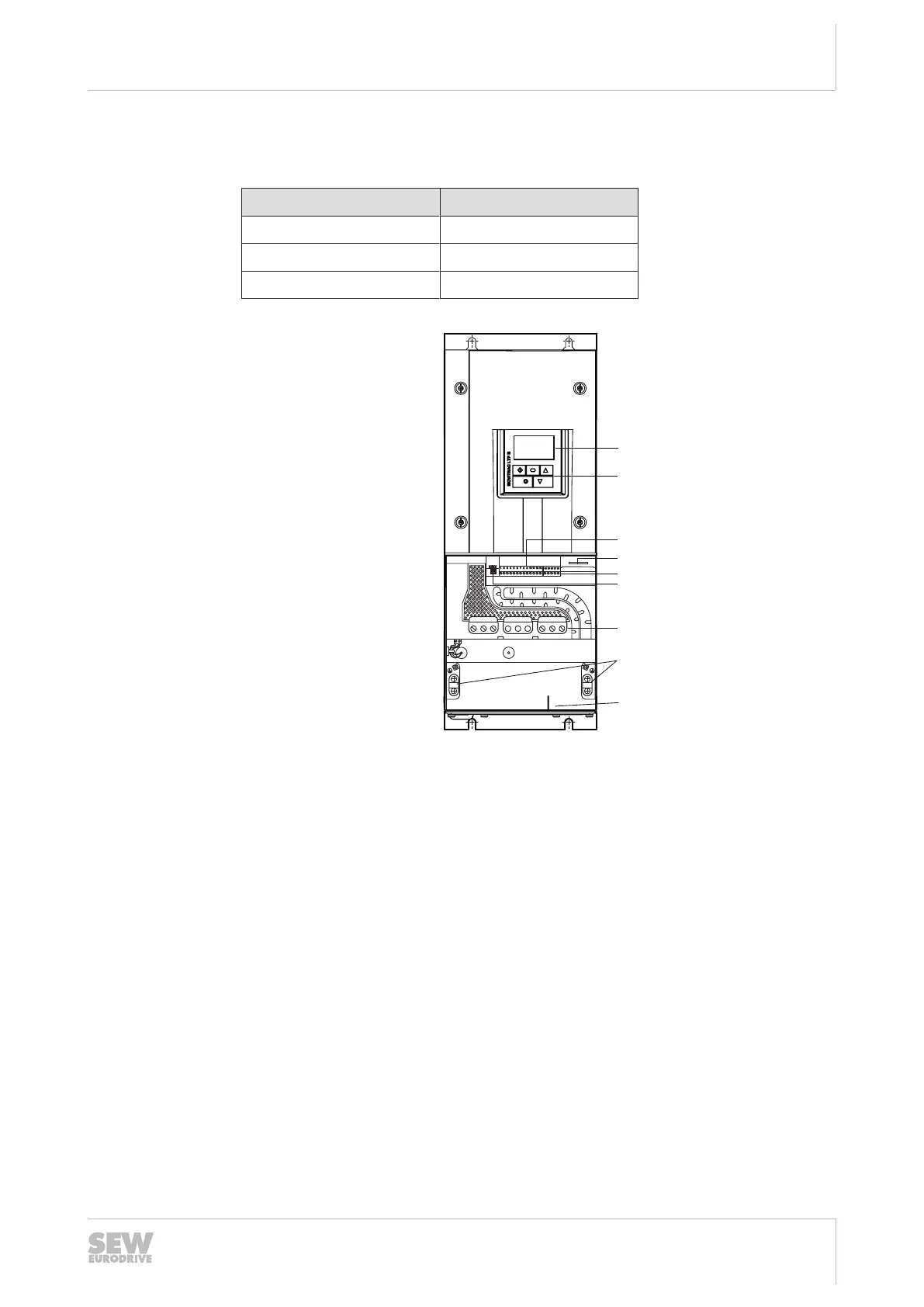

The following inverters have the housing shown below:
Nominal line voltage Power of the inverter
230 V 5.5 – 75 kW
400 V 11 – 160 kW
575 V 15 – 110 kW
L1 +DC U V WBR -DCL2 L3
[1]
[2]
[3]
[5]
[6]
[7]
[4]
[8]
[9]
9007217212704523
[1] Full text display/6-digit 7-segment display
[2] Keypad
[3] Control terminal strip (pluggable)
[4] Option card slot
[5] Relay terminal strip (pluggable)
[6] RJ45 communication socket
[7] Connecting terminal strip PE, L1/L, L2/N, L3, -DC, +, BR, U, V, W
[8] Additional PE connections
[9] Additional stud bolt on the cable entry plate for connection to the PE of the in-
verter
25813137/EN – 08/2018
