5
Startup
User interface
Operating Instructions – MOVITRAC
®
LTP-B
55
5.1.4 Software LT Shell
The LT Shell software enables an easy and quick startup of the inverters. It is avail-
able for download on the SEW‑EURODRIVE website. After the installation, perform
software updates on a regular basis.
In combination with the engineering package (cable set C) and the USB11A interface
adapter, the inverter can be connected to the software.
Maximum 63 inverters can be connected to an LT Shell in a network.
The software can be used to carry out the following tasks:
• Observe, upload and download parameters.
• Save parameter settings.
• Firmware update (manual and automatic).
• Export inverter parameters to Microsoft
®
Word.
• Monitor the state of the inputs and outputs and the motor.
• Control inverter/manual mode.
• Scope.

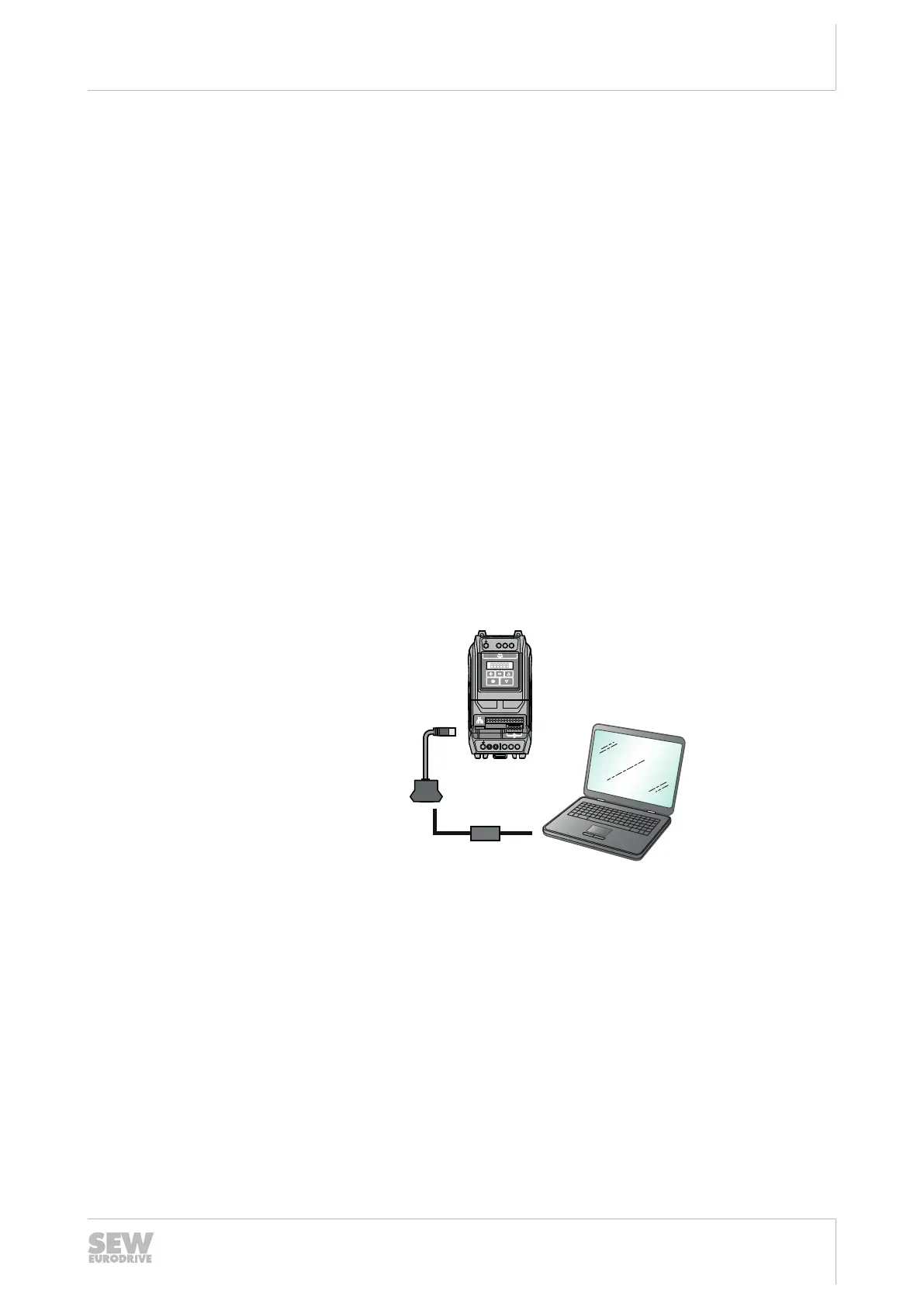

Connection to LT Shell
The connection is performed via an RS485 interface (USB11A + PC engineering
package) or via Bluetooth
®
(parameter module).
RS485
MOVITRAC
®
LT
L1/L L2/N
L3
+ BR U V
W
1 2 3 4 5 6 7 8 9 10 1112 13
14 15 16
17
18
SEW
LTP-B
[2]
[7]
[6]
[8]
[5]
9288836235
[2] RJ45 to RJ45 cable [7] Cable USB A-B
[5] RJ10 to RJ10 cable [8] RJ adapter (2 x RJ45, 1 x RJ10)
[6] USB11A
25813137/EN – 08/2018
