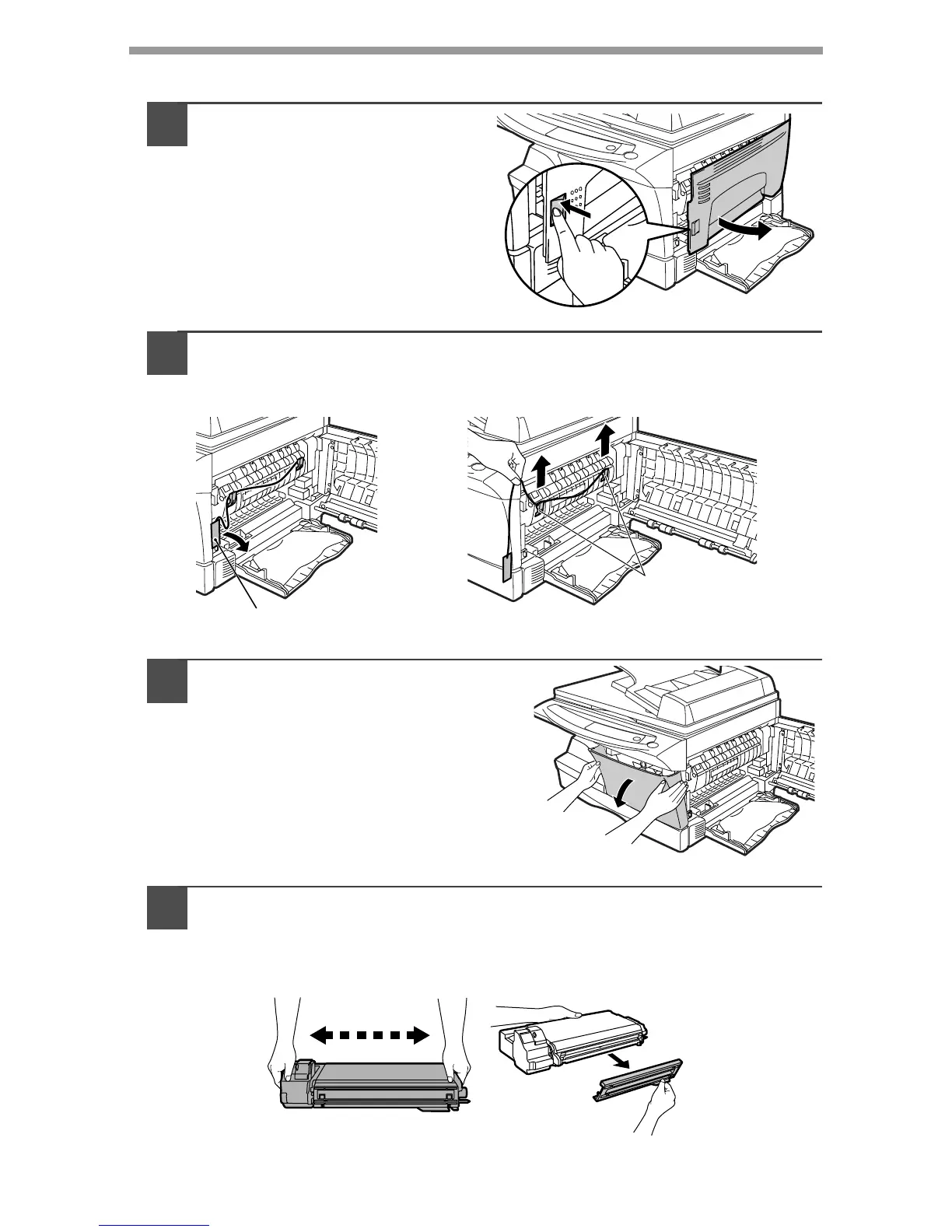

INSTALLING THE TD CARTRIDGE
1
Open the multi-bypass tray
(AL-1225, p.17), and then
open the side cover.
2
Remove the CAUTION tape from the front cover and remove the
two protective pins from the fusing unit by pulling the strings
upward one at a time.
3
Push gently on both sides of the
front cover to open the cover.
4
Remove the TD cartridge from the bag. Remove the protective
paper. Hold the cartridge on both sides and shake it
horizontally four or five times. Hold the tab of the protective
cover and pull the tab to your side to remove the cover.
CAUTION tape
Protective pins
4 or 5 times
