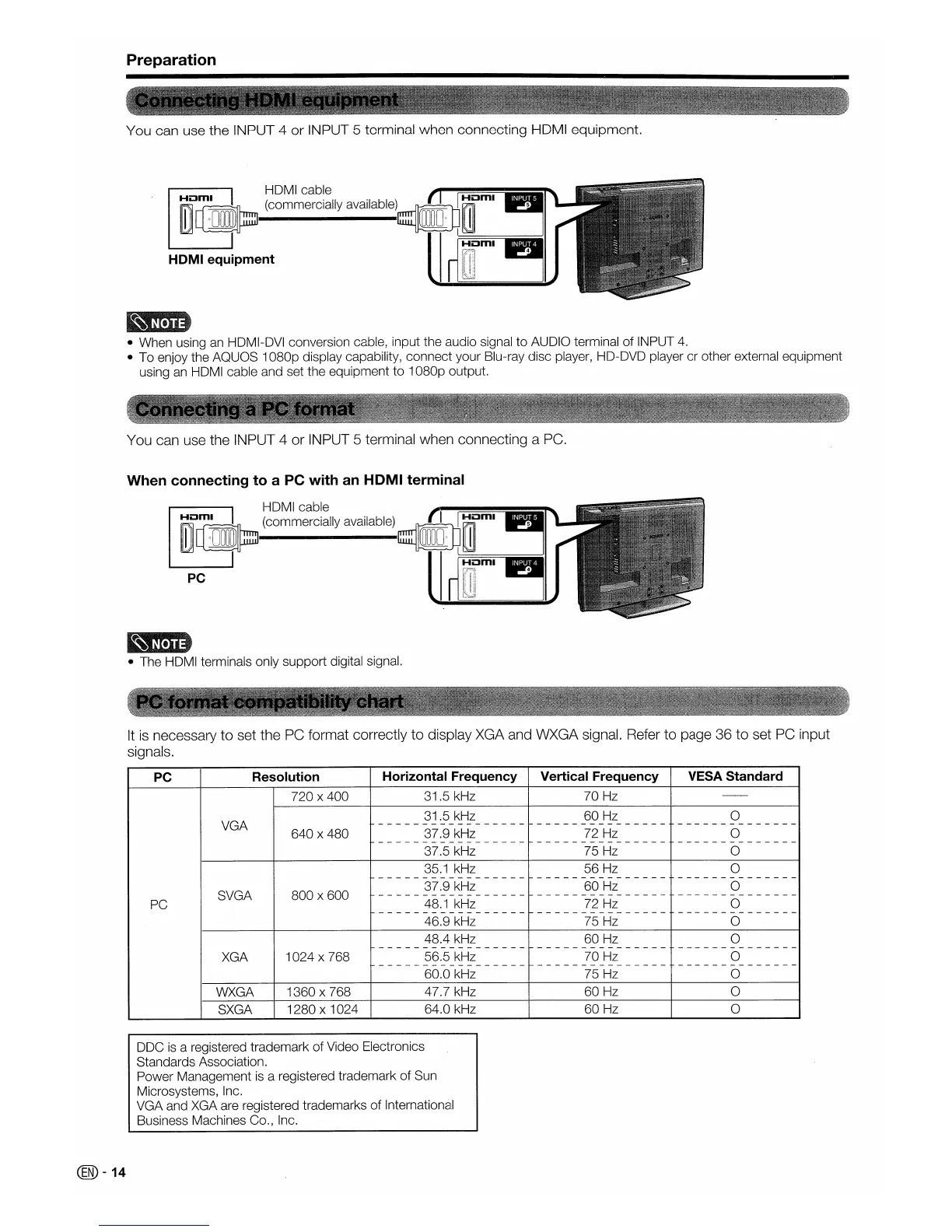

Preparation
You can use the INPUT 4 or INPUT 5 terminal when connecting HDMI equipment.
HOMI equipment
• When using
an
HDMI-DVI conversion cable, input the audio signal to AUDIO terminal of INPUT
4.
• To enjoy the AQUOS
1080p
display capability, connect your Blu-ray disc player, HD-DVD player or other external equipment
using
an
HDMI cable and set the equipment to 1080p output.
You can use the INPUT 4 or INPUT 5 terminal when connecting a
PC.
When connecting to a PC with an
HDMI
terminal
• The HDMI terminals only support digital signal.
It
is
necessary to set the
PC
format correctly to display XGA and WXGA signal. Refer to page 36 to set
PC
input
signals.
PC
Resolution
Horizontal Frequency
Vertical Frequency
VESA Standard
PC
VGA
SVGA
XGA
WXGA
SXGA
720 x 400
640 x 480
800 x 600
1024 x 768
1360 x 768
1280x1024
31.5 kHz
31.5 kHz
-----------------
37.9 kHz
-----------------
37.5 kHz
35.1 kHz
-----------------
37.9 kHz
-----------------
48.1 kHz
-----------------
46.9 kHz
48.4 kHz
-----------------
56.5 kHz
-----------------
60.0 kHz
47.7 kHz
64.0 kHz
70 Hz
60 Hz
---------------
72 Hz
---------------
75 Hz
56 Hz
---------------
60 Hz
---------------
72 Hz
---------------
75 Hz
60 Hz
---------------
70 Hz
---------------
75 Hz
60 Hz
60 Hz
o
--------------
o
--------------
o
o
--------------
o
--------------
o
--------------
o
o
--------------
o
--------------
o
o
o
@-14
DOC
is
a registered trademark
of
Video Electronics
Standards Association.
Power Management
is
a registered trademark of Sun
Microsystems, Inc.
VGA and XGA are registered trademarks of International
Business Machines Co., Inc.
