Controls and Indicators

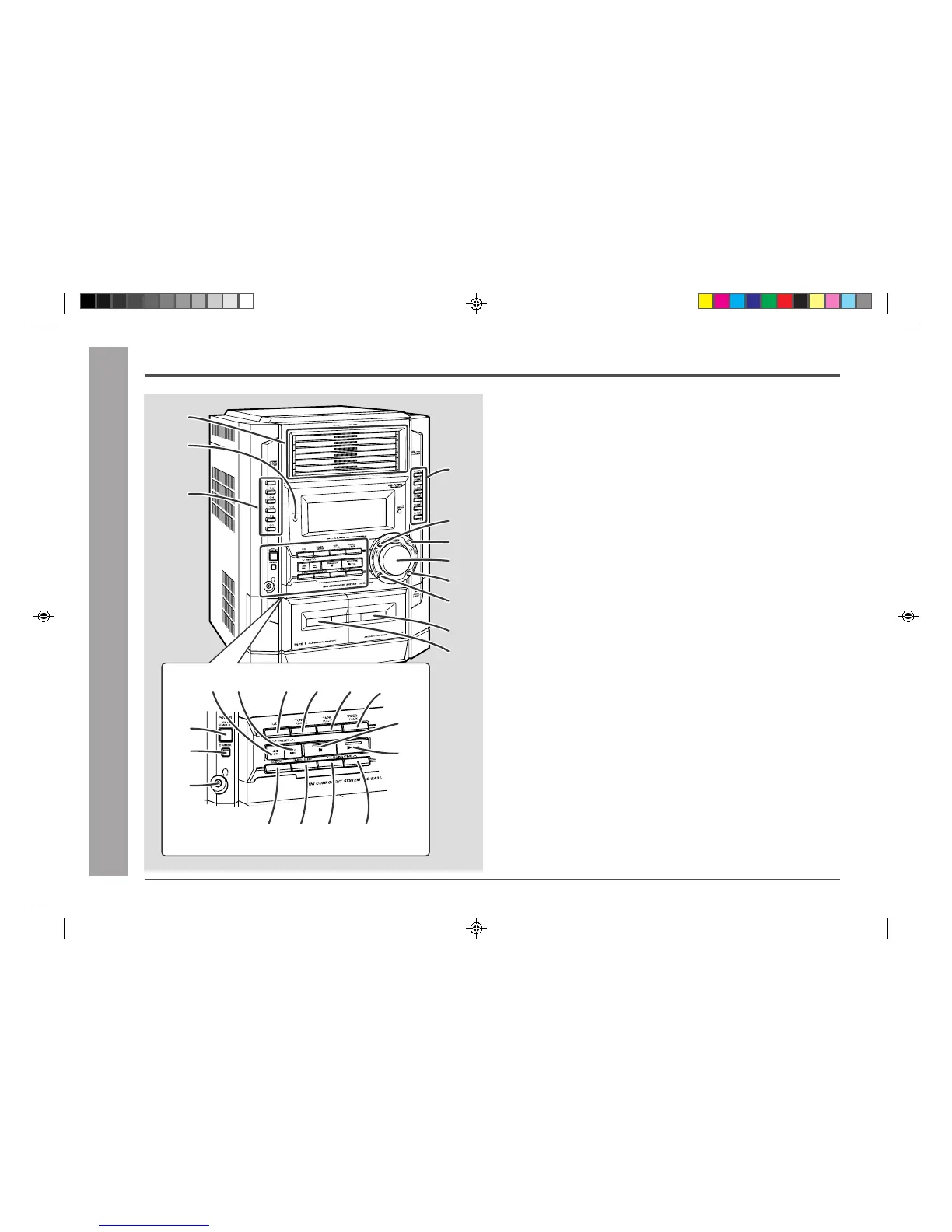

■ Front panel Reference page
01. Disc Trays ........................................................................................ 16
02. Timer Set Indicator.......................................................................... 27
03. CD Direct Play Buttons....................................................... 18, 19, 24
04. CD Eject Buttons............................................................................. 16
05. Memory/Set Button .............................................................. 15,19, 21
06. Equalizer Mode Select Button........................................................14
07. Volume Control................................................................................ 14
08. Extra Bass/Demo Mode Button................................................13, 14
09. Tape 2 Record Pause Button .............................................. 23, 24, 25
10. Tape 2 Cassette Compartment.................................................22, 25
11. Tape 1 Cassette Compartment.................................................22, 25
12. CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down Button .................................................17, 21, 22
13. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up Button ...................................................... 17, 21, 22
14. CD Button .................................................................................. 16, 24
15. Tuner (Band) Button ....................................................................... 20
16. Tape (1
V V
V V
V 2) Button .................................................................. 22, 25
17. Video/Auxiliary Button.............................................................. 26, 28
18. Power On/Stand-by Button ................................................15, 26, 30
19. Dimmer Button ................................................................................ 13
20. Headphone Jack.............................................................................. 28
21. CD or Tape Stop Button (with Indicator) .................................17, 22
22. CD Play or Repeat, Tape Play Button (with Indicator) ...... 17, 18, 22
23. Clock Button .............................................................................. 15, 26
24. Timer/Sleep Button ................................................................... 26, 27
25. Tuning and Time Down Button .................................................15, 20
26. Tuning and Time Up Button...................................................... 15, 20
21
22
12
26252423
13 14 15 16 17
18
19
20
1
2
3
4
5
6
7
8
9
10
11
General Information
– Controls and Indicators –
■ Description of remote control (See page 8.)
