19
LC-40LE730
LC-46LE730
1. Removing of major Parts 40” (Continued)
LC-40L*73*E*
4 / 5
Service Manual

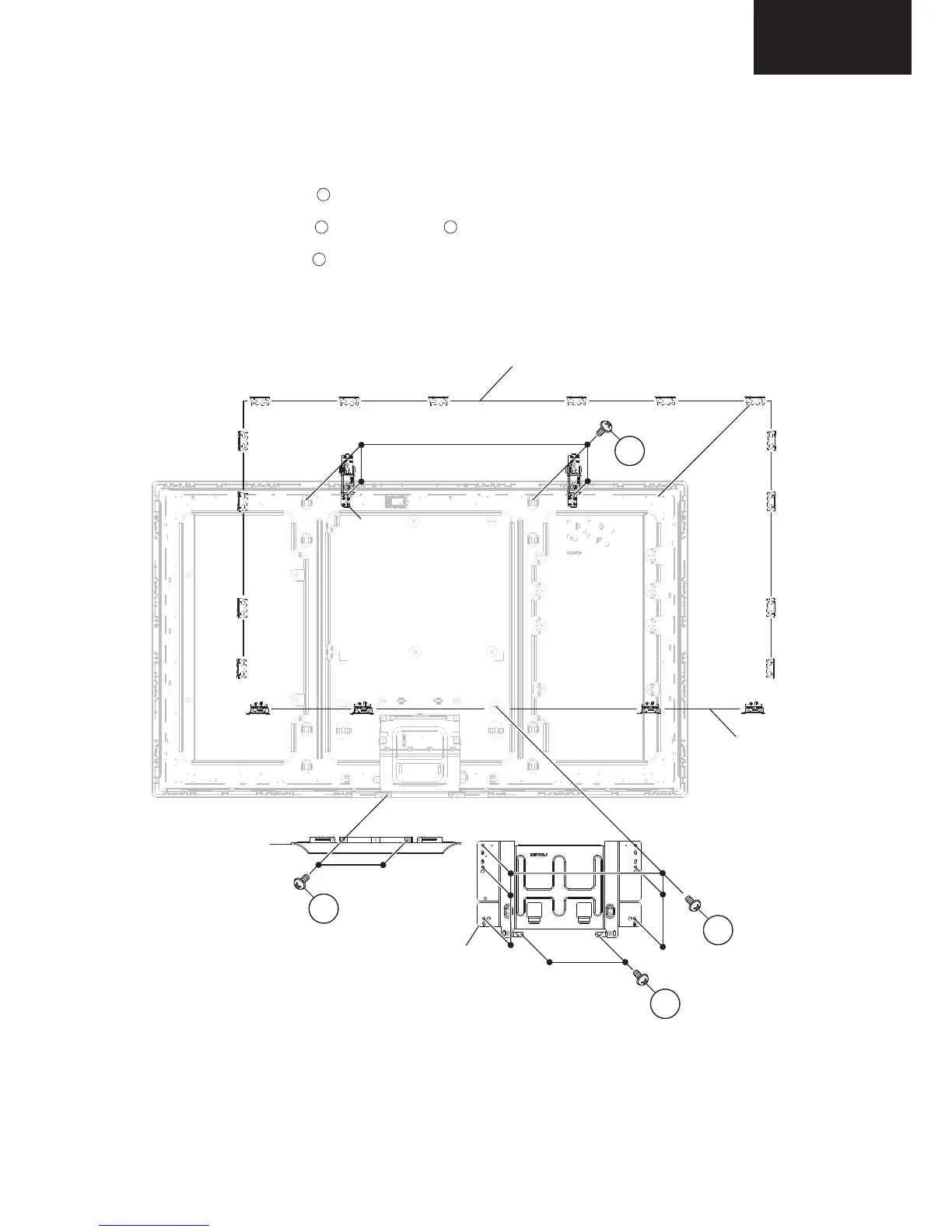

10. Remove the 14 PANEL brackets (top and side) and 4 PANEL brackets bottom.
11. Remove the 4 lock screws and detach the METAL brackets top.
12. Remove the 6 lock screws and 2 lock screws and detach the STAND bracket.
13. Remove the 2 lock screws and detach the CONTROL BUTTON unit.
11
12
14
13
CONTROL
BUTTON
unit
PANEL brackets (top and side)
PANEL brackets
bottom
METAL
brackets
top
11
STAND
bracket
12
13
14
