CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-40LE820E/LU820E)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the Support Cover .
2. Remove the 4 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC wire and detach the AC Cord .
5. Remove the 4 lock screws , 4 lock screws , 1 lock screw and 12 lock screws and detach the Rear Cabinet Ass’y .

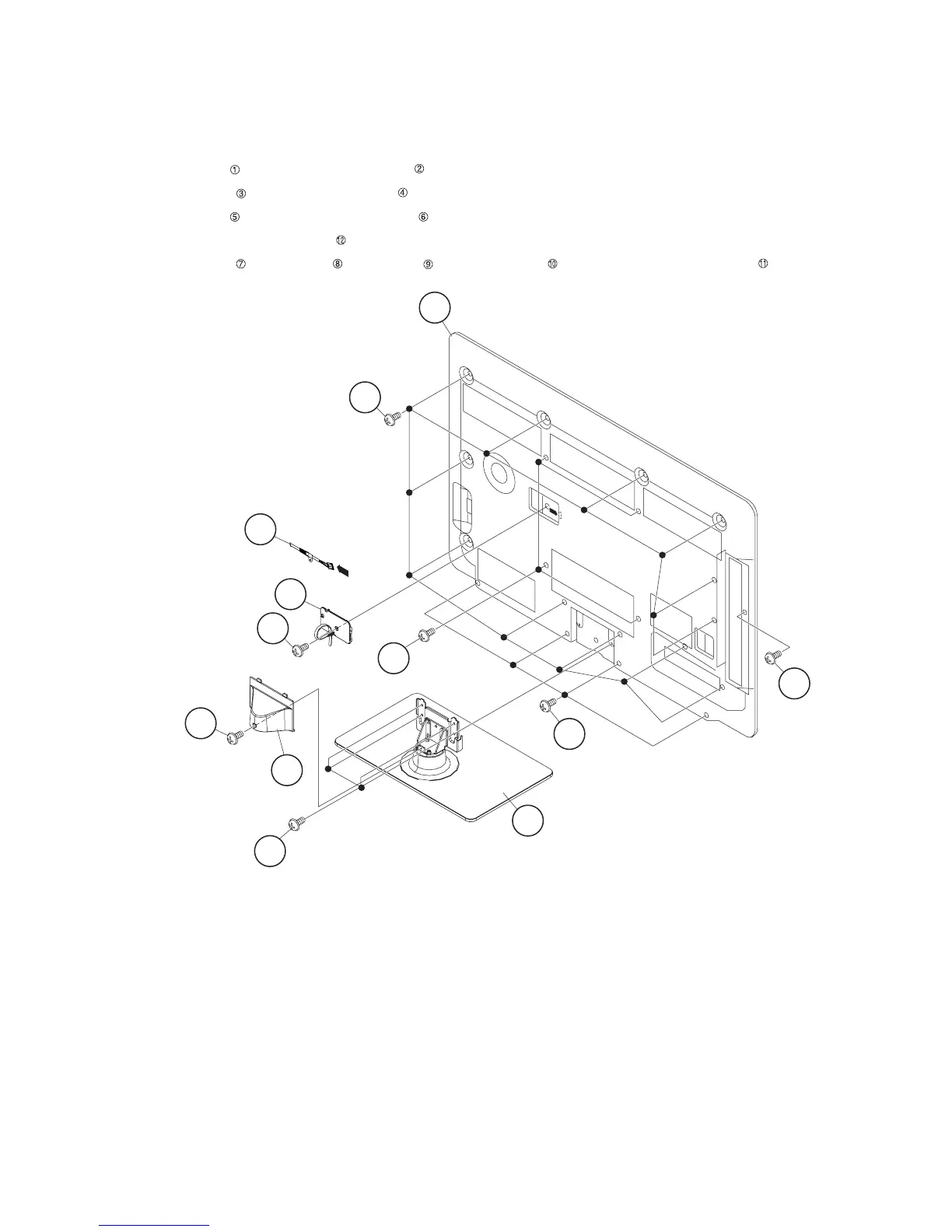

Rear Cabinet Ass'y
4
Stand Unit
2
Support Cover
6AC Cord Cover
12AC Cord
10
11
5
8
3
1
7
9
[AC]
[AC]
