Sharp LC-40LE820E - Removing of MAIN Unit, POWER Unit, Woofer, Stand Angle

LC-40/46/52LE820E, LC-40/46LU820E
4 – 4

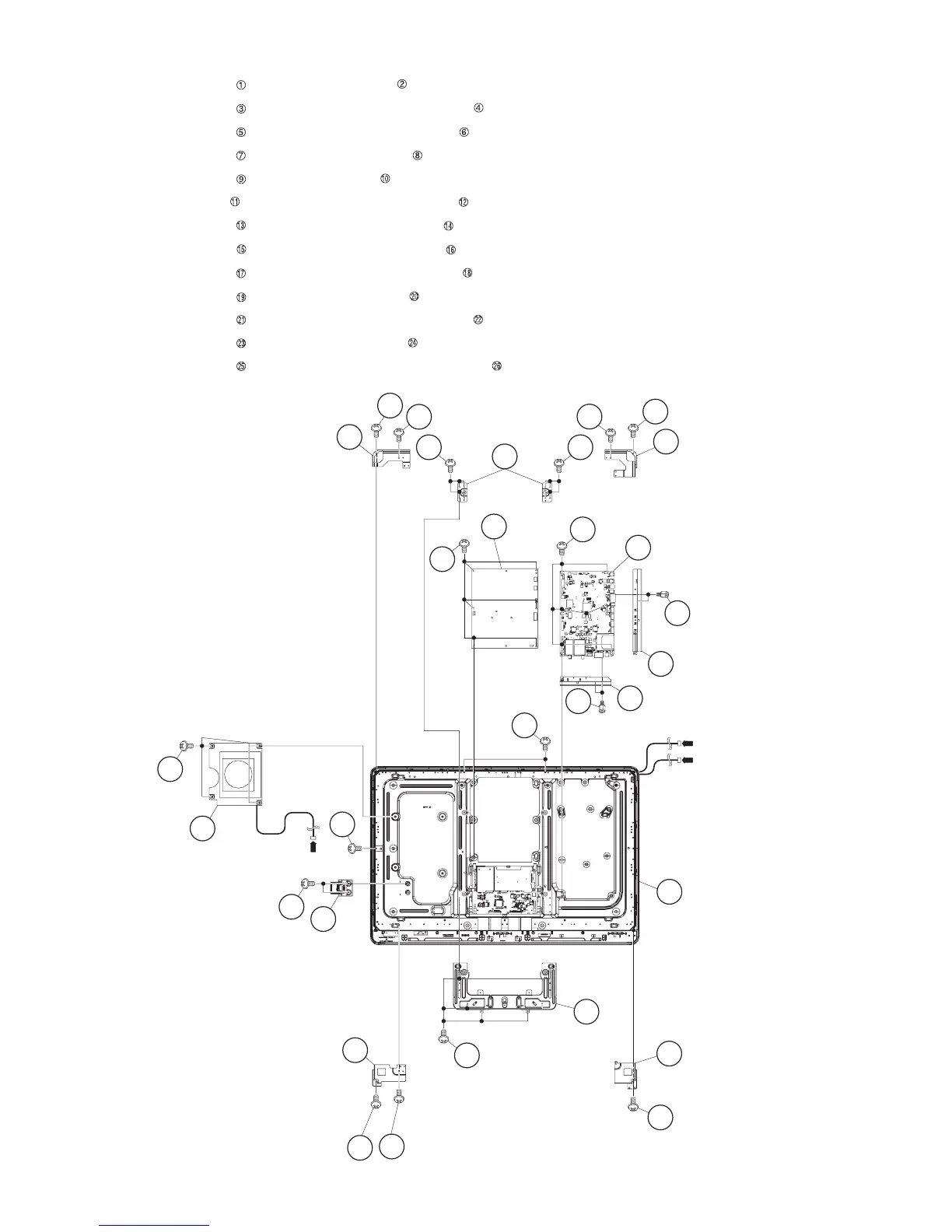

4. Removing of MAIN Unit, POWER Unit, Woofer, Stand Angle, 40” LCD Panel Module Unit.
1. Remove the 7 lock screws and detach the MAIN Unit .
2. Remove the 2 lock screws and detach the Terminal Angle (Bottom) .
3. Remove the 2 lock screws and detach the Terminal Angle (Side) .
4. Remove the 6 lock screws and detach the POWER Unit .
5. Remove the 4 lock screws and detach the Woofer .
6. Remove the 1 lock screw and detach the LCD Angle (Bottom-R) .
7. Remove the 2 lock screws and detach the LCD Angle (Top-L) .
8. Remove the 2 lock screws and detach the LCD Angle (Top-R) .
9. Remove the 2 lock screws and detach the LCD Angle (Bottom-L) .
10.Remove the 8 lock screws and detach the VESA Angle .
11.Remove the 2 lock screws and detach the ECO Switch with Holder .
12.Remove the 6 lock screws and detach the Stand Angle .
13.Remove the 3 lock screws and detach the 40” LCD Panel Module Unit .
8
19
20
19
VESA Angle
7
25
25
40" LCD Panel
Module Unit
[L1]
[L2]
23
24
26
Stand
Angle
12
11
LCD Angle
(Bottom-R)
18
17
17
LCD Angle
(Bottom-L)
21
22
ECO Switch
with Holder
9
10
Woofer
[SB]
5
6
Terminal Angle
(Side)
3
4
Terminal Angle
(Bottom)
2 MAIN Unit
1
14LCD Angle
(Top-L)
13
13
16 LCD Angle
(Top-R)
15
15
